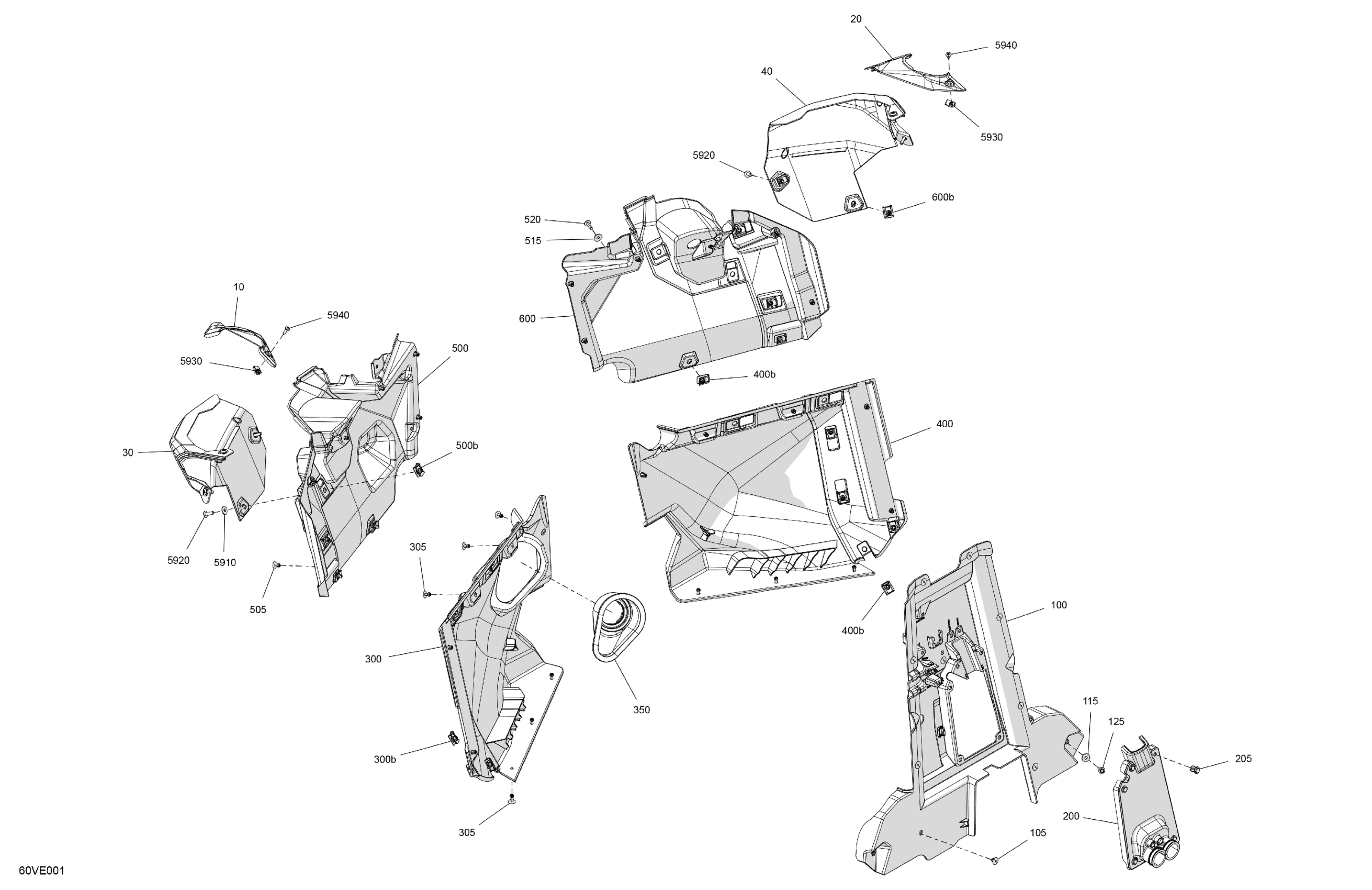

Can-Am CE - Maverick R MAX - 996NT2 - XRS STD - 7DSM - Timeless Black Metallic - 77" Width, 2025 Cab Interior - Firewall Diagram

LH Front Cage Trim

707901084

$35.35

RH Front Cage Trim

707901085

$35.35

LH Front Cover

707901062

$27.66

RH Front Cover

707901063

$27.66

Central Front Baffle

707900906

$50.74

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

Stainless Steel Flat Washer

234062670

$1.74

Screw PT Type K-50 X 16

250000959

$1.74

Grommet

707900907

$17.66

Tuflok Plastic Rivet

293150230

$1.21

LH Front Deflector Ass'y | Includes 300 to 300b

707901173

$50.74

Panel Nut M6 X 1.0

250100208

$1.07

Black, Ornit Rivet 3/16 X ,800

293150306

$1.08

Steering Column Trim

707900942

$12.91

RH Front Deflector Ass'y | Includes 400 to 400b

707901174

$50.74

Panel Nut M6 X 1.0

250100208

$1.07

LH Front Baffle Ass'y | Includes 500 to 500b

707901189

$54.58

Panel Nut M6 X 1.0

250100208

$1.07

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

Stainless Steel Flat Washer

234062670

$1.74

Torx Screw M6 X 20

250000722

$1.34

RH Front Baffle Ass'y | Includes 600 to 600b

707901190

$54.58

Panel Nut M6 X 1.0

250100208

$1.07

Stainless Steel Flat Washer

234062670

$1.74

Stainless Steel Flat Washer

234062670

$1.74

Torx Screw M6 X 20

250000722

$1.34

Panel Nut M5 X 0.8

250000958

$3.48

Torx Screw M5 X 14

250000742

$1.20
