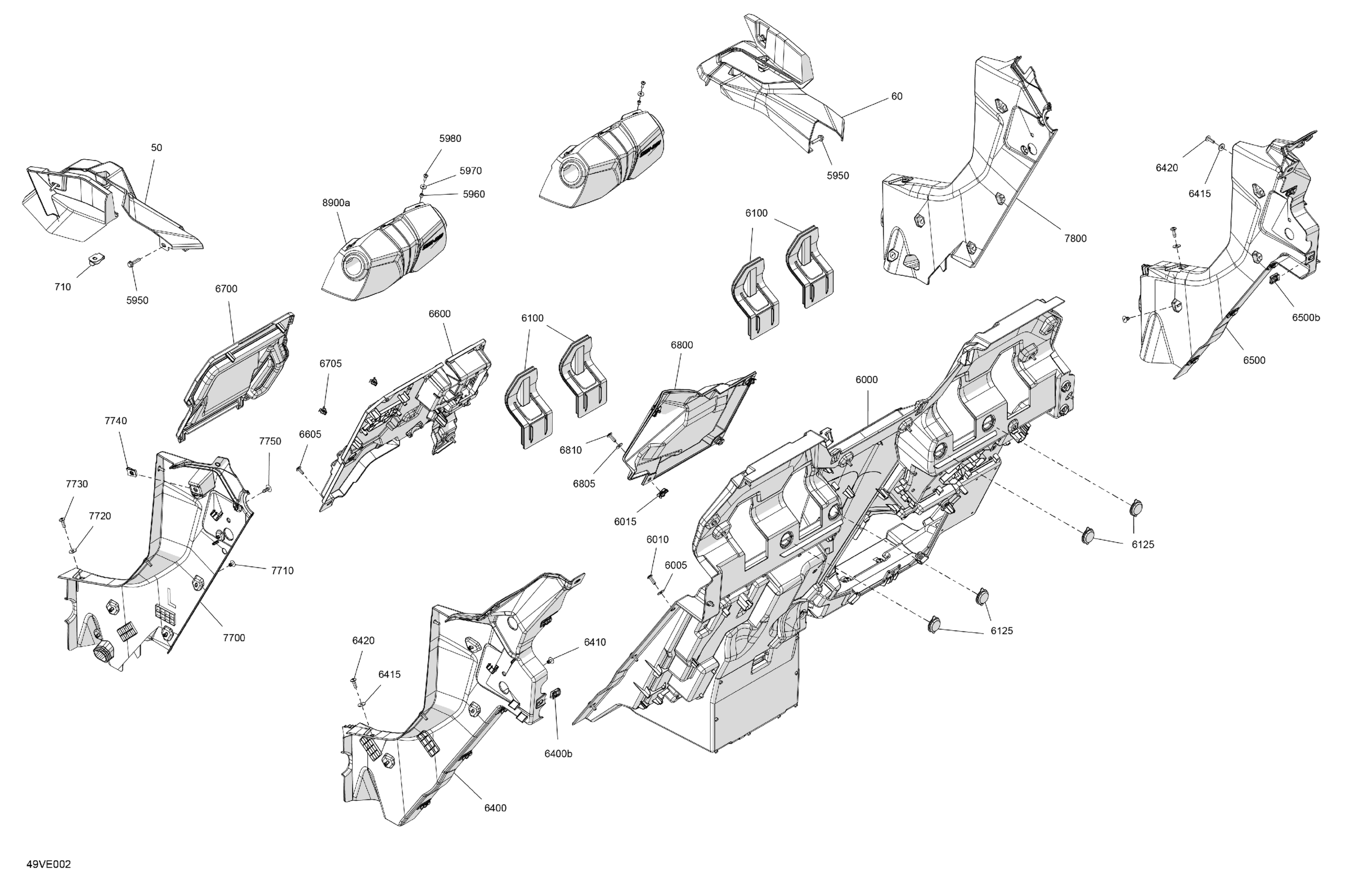

Can-Am CE - Maverick R MAX - 996NT2 - XRS STD - 7DSM - Timeless Black Metallic - 77" Width, 2025 Cab Interior - Back Wall Diagram

Description

Price

LH Rear Cage Panel

708304050

$35.04

RH Rear Cage Panel

708304051

$35.04

710

Panel Nut M6 X 1.0

250100224

$1.96

6000

Rear Baffle

707900910

$206.69

6005

Stainless Steel Flat Washer

234062670

$2.00

6010

Torx Screw M6 X 20

250000722

$1.54

6015

Panel Nut M6 X 1.0

250100208

$1.22

6100

Cap

707901015

$15.64

6125

Plug

293000125

$1.03

6400

LH Rear Baffle Ass'y | Includes 6400 to 6400b

707901175

$49.22

6400b

Panel Nut M6 X 1.0

250100208

$1.22

6410

Black, Pop Rivet 3/16 X ,550

293150292

$0.99

6415

Stainless Steel Flat Washer

234062670

$2.00

6420

Torx Screw M6 X 20

250000722

$1.54

6500

RH Rear Baffle Ass'y | Includes 6500 to 6500b

707901176

$49.22

6500b

Panel Nut M6 X 1.0

250100208

$1.22

6600

Rear Fuse Box Cover

707900944

$34.30

6605

Screw PT Type K-50 X 16

250000959

$2.00

6700

Battery Cover

707901053

$33.55

6705

Clip

517306478

$1.03

6800

RH Rear Access Cover

707900990

$34.30

6805

Stainless Steel Flat Washer

234062670

$2.00

6810

Torx Screw M6 X 20

250000722

$1.54

7700

LH Central Cab Panel

707901035

$47.73

7710

Black, Pop Rivet 3/16 X ,550

293150292

$0.99

7720

Stainless Steel Flat Washer

234062670

$2.00

7730

Torx Screw M6 X 20

250000722

$1.54

7740

Panel Nut M6 X 1.0

250100208

$1.22

7750

Black, Dart

293730011

$0.91

7800

RH Central Cab Panel

707901036

$47.73

5950

Hex Flange Screw M6 X 25

250000841

$7.06

5960

Bushing

293900112

$9.30

5970

Washer M5

250200025

$0.70

5980

Torx Screw K50 X 16

250000720

$1.60

8900a

Foam

707900653

$113.40
