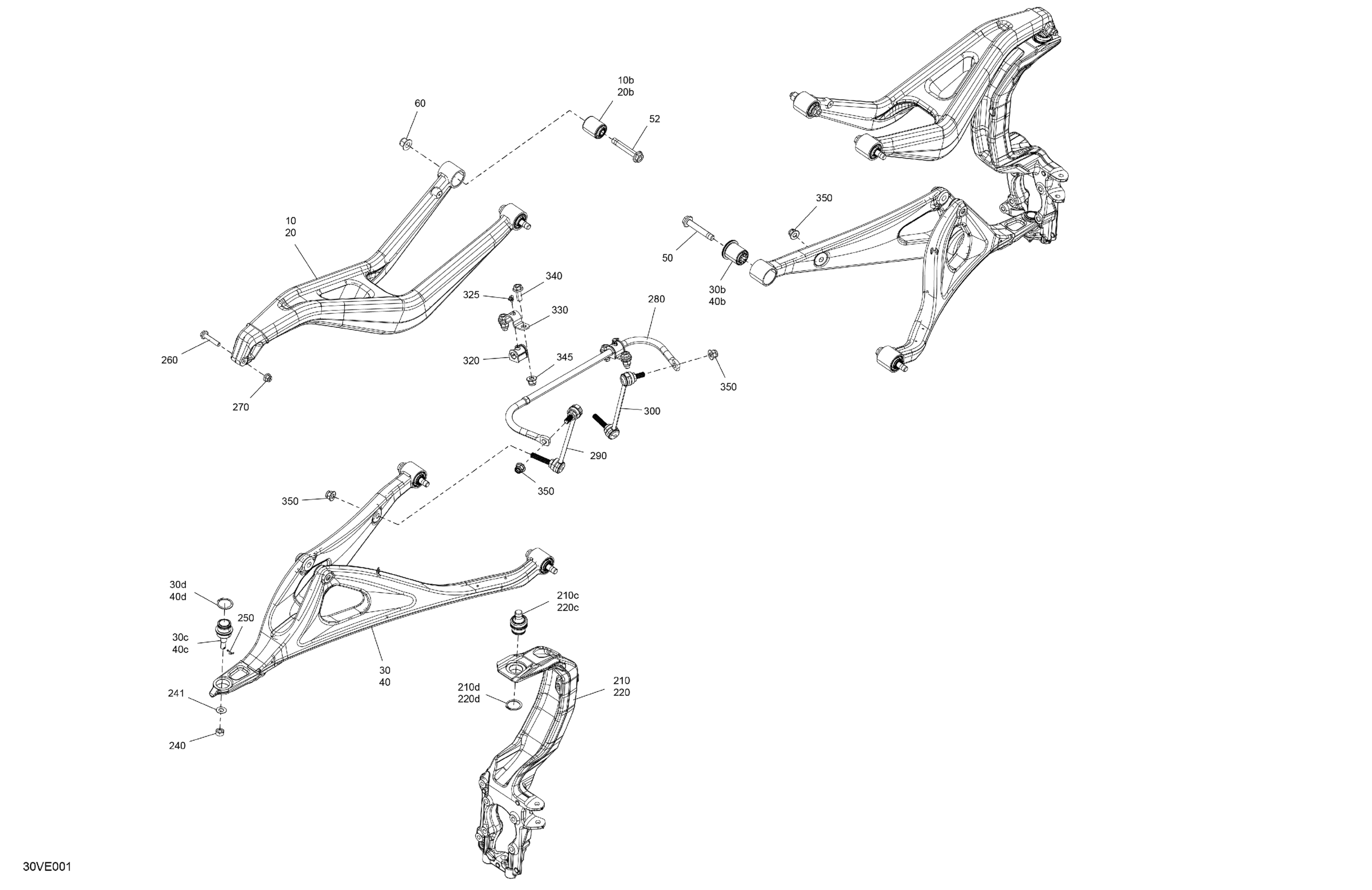

Can-Am CE - Maverick R MAX - 996NT2 - XRS STD - 7DSM - Timeless Black Metallic - 77" Width, 2025 Suspension - Front Components Diagram

Deep Black, LH Upper Suspension Arm Ass'y | Includes 10 to 10b

715010162

$394.00

Suspension Arm Bushing

706205620

$12.67

Deep Black, RH Upper Suspension Arm Ass'y | Includes 20 to 20b

715010163

$394.00

Suspension Arm Bushing

706205620

$12.67

Deep Black, LH Lower Suspension Arm Ass'y | Includes 30 to 30d

715010168

$492.51

Suspension Arm Bushing

706205895

$12.67

Ball Joint

706203084

$34.30

Circlip

293370035

$2.48

Deep Black, RH Lower Suspension Arm Ass'y | Includes 40 to 40d

715010169

$492.51

Suspension Arm Bushing

706205895

$12.67

Ball Joint

706203084

$34.30

Circlip

293370035

$2.48

Hex. Flange Screw Din.6921 M14X2X85

250001176

$6.99

Hex. Flange Screw Din.6921 M14X2X85

250001176

$6.99

Hex. Flange Elastic Nut M14

250001166

$12.06

Deep Black, LH Front Knuckle Ass'y | Includes 210 to 210d

715010180

$492.51

Ball Joint

706202045

$34.30

Circlip

293370035

$2.48

Deep Black, RH Front Knuckle Ass'y | Includes 220 to 220d

715010181

$492.51

Ball Joint

706202045

$34.30

Circlip

293370035

$2.48

Hex Nut M12

250100239

$1.88

Hardened Washer

706200281

$2.69

Cotter Pin

211400017

$0.28

Hex. Flange Screw M10 X 50

207605056

$3.58

Flange Elastic Nut M10

233201466

$3.01

Stabilizer Bar Ass'y

706205633

$138.03

LH Front Stabilizer Link

706205574

$85.04

RH Front Stabilizer Link

706205575

$85.04

Stabilizer Bar Bushing

706205632

$13.52

Grease Fitting

408200700

$3.21

Mounting Clamp

706205649

$6.19

Hex. Flange Screw DIN.6921

250000951

$6.28

Elastic Flange Nut M12

250001195

$2.46

Elastic Flange Nut M12

250001195

$2.46
