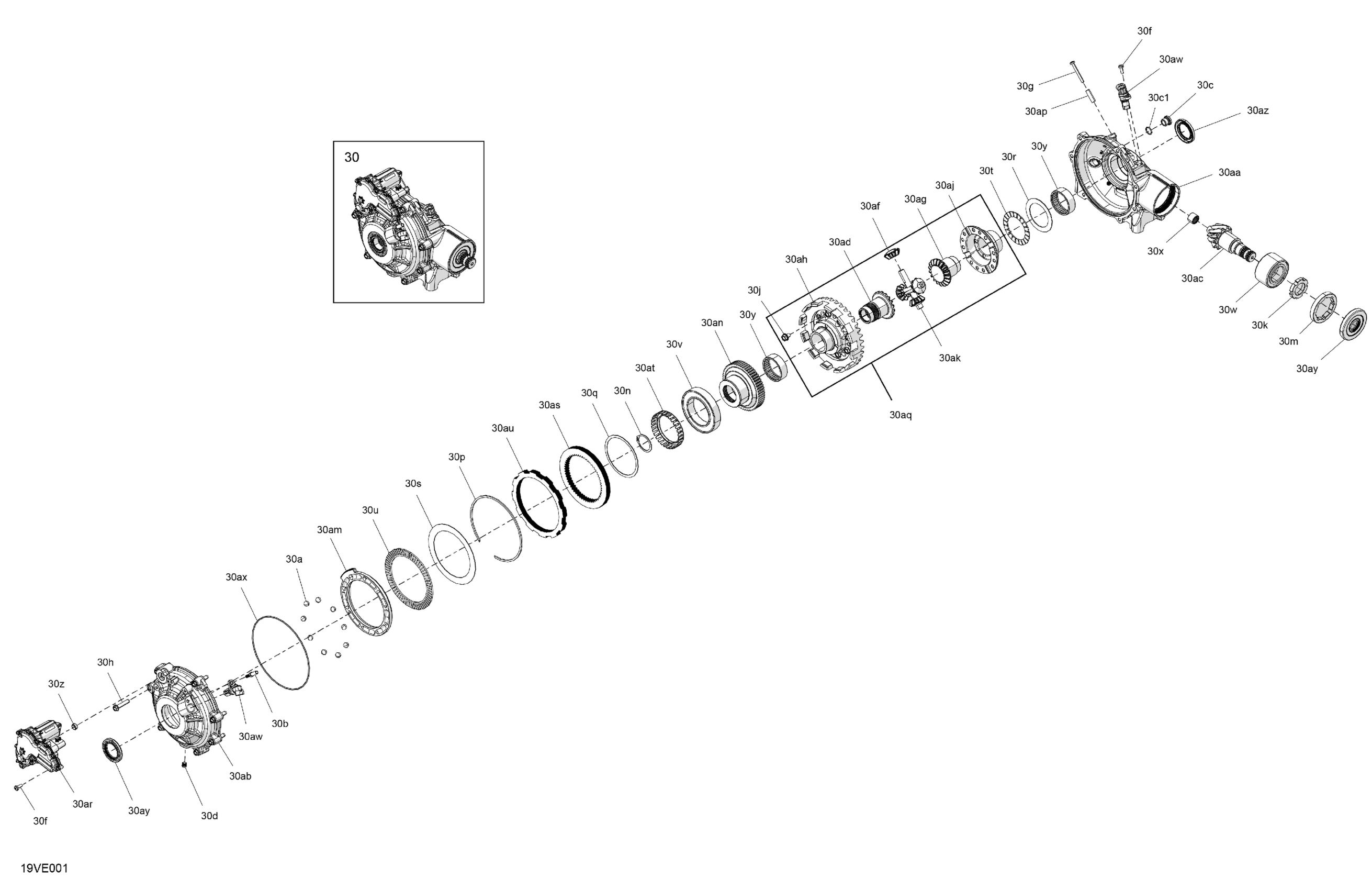

Can-Am CE - Maverick R MAX - 996NT2 - XRS STD - 7DSM - Timeless Black Metallic - 77" Width, 2025 Drive - Front - Differential Parts Diagram

Description

Price

Front Differential Ass'y | Includes 30 to 30az

705403620

$1,697.73

30a

Ball

715900564

$5.04

30b

Vent Hex. Screw M6

715900842

$19.37

30c

Magnetic Plug Drain | Includes 50b to 50b1

705502851

$17.88

30c1

O-Ring

219800486

$8.52

30d

Fill Level Plug M10

715900563

$25.34

30f

Torx Screw M6 X 16

705402845

$9.25

30g

6 Lobe Screw Pan HD M6x1x50

715900844

$10.30

30h

Serrated Screw Flange Hd M81.25x38

715900845

$9.34

30j

Flange HD Screw M10x1.25x12

715900846

$9.40

30k

Pinion Nut M32

715900847

$14.30

30m

Pinion Nut M78

715900848

$22.36

30n

Retaining Ring, SH162

715900849

$12.54

30p

Retaining Ring, CFH-165

715900850

$14.91

30q

Shim 108.6 OD x 96 ID

715900851

$492.51

30r

Bearing Spacer

715900852

$268.63

30s

Thrust Plate

715900853

$184.30

30t

Needel Thrust Bearing 60x85x3

715900854

$27.58

30u

Needel Thrust Bearing 120x155x4

715900855

$56.69

30v

Ball Bearing 6014 70x110x20

715900856

$46.99

30w

Dac Bearing 407440W

715900857

$46.99

30x

Needle Bearing B-1110

715900858

$17.88

30y

Needle Bearing HK-5520

715900859

$17.88

30z

Plain Bearing 12.4x14.4x6

715900860

$40.27

30aa

Machined Case

715900861

$175.34

30ab

Machined Cover

715900862

$188.03

30ac

LH Pinion 10T, Spiral Bevel

715900863

$355.94

30ad

LH Side Gear 18T

715900865

$105.19

30af

Spider Gear 9T

715900866

$41.01

30ag

RH Side Gear 18T

715900867

$94.00

30ah

Gear 36T, Spiral Bevel

715900868

$297.73

30aj

Machined Carrier

715900958

$107.43

30ak

Differential Pin

715900959

$26.84

30am

Ball Ramp

715900870

$81.31

30an

Coupler

715900871

$106.69

30ap

Stand-Off Tube

715900872

$11.84

30aq

Differential Subassembly

715900957

$617.88

30ar

Actuator

715900874

$452.21

30as

Friction Plate Female

715900875

$14.90

30at

Tone Ring 30T

715900876

$16.39

30au

Friction Plate Male

715900877

$17.88

30av

Vent Cap 5/16

715900533

$6.30

30aw

Speed Sensor

715900878

$98.48

30ax

O-Ring

715900749

$10.21

30ay

Seal Triple Lip 27.5x80.0x11.0

715900880

$44.00

30az

Seal Triple Lip 40x60x7

715900881

$44.00
