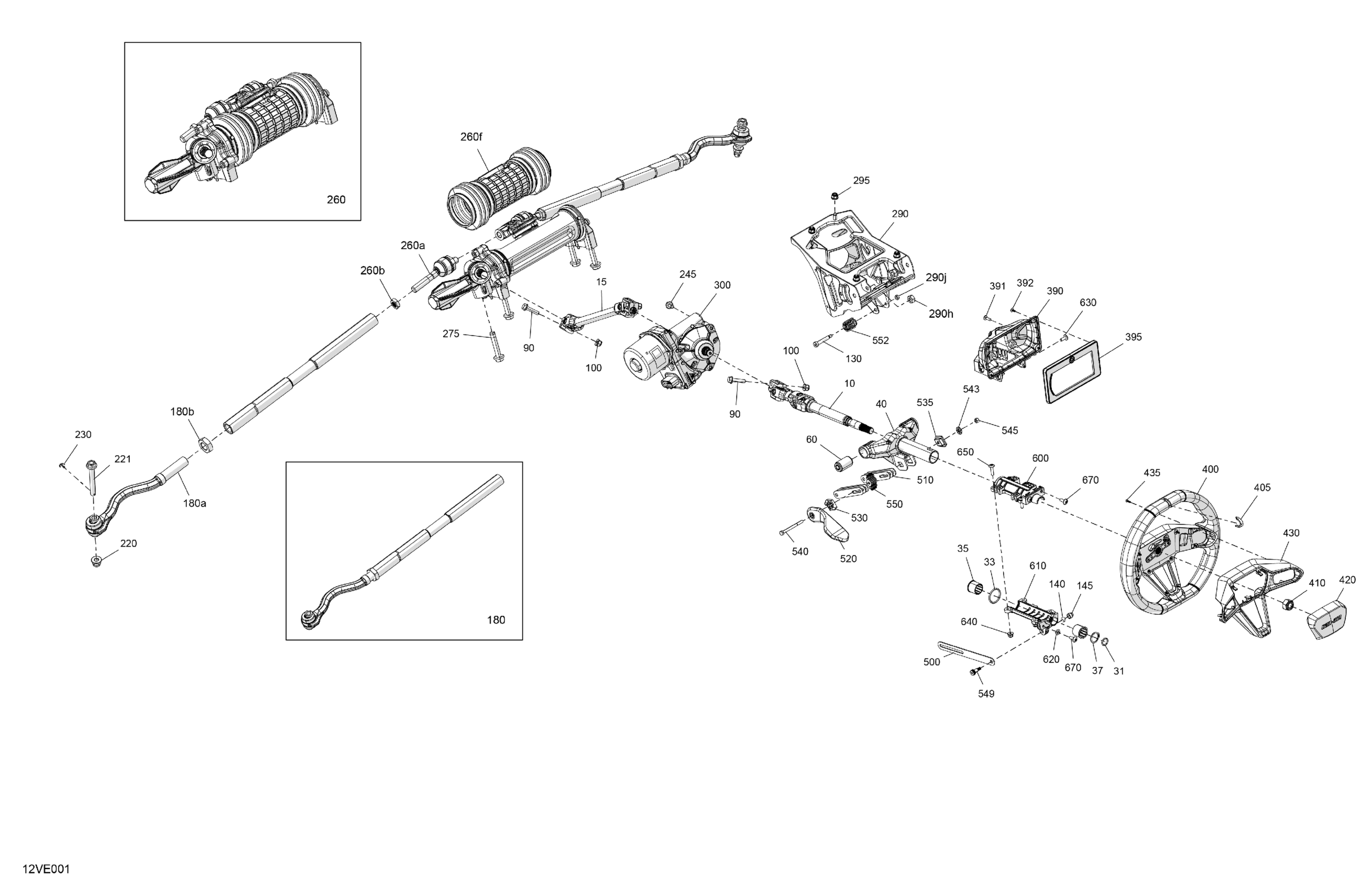

Can-Am CE - Maverick R MAX - 996NT2 - XRS STD - 7DSM - Timeless Black Metallic - 77" Width, 2025 Mechanic - Steering Diagram

#

Description
Price

10

Upper Steering Axle

709402949

$167.13

15

Lower Steering Axle

709402950

$167.13

31

O-Ring

293300144

$3.79

33

O-Ring Seal

709402670

$1.76

35

Steering Bushing

709402642

$3.07

37

External Retaining Ring

709402668

$7.57

40

Steering Wheel Support

709402989

$103.70

60

Suspension Arm Bushing

706005404

$12.67

90

Hex. Flange Screw M8 X 35

250001021

$4.15

100

Hex. Elastic Flange Nut M8

233281416

$1.43

130

Socket Head Shoulder Screw S.Grip

709403007

$8.99

140

Hex. Nut M6 X 1.0 Din 980V

250100237

$1.43

145

Cap

269500806

$2.13

180

Tie Rod Ass'y | Includes 180 to 180b

709403204

$164.15

180a

Ball Joint

709403205

$52.96

180b

Hex Jam Nut M24

715900828

$1.40

220

Elastic Flange Nut M12

250001195

$2.46

221

Hex Cap Screw M12 X 95

250000864

$4.54

230

Cotter Pin

211400017

$0.28

245

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

260

Rack And Pinion Steering | Includes 260 to 260f

709403206

$433.55

260a

Inner Ball Joint

715900783

$50.72

260b

Hex Jam Nut

715900784

$10.34

260f

Boot Rack

709402442

$50.72

275

Hex Flange Screw Din.6921 M12X1.75X6

250001203

$6.99

290

Power Steering Support | Includes 290 to 290j

709402622

$49.22

290h

Hexagonal Nut

233701400

$0.55

290j

Hexagonal Nut M6

232061404

$0.31

295

Hex. Flange Elastic Nut M8

233281434

$2.00

300

Power Steering Ass'y

709403211

$1,971.61

390

Gauge Support

709402651

$17.13

391

Torx Screw K50 X 16

250000720

$1.60

392

Torx-Truss Screw K40 X 10

250001034

$0.93

395

Gauge Trim

709402688

$12.61

400

Steering Wheel

709402549

$447.73

405

Upper Steering Wheel Trim

709402803

$2.89

410

Elastic Lock Nut M16

232511414

$1.88

420

Central Steering Wheel Trim

709402614

$13.55

430

Steering Wheel Trim

709402711

$12.79

435

Screw Plastite Torx K30 X 12

250001234

$0.54

500

Lock Plate

709402984

$4.31

510

Lock Plate

709402983

$4.31

520

Latch Lever

709403259

$19.37

530

Locking Cam

709402639

$4.93

535

Latch Stopper

709402658

$4.31

540

Hex. Screw S.Grip M6 X 70

207267044

$2.39

543

Thrust Washer

709403015

$12.30

545

Hex. Flange Nut M6

233061414

$1.54

549

Socket Head Shoulder Screw

709402676

$9.45

550

Washer

709402660

$3.93

552

Lower Spacer

709402709

$9.73

600

Upper Module Housing

709402643

$20.12

610

Under Module Housing

709402644

$20.12

620

Square Nut M6

232862412

$1.36

630

Tork Screw M6 X 16

250000534

$2.00

640

Hex. Flange Elastic Nut M6

233261494

$1.45

650

Torx Screw M6 X 25

250000758

$2.00

670

Hex. Torx Screw M6 X 20

250000984

$1.49
