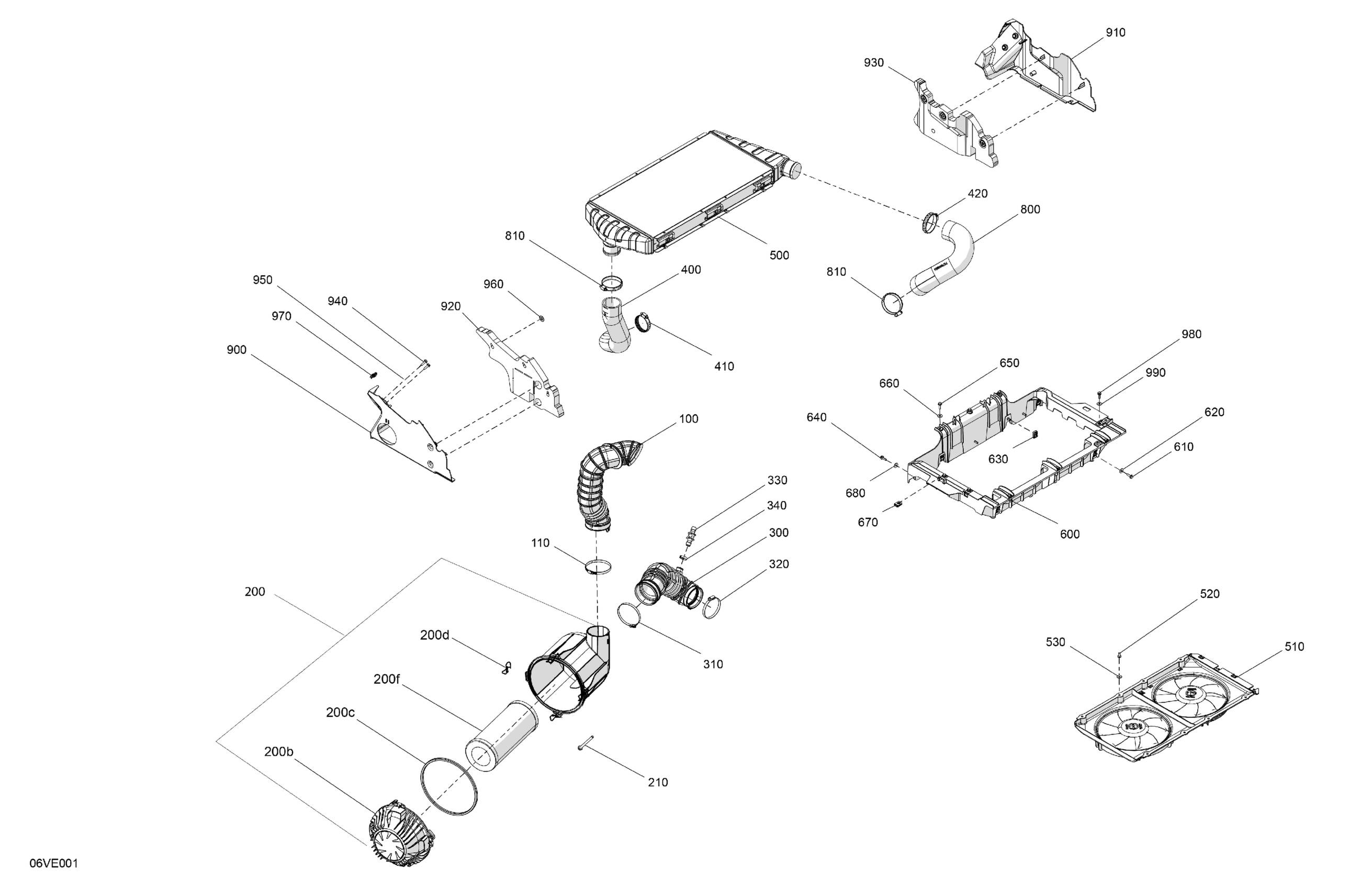

Can-Am CE - Maverick R MAX - 996NT2 - XRS STD - 7DSM - Timeless Black Metallic - 77" Width, 2025 Engine - Air Intake Diagram

Description

Price

100

Hose OUT

706600403

$167.13

110

Norma Clamp

514052924

$12.15

200

Intake Silencer | Includes 200 to 200f

707801282

$115.64

200b

Intake Silencer Cover

707800950

$82.06

200c

Intake Silencer Gasket

707800951

$20.12

200d

Clip

293730086

$8.24

200f

Air Filter

715900422

$49.22

210

Hex. Flange Screw M8 X 90

207689044

$7.04

300

Compressor Hose

707800953

$147.73

310

Norma Clamp

514052924

$12.15

320

Clamp

293650325

$15.64

330

Fitting

293710163

$11.57

340

Oeticker Gear Clamp, 25.6-706R

509000442

$4.73

400

Hose

707800955

$103.70

410

Mounting Clamp

293650320

$15.64

420

Mounting Clamp

293650316

$14.48

500

Intercooler

707801009

$582.81

510

Fan Ass'y

707801008

$371.61

520

Torx Truss Screw M6 X 16

250000721

$1.60

530

Stainless Steel Flat Washer

234062670

$2.00

600

Intercooler Support

707800956

$110.42

610

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.00

620

Stainless Steel Flat Washer

234062670

$2.00

630

Panel Nut M6 X 1.0

250100208

$1.22

640

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.00

650

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.00

660

Stainless Steel Flat Washer

234062670

$2.00

670

Panel Nut M6 X 1.0

250100208

$1.22

680

Stainless Steel Flat Washer

234062670

$2.00

800

Hose

707800954

$162.66

810

Mounting Clamp

293650316

$14.48

900

LH Baffle

707801045

$23.85

910

RH Baffle

707801046

$23.85

920

LH Acoustic Insulation

705017032

$10.82

930

RH Acoustic Insulation

705017033

$40.27

940

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.00

950

Stainless Steel Flat Washer

234062670

$2.00

960

Push Nut

508000853

$1.87

970

Panel Nut M6 X 1.0

250100208

$1.22

980

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.00

990

Stainless Steel Flat Washer

234062670

$2.00
