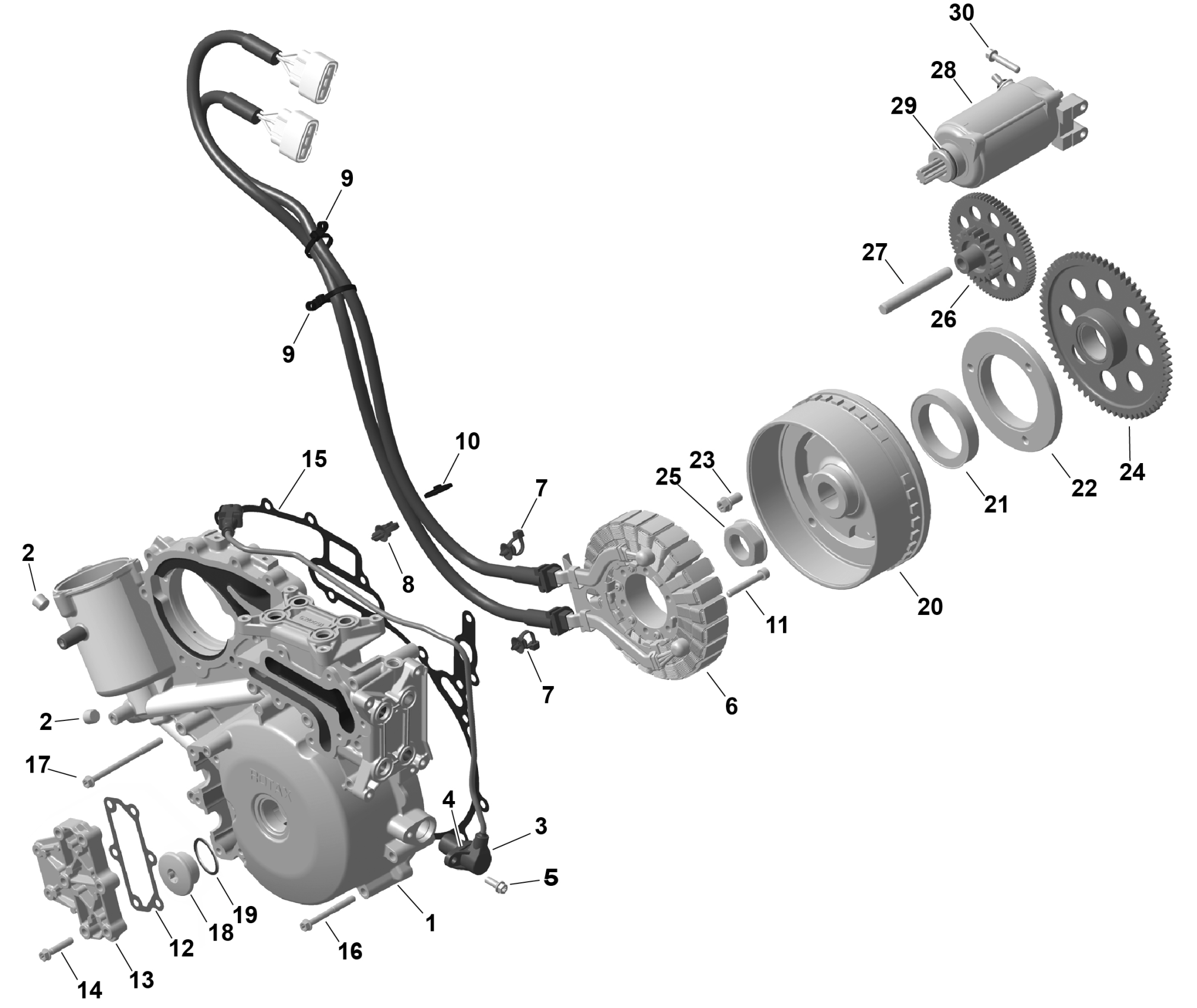

Can-Am CE - Maverick R MAX - 996NT2 - XRS STD - 7DSM - Timeless Black Metallic - 77" Width, 2025 01- ROTAX - Magneto and Electric Starter Diagram

#

Description

Price

1

Ignition Cover Ass'y | Includes 1-2

420686853

Unavailable

2

Plug Screw M12x1,5

420840658

Unavailable

3

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

Unavailable

4

O-Ring

420431580

Unavailable

5

Torx Flange Screw M6 X 16

420440162

Unavailable

6

Stator Ass'y 14V | Includes 6-9

420293982

Unavailable

7

Tie-Rap With Mount

420951341

Unavailable

8

Clipping Tie-Rap

710003840

Unavailable

9

Tie Rap

515178191

Unavailable

10

Tie Rap

420866714

Unavailable

11

Allen Screw M6 X 40

420241956

Unavailable

12

Gasket

420230029

Unavailable

13

Cover

420810472

Unavailable

14

Torx Flange Screw M6 X 30

420440647

Unavailable

15

Gasket

420230017

Unavailable

16

Torx Flange Screw M6 X 55

420440702

Unavailable

17

Torx Flange Screw M6 X 85

420641228

Unavailable

18

Plug Screw M30X1.5 | Includes 18-19

420641172

Unavailable

19

O-Ring DIN 3771-28X2.6n NBR70 Cylinder Block Plug Screws

420631300

Unavailable

20

MAG Flywheel W. Trigger Wheel Ass'y

420665232

Unavailable

21

Sprag Clutch

420659113

Unavailable

22

Sparg Clutch Housing

420659263

Unavailable

23

Torx Flange Screw M8 X 16

420440854

Unavailable

24

Free Wheel Gear Ass'y | Including 234060 Free Wheel Gear 67T and 632490 Needle Bearing 20x29x18

420634316

Unavailable

25

Hex Nut

420242021

Unavailable

26

Starter Double Gear 19/77 Teeth

420834911

Unavailable

27

Needle Pin

420229307

Unavailable

28

Electric Starter Ass'y

420294806

Unavailable

29

O-Ring

420250145

Unavailable

30

Torx Flange Screw M6 X 30

420440647

Unavailable
