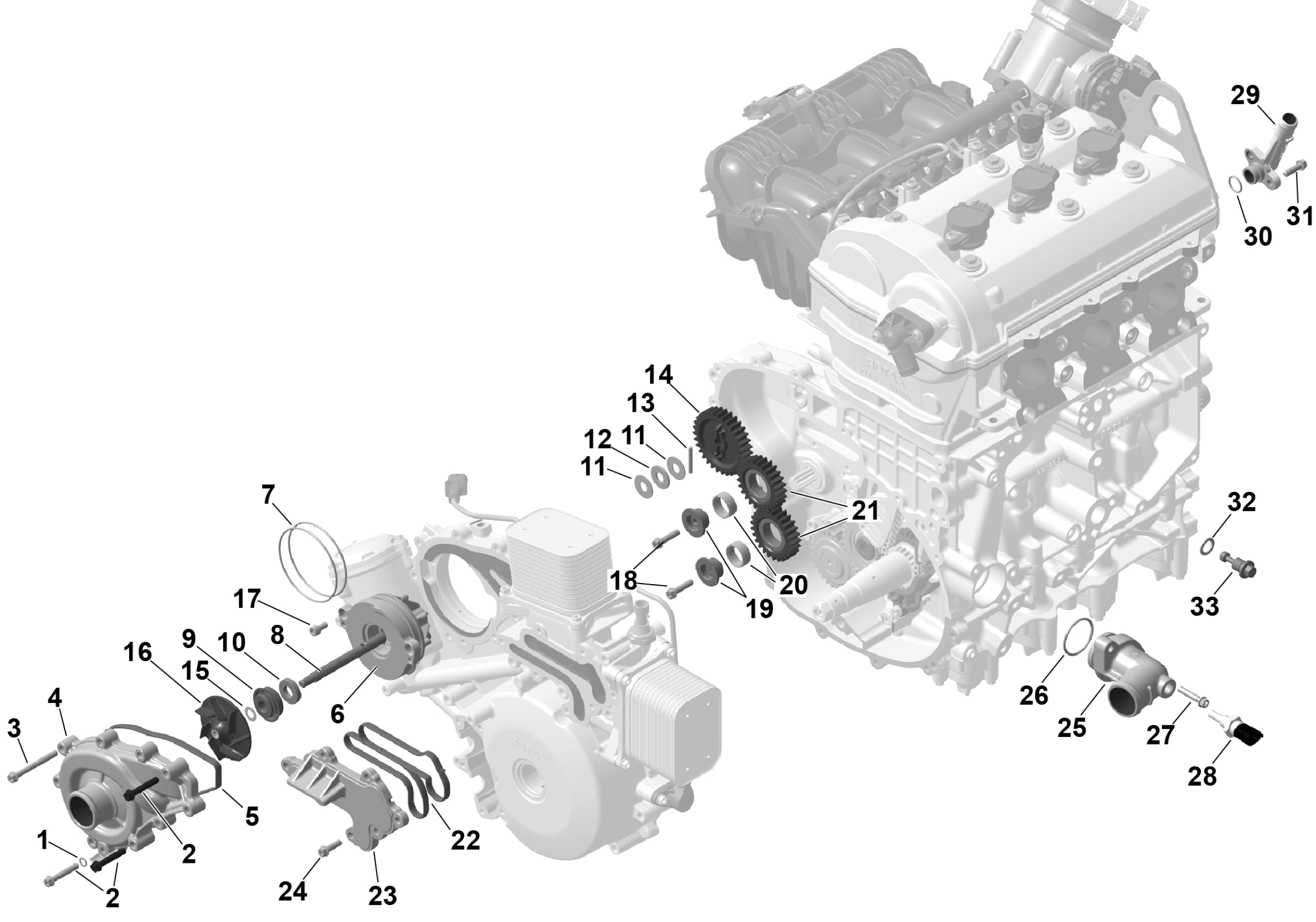

Can-Am CE - Maverick R MAX - 996NT2 - XRS STD - 7DSM - Timeless Black Metallic - 77" Width, 2025 ROTAX - Engine Cooling Diagram

#

Description
Price

1

Seal Washer

420230415

$1.72

2

Torx Flange Screw M6 X 35

420440274

$0.96

3

Torx Flange Screw M6 X 55

420440702

$2.91

4

Water Pump Cover

420222071

$80.57

5

Gasket

420230015

$17.13

6

Water Pump Ass'y | Includes 6-16

420281502

$326.84

7

O-Ring

420931380

$11.82

8

Not Available As Spare Parts

XXX

Unavailable

9

Not Available As Spare Parts

XXX

Unavailable

10

Not Available As Spare Parts

XXX

Unavailable

11

Thrust Washer

420626790

$3.94

12

Needle Bearing

420632305

$18.63

13

Needle Pin

420232432

$4.21

14

Waterpump Gear 31 Teeth

420234283

$30.57

15

Thrust Washer

420227945

$3.75

16

Impeller

420922804

$16.39

17

Allen Screw M6 X 12

420840032

$4.15

18

Torx Flange Screw M6 X 25

420440234

$2.91

19

Graduated Spacer

420947398

$25.34

20

Needle Bearing

420232664

$18.63

21

Intermediate Gear 25 Teeth

420234058

$92.51

22

Gasket

420430675

$17.13

23

Water Duct Cover

420810475

$19.37

24

Torx Flange Screw M6 X 20

420440207

$2.91

25

Bent Outlet Socket

420822085

$26.84

26

O-Ring

420230911

$4.07

27

Torx Flange Screw M6 X 30

420440647

$1.91

28

Temperature Sensor

278002895

$36.54

29

Bent Outlet Socket

420822082

$26.84

30

O-Ring

420631296

$0.72

31

Torx Flange Screw M6 X 20

420440207

$2.91

32

Copper Washer

420250640

$0.93

33

Plug Screw M12X1.5

420641320

$12.64
