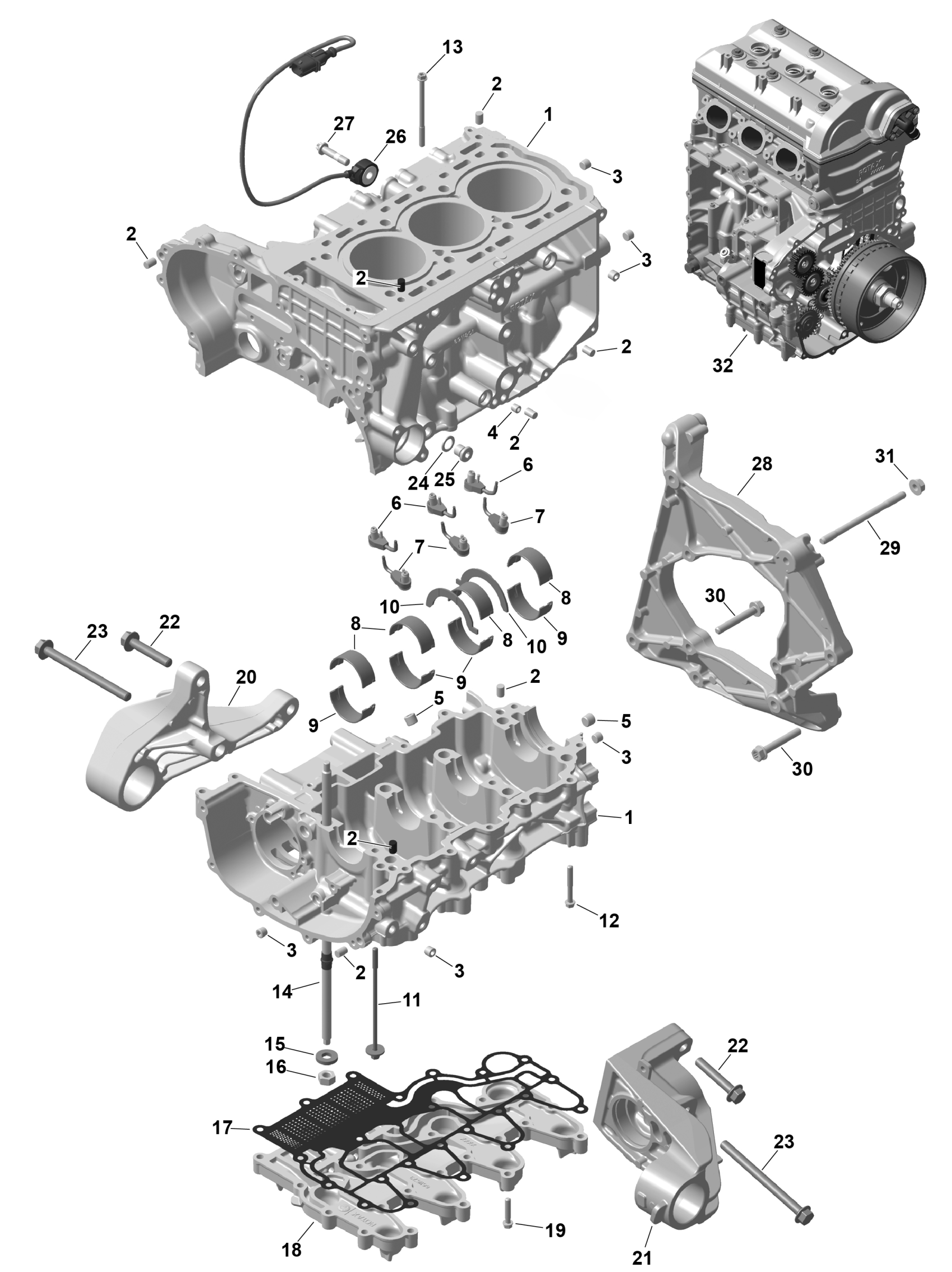

Can-Am CE - Maverick R MAX - 996NT2 - XRS STD - 7DSM - Timeless Black Metallic - 77" Width, 2025 ROTAX - Crankcase Diagram

Description

Price

Engine Block Ass'y

420881176

$2,031.49

Center Pin 8 X 12

420632010

$3.07

Plug Screw M10 X 1

420641323

$11.48

Plug Screw M8 x 1

420941614

$7.37

Plug Screw M12x1,5

420840658

$7.31

Oil Spray Intake Nozzle

420456432

$13.83

Oil Spray Intake Nozzle

420456433

$13.83

Plain Bearing

420233021

$41.51

Plain Bearing

420233022

$41.51

Thrust Bearing

420933142

$14.37

SK/Torx-Expansion Screw M6X130 12.9

420940951

$7.37

Torx Flange Screw M6 X 45

420440324

$0.81

Torx Flange Screw M6 X 85

420641228

$6.11

Stud M10

420240113

$23.05

Washer

420927414

$3.68

Hexagonal Nut M10

420242098

$2.31

Gasket

420230014

$18.43

Oil Sump

420611573

$115.35

Torx Flange Screw M6 X 30

420440647

$1.97

RH Front Engine Bracket

420210602

$106.12

LH Front Engine Bracket

420210592

$106.12

Hex Flange Screw M10X55

420440863

Unavailable

Hex Flange Screw M10X120

420440418

Unavailable

Copper Washer

420250640

$0.81

Plug Screw M12 X 1.5

420841926

$8.29

Noise Sensor

420664031

$50.67

Torx Flange Screw M8 X 35

420641188

$6.11

Connecting Flange

420810862

$156.89

Stud M8

420940647

$5.52

Hex Flange Screw M8 X 55

420440394

$3.68

Hex Nut

420842621

$2.31

Longblock

420099601

$6,479.99
