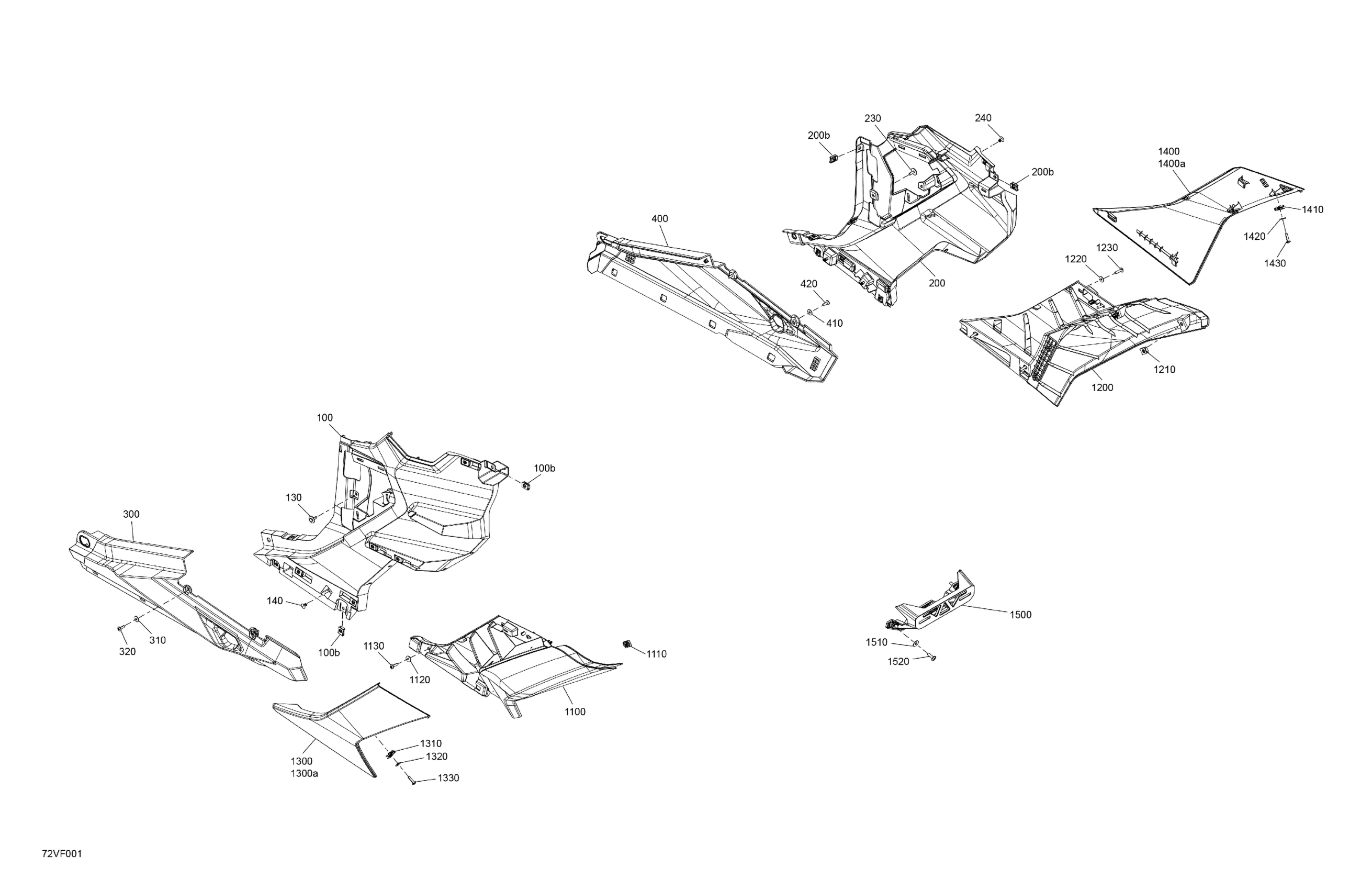

Can-Am CE - Maverick R Max - 996NT2 - XRS SAS - 7DTB - Dusty Navy Satin - 77" Width, 2026 Body - Rear Section Diagram

#

Description
Price

100

LH External Pillar Ass'y | Includes 100
to 100b

705018313

$69.99

100b

Panel Nut M6 X 1.0

250100208

$1.07

130

Hex Sems Screw M6X20

250001165

$3.19

140

Black, Pop Rivet 3/16 X ,425

293150291

$0.54

200

RH External Pillar Ass'y | Includes 200 to 200b

705018314

$69.99

200b

Panel Nut M6 X 1.0

250100208

$1.07

230

Hex Sems Screw M6X20

250001165

$3.19

240

Black, Pop Rivet 3/16 X ,425

293150291

$0.54

300

LH Rear Rocker Panel

705016451

$110.74

310

Stainless Steel Flat Washer

234062670

$1.74

320

Torx Screw M6 X 20

250000722

$1.34

400

RH Rear Rocker Panel

705016452

$110.74

410

Stainless Steel Flat Washer

234062670

$1.74

420

Torx Screw M6 X 20

250000722

$1.34

1100

LH Rear Mud Guard

705016469

$55.35

1110

Panel Nut M6 X 1.0

250100208

$1.07

1120

Stainless Steel Flat Washer

234062670

$1.74

1130

Torx Truss Screw M6 X 25

250000807

$1.74

1200

RH Rear Mud Guard

705016470

$55.35

1210

Panel Nut M6 X 1.0

250100208

$1.07

1220

Stainless Steel Flat Washer

234062670

$1.74

1230

Torx Truss Screw M6 X 25

250000807

$1.74

1300

Dusty Navy, LH Lower Body Panel | Includes 1300 to 1300a

705018832

$373.82

1300a

LH Lower Molded Body Panel

705015540

$69.20

1310

Panel Nut M6 X 1.0

250100208

$1.07

1320

Stainless Steel Flat Washer

234062670

$1.74

1330

Torx Truss Screw M6 X 25

250000807

$1.74

1400

Dusty Navy, RH Lower Body Panel | Includes 1400 to 1400a

705018833

$373.82

1400a

RH Lower Molded Body Panel

705015541

$69.20

1410

Panel Nut M6 X 1.0

250100208

$1.07

1420

Stainless Steel Flat Washer

234062670

$1.74

1430

Torx Truss Screw M6 X 25

250000807

$1.74

1500

License Plate Support

705017197

$12.91

1510

Stainless Steel Flat Washer

234062670

$1.74

1520

Torx Screw M6 X 20

250000722

$1.34
