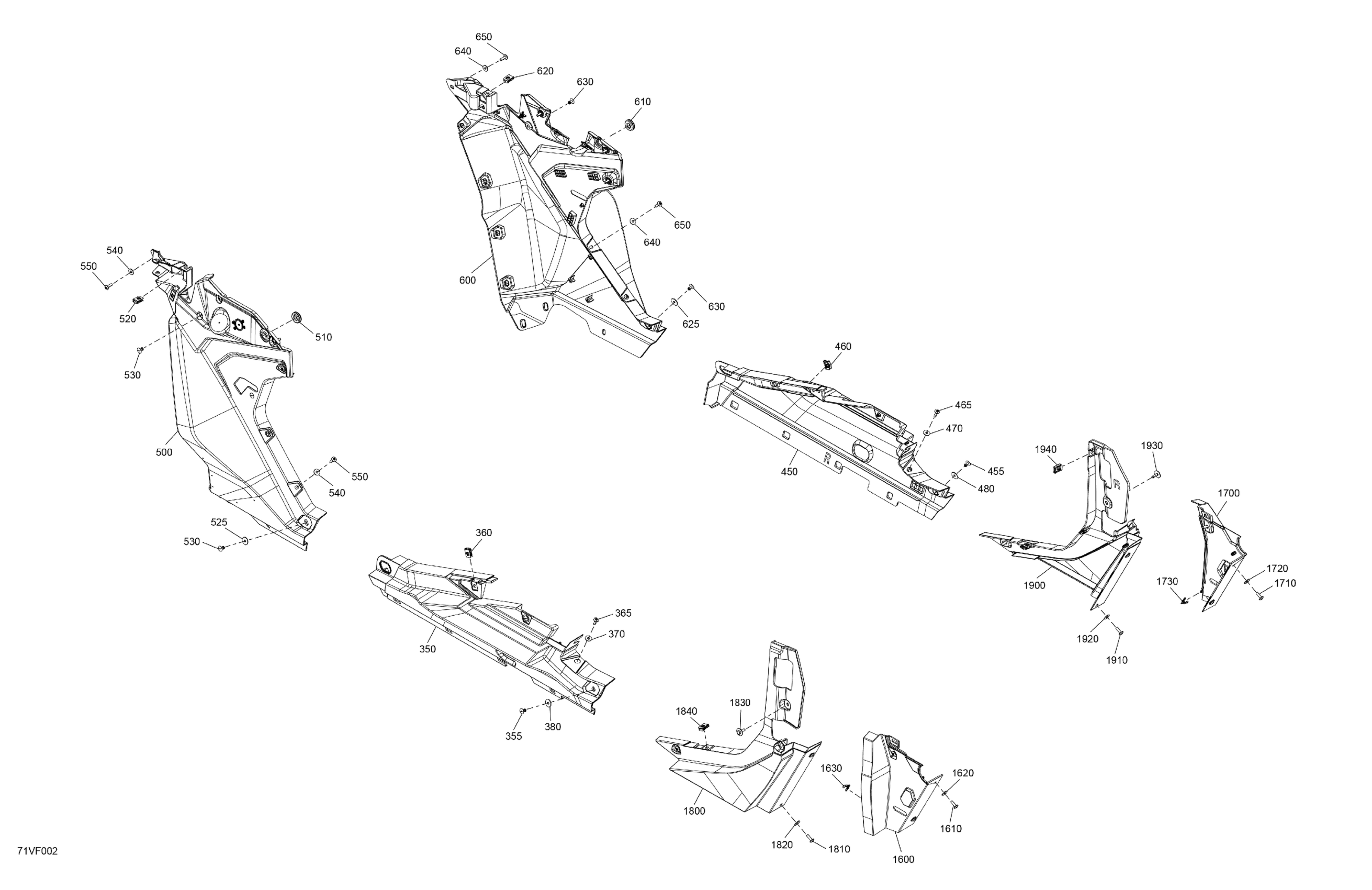

Can-Am CE - Maverick R Max - 996NT2 - XRS SAS - 7DTB - Dusty Navy Satin - 77" Width, 2026 Body - Front Section Diagram

Description

Price

350

LH Rocker Panel

705019974

$103.70

355

Black, Ornit Rivet 3/16 X ,675

293150308

$1.19

360

Panel Nut M6 X 1.0

250100208

$1.22

365

Torx Screw M6 X 20

250000722

$1.54

370

Stainless Steel Flat Washer

234062670

$2.00

380

Flat Washer M6.6 X 22

250200162

$2.19

450

RH Rocker Panel

705019975

$103.70

455

Black, Ornit Rivet 3/16 X ,675

293150308

$1.19

460

Panel Nut M6 X 1.0

250100208

$1.22

465

Torx Screw M6 X 20

250000722

$1.54

470

Stainless Steel Flat Washer

234062670

$2.00

480

Flat Washer M6.6 X 22

250200162

$2.19

500

LH Front Mud Guard

705015962

$52.96

510

Insulating Washer

517309511

$7.49

520

Panel Nut M6 X 1.0

250100208

$1.22

525

Flat Washer M6.6 X 22

250200162

$2.19

530

Black, Ornit Rivet 3/16 X ,675

293150308

$1.19

540

Stainless Steel Flat Washer

234062670

$2.00

550

Torx Screw M6 X 20

250000722

$1.54

600

RH Front Mud Guard

705015963

$52.96

610

Insulating Washer

517309511

$7.49

620

Panel Nut M6 X 1.0

250100208

$1.22

625

Flat Washer M6.6 X 22

250200162

$2.19

630

Black, Ornit Rivet 3/16 X ,675

293150308

$1.19

640

Stainless Steel Flat Washer

234062670

$2.00

650

Torx Screw M6 X 20

250000722

$1.54

1600

Dusty Navy, LH Central Body Panel

705018839

$103.70

1610

Torx Screw M6 X 20

250000722

$1.54

1620

Stainless Steel Flat Washer

234062670

$2.00

1630

Clip

517306478

$1.03

1700

Dusty Navy, RH Central Body Panel

705018840

$103.70

1710

Torx Screw M6 X 20

250000722

$1.54

1720

Stainless Steel Flat Washer

234062670

$2.00

1730

Clip

517306478

$1.03

1800

Dusty Navy, LH Central Body Panel

705018841

$103.70

1810

Torx Screw M6 X 20

250000722

$1.54

1820

Stainless Steel Flat Washer

234062670

$2.00

1830

Hex Sems Screw M6X20

250001165

$3.66

1840

Panel Nut M6 X 1.0

250100208

$1.22

1900

Dusty Navy, RH Central Body Panel

705018842

$103.70

1910

Torx Screw M6 X 20

250000722

$1.54

1920

Stainless Steel Flat Washer

234062670

$2.00

1930

Hex Sems Screw M6X20

250001165

$3.66

1940

Panel Nut M6 X 1.0

250100208

$1.22
