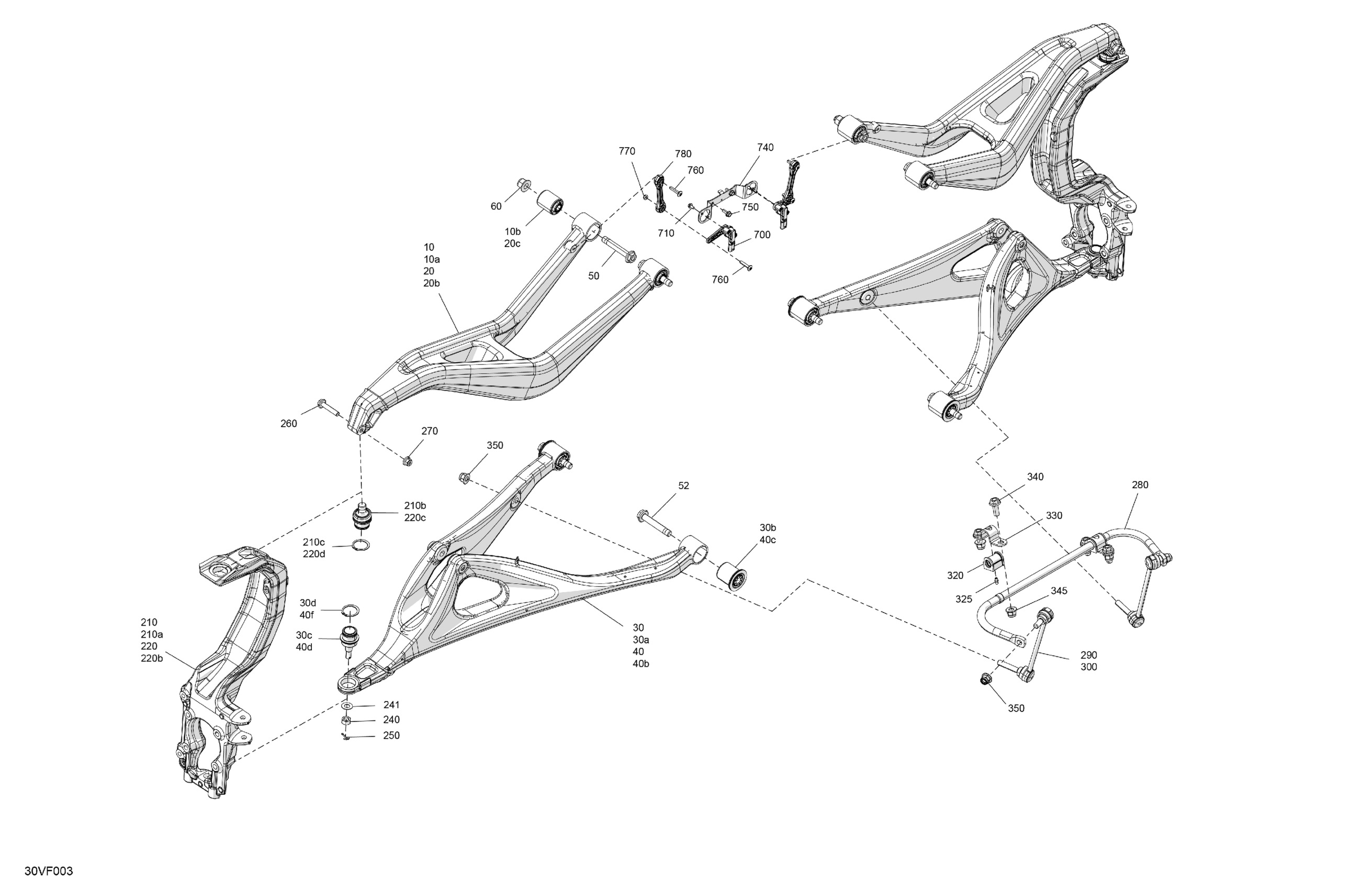

Can-Am CE - Maverick R Max - 996NT2 - XRS SAS - 7DTB - Dusty Navy Satin - 77" Width, 2026 Suspension - Front Components Diagram

#

Description
Price

10

Deep Black, LH Upper Suspension Arm Ass'y | Includes 10 to 10b

715010162

$264.99

10a

Not Available As Spare Parts

XXX

Unavailable

10b

Suspension Arm Bushing

706205620

$13.76

20

Deep Black, RH Upper Suspension Arm Ass'y | Includes 20 to 20b

715010163

$264.99

20b

Not Available As Spare Parts

XXX

Unavailable

20c

Suspension Arm Bushing

706205620

$13.76

30

Legion Red, LH Lower Suspension Arm Ass'y | Includes 30 to 30d

715010166

$264.99

30a

Not Available As Spare Parts

XXX

Unavailable

30b

Suspension Arm Bushing

706205895

$13.76

30c

Ball Joint

706203084

$35.99

30d

Circlip

293370035

$2.64

40

Legion Red, RH Lower Suspension Arm Ass'y | Includes 40 to 40d

715010167

$264.99

40b

Not Available As Spare Parts

XXX

Unavailable

40c

Suspension Arm Bushing

706205895

$13.76

40d

Ball Joint

706203084

$35.99

40f

Circlip

293370035

$2.64

50

Hex. Flange Screw Din.6921 M14X2X85

250001176

$7.41

52

Hex. Flange Screw Din.6921 M14X2X85

250001176

$7.41

60

Hex. Flange Elastic Nut M14

250001166

$12.71

210

Deep Black, LH Front Knuckle Ass'y | Includes 210 to 210c

715011408

$487.49

210a

Not Available As Spare Parts

XXX

Unavailable

210b

Ball Joint

706202045

$35.99

210c

Circlip

293370035

$2.64

220

Deep Black, RH Front Knuckle Ass'y | Includes 220 to 220d

715011409

$487.49

220b

Not Available As Spare Parts

XXX

Unavailable

220c

Ball Joint

706202045

$35.99

220d

Circlip

293370035

$2.64

240

Hex Nut M12

250100239

$2.00

241

Hardened Washer

706200281

$2.85

250

Cotter Pin

211400017

$0.33

260

Hex. Flange Screw M10 X 50

207605056

$4.50

270

Flange Elastic Nut M10

233201466

$3.17

280

Stabilizer Bar Ass'y

706205633

$98.49

290

LH Front Stabilizer Link

706205574

$77.99

300

RH Front Stabilizer Link

706205575

$77.99

320

Stabilizer Bar Bushing

706205632

$8.43

325

Grease Fitting

408200700

$3.49

330

Mounting Clamp

706205649

$6.89

340

Hex. Flange Screw DIN.6921

250000951

$7.17

345

Elastic Flange Nut M12

250001195

$2.64

350

Elastic Flange Nut M12

250001195

$2.64

700

Position Sensor

710009195

$69.99

710

Hex. Flange Screw M5x10

207551056

$1.99

740

Front Sensor Support

706204861

$38.99

750

Hex. Flange Screw M6 X 16

207661654

$2.11

760

Stainless, Torx Screw M6 X 30

250000842

$2.11

770

Elastic Stop Nut M6 | Model-Australie, Brezil, Europe

232561494

$0.58

780

Link

706203429

$19.99
