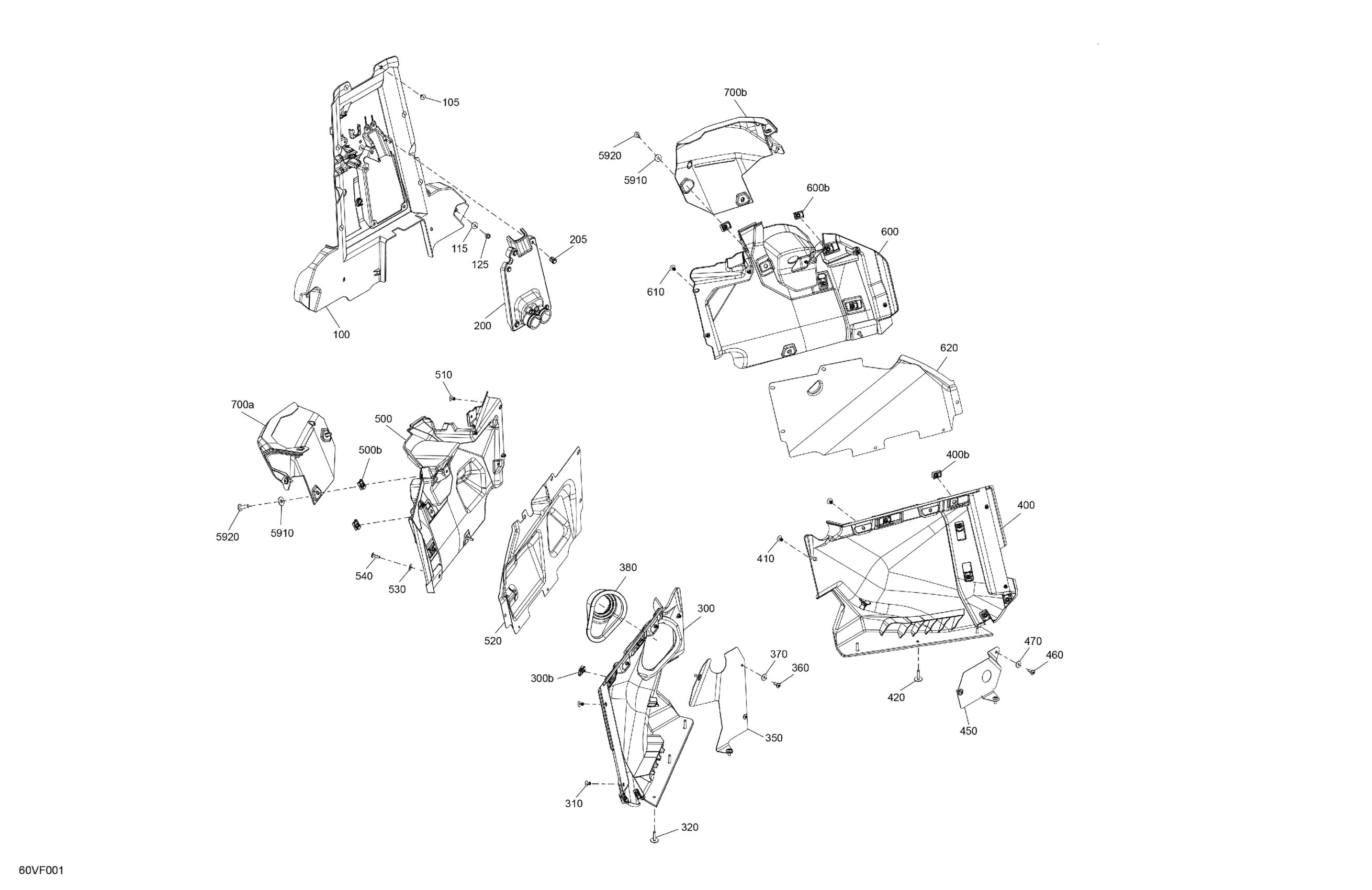

Can-Am CE - Maverick R Max - 996NT2 - XRS SAS - 7DTA - Timeless Black Metallic - 77" Width, 2026 Cab Interior - Firewall Diagram

Description

Price

100

Central Front Baffle

707900906

$50.99

105

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

115

Stainless Steel Flat Washer

234062670

$2.11

125

Screw PT Type K-50 X 16

250000959

$2.11

200

Grommet

707900907

$18.49

205

Tuflok Plastic Rivet

293150230

$1.47

300

LH Front Deflector Ass'y | Includes 300 to 300b

707901330

$53.99

300b

Panel Nut M6 X 1.0

250100208

$1.46

310

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

320

Screw Hex Sems Threadlock M6 X 30

250001348

$3.91

350

LH Lower Body Panel Deflector

707901489

Unavailable

360

Torx Head Screw M6 X 16

250000717

$2.11

370

Stainless Steel Flat Washer

234062670

$2.11

380

Steering Column Trim

707900942

$12.99

400

RH Front Deflector Ass'y | Includes 400 to 400b

707901331

$53.99

400b

Panel Nut M6 X 1.0

250100208

$1.46

410

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

420

Screw Hex Sems Threadlock M6 X 30

250001348

$3.91

450

RH Lower Body Panel Deflector

707901324

$53.99

460

Torx Head Screw M6 X 16

250000717

$2.11

470

Stainless Steel Flat Washer

234062670

$2.11

500

LH Front Baffle Ass'y | Includes 500 to 500b

707901189

$50.99

500b

Panel Nut M6 X 1.0

250100208

$1.46

510

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

520

LH Front Body Panel Deflector

707901295

$50.99

530

Stainless Steel Flat Washer

234062670

$2.11

540

Torx Screw M6 X 20

250000722

$1.68

600

RH Front Baffle Ass'y | Includes 600 to 600b

707901190

$50.99

600b

Panel Nut M6 X 1.0

250100208

$1.46

610

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

620

RH Front Body Panel Deflector

707901296

$50.99

700a

LH Front Cover

707901062

$26.99

700b

RH Front Cover

707901063

$26.99

5910

Stainless Steel Flat Washer

234062670

$2.11

5920

Torx Screw M6 X 20

250000722

$1.68
