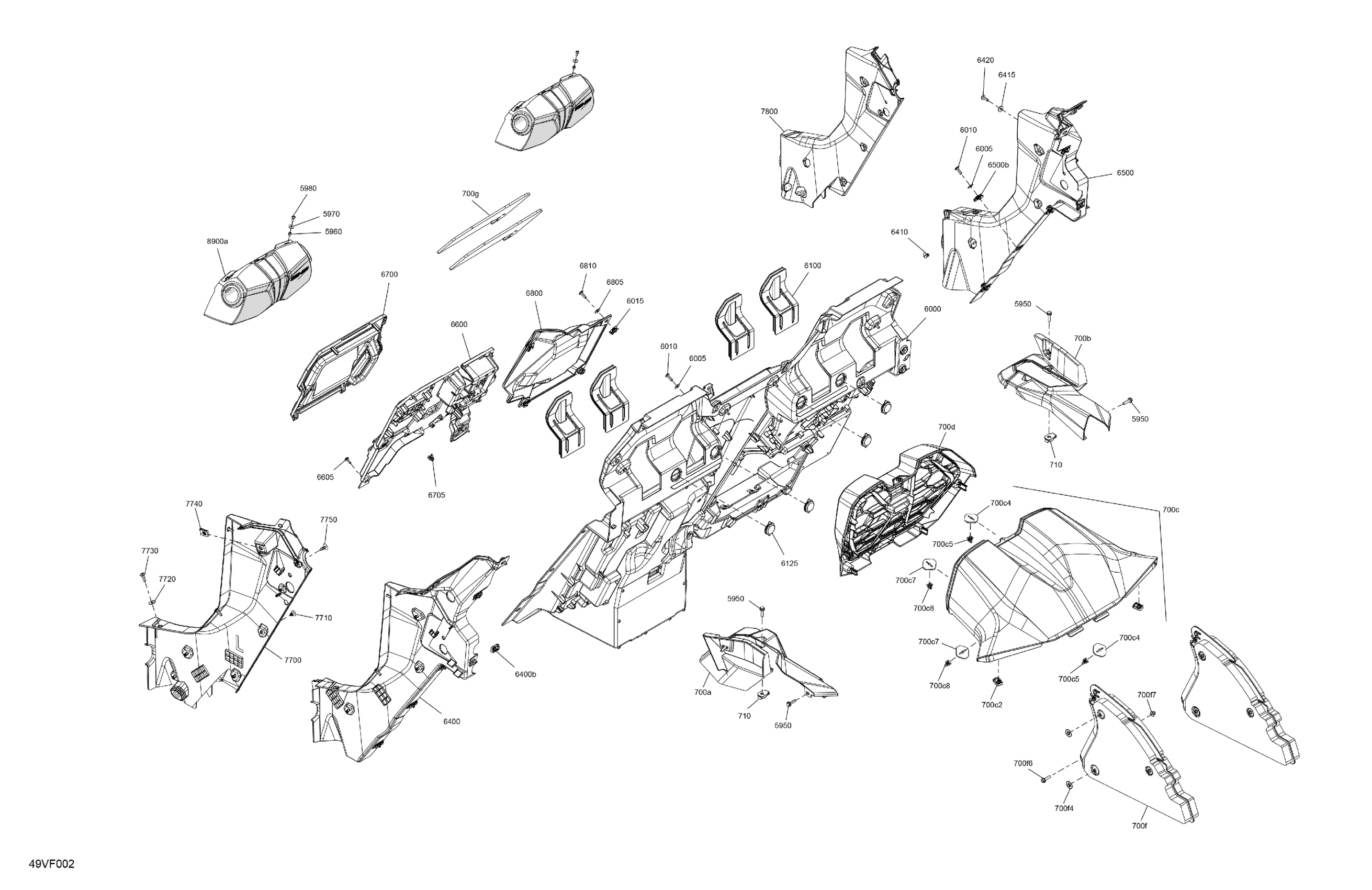

Can-Am CE - Maverick R Max - 996NT2 - XRS SAS - 7DTA - Timeless Black Metallic - 77" Width, 2026 Cab Interior - Back Wall Diagram

Description

Price

700a

LH Rear Cage Panel

708304050

$36.12

700b

RH Rear Cage Panel

708304051

$36.12

700c

Rear Scoop Ass'y | Includes 8000a to 8000a8

708304272

$119.97

700c2

Panel Nut M6 X 1.0

250100208

$1.07

700c4

Support Plate

705003841

$0.91

700c5

Edge Clip

517302785

$0.70

700c7

Support Plate

705003841

$0.91

700c8

Edge Clip

517302785

$0.70

700d

Central Air Inlet Grille

708304061

$55.35

700f

Seperation Panel | Includes 8000c to 8000c7

708304273

$27.66

700f4

Push Nut

508000853

$1.92

700f6

Hex. Flange Screw M6 X 25

207662554

$1.48

700f7

Hex. Flange Elastic Nut M6

233261494

$1.26

700g

Rear Deflector

706006095

$36.89

710

Panel Nut M6 X 1.0

250100224

$1.70

6000

Rear Baffle

707900910

$216.89

6005

Stainless Steel Flat Washer

234062670

$1.74

6010

Torx Screw M6 X 20

250000722

$1.34

6015

Panel Nut M6 X 1.0

250100208

$1.07

6100

Cap

707901015

$16.12

6125

Plug

293000125

$1.37

6400

LH Rear Baffle Ass'y | Includes 6400 to 6400b

707901175

$54.58

6400b

Panel Nut M6 X 1.0

250100208

$1.07

6410

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

6415

Stainless Steel Flat Washer

234062670

$1.74

6420

Torx Screw M6 X 20

250000722

$1.34

6500

RH Rear Baffle Ass'y | Includes 6500 to 6500b

707901176

$54.58

6500b

Panel Nut M6 X 1.0

250100208

$1.07

6600

Rear Fuse Box Cover

707900944

$36.89

6605

Screw PT Type K-50 X 16

250000959

$1.74

6700

Battery Cover

707901053

$36.89

6705

Clip

517306478

$1.37

6800

RH Rear Access Cover

707900990

$36.89

6805

Stainless Steel Flat Washer

234062670

$1.74

6810

Torx Screw M6 X 20

250000722

$1.34

7700

LH Central Cab Panel

707901035

$50.74

7710

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

7720

Stainless Steel Flat Washer

234062670

$1.74

7730

Torx Screw M6 X 20

250000722

$1.34

7740

Panel Nut M6 X 1.0

250100208

$1.07

7750

Black, Dart

293730011

$0.79

7800

RH Central Cab Panel

707901036

$50.74

8900a

Foam

707900653

$119.97

5950

Hex Flange Screw M6 X 25

250000841

$6.15

5960

Bushing

293900112

$10.14

5970

Washer M5

250200025

$0.61

5980

Torx Screw K50 X 16

250000720

$1.39

1060f

Clip

517306478

$1.37

1060g

Tuflok Plastic Rivet

293150230

$1.21

1060h

Screw PT Type K-50 X 16

250000959

$1.74
