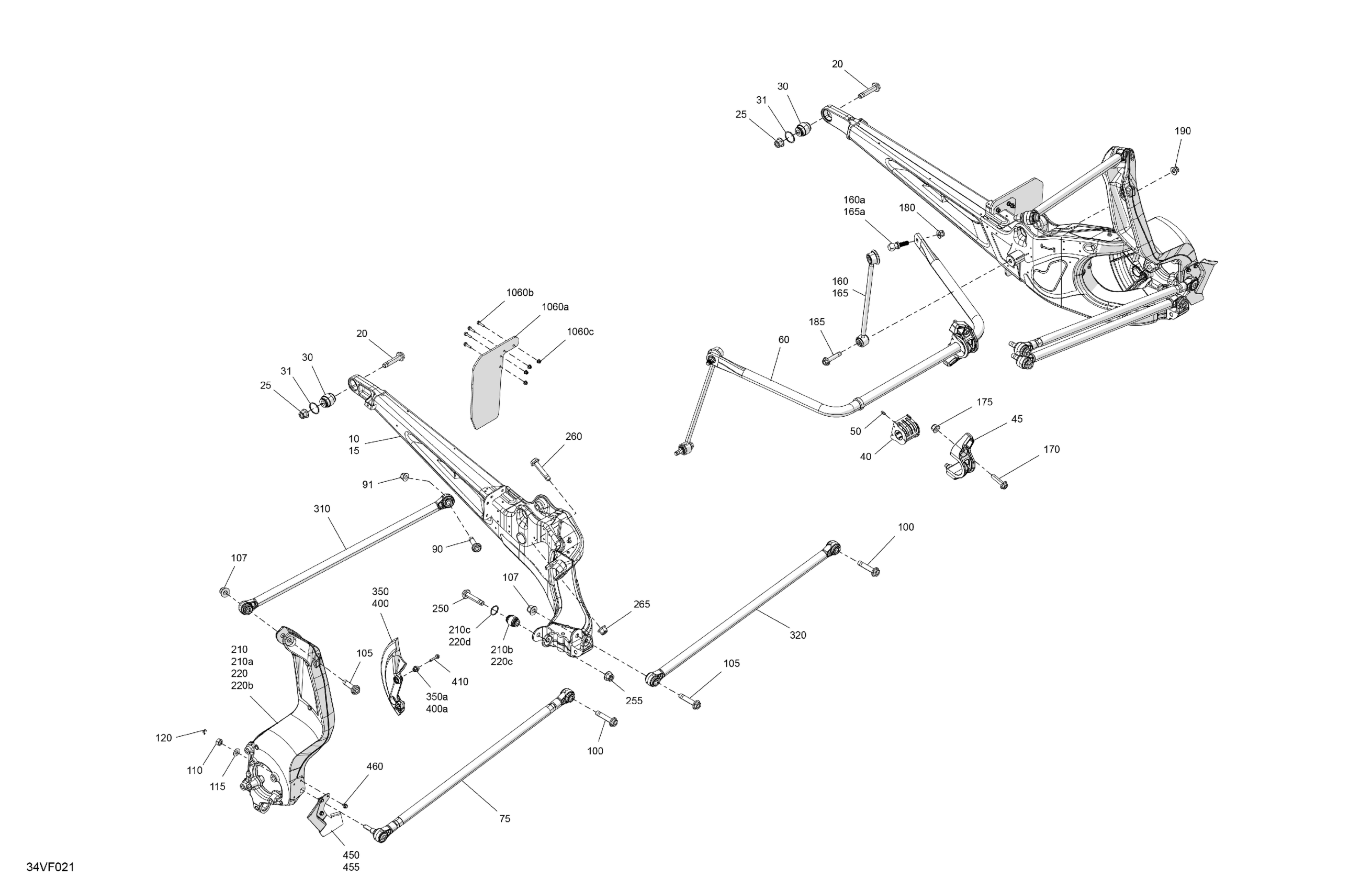

Can-Am CE - Maverick R Max - 996NT2 - XRS SAS - 7DTA - Timeless Black Metallic - 77" Width, 2026 Suspension - Rear Components Diagram

#

Description
Price

10

Deep Black, LH Rear Suspension Arm

706006521

$812.28

15

Deep Black, RH Rear Suspension Arm

706006522

Unavailable

20

Hex. Flange Screw Din.6921 M14X2X70

250001175

$6.08

25

Hex. Flange Elastic Nut M14

250001166

$10.56

30

Ball Joint

706005389

$46.12

31

Retaining Ring

293370166

$7.37

40

Stabilizer Bar Bushing

706006115

$15.35

45

Clamp

706004846

$32.28

50

Grease Fitting

408200700

$2.80

60

Stabilizer Bar Ass'y

706006112

$193.82

75

Central Suspension Arm Ass'y

706005030

$175.35

90

Hex. Flange Screw Din.6921 M14X2X70

250001175

$6.08

91

Hex. Flange Elastic Nut M14

250001166

$10.56

100

Hex. Flange Screw Din.6921 M14X2X70

250001175

$6.08

105

Hex. Flange Screw Din.6921 M14X2X70

250001175

$6.08

107

Hex. Flange Elastic Nut M14

250001166

$10.56

110

Hex Nut M12

250100239

$1.64

115

Hardened Washer

706200281

$2.34

120

Cotter Pin

211400017

$0.25

160

LH Stabilizer Link Bar | Includes 160 to 160a

706005360

$156.89

160a

Radial Joint

706002135

$41.51

165

RH Stabilizer Link Bar | Includes 165 to 165a

706005361

$156.89

165a

Radial Joint

706002135

$41.51

170

Screw Hex Flange M12 X 50

250001233

$5.41

175

Elastic Flange Nut M12

250001195

$2.15

180

Elastic Flange Nut M12

250001195

$2.15

185

Flange Screw M12 X 60

250000857

$6.08

190

Elastic Flange Nut M12

250001195

$2.15

210

Deep Black, LH Rear Knuckle Ass'y | Includes 210 to 210c

715011410

$479.97

210a

Not Available As Spare Parts

XXX

Unavailable

210b

Ball Joint | Not Shown

706004401

$41.51

210c

Retaining Ring | Not Shown

293370165

$7.37

220

Deep Black, RH Rear Knuckle Ass'y | Includes 220 to 220d

715011411

$479.97

220b

Not Available As Spare Parts

XXX

Unavailable

220c

Ball Joint | Not Shown

706004401

$41.51

220d

Retaining Ring | Not Shown

293370165

$7.37

250

Hex. Flange Screw Din.6921 M14X2X70

250001175

$6.08

255

Hex. Flange Elastic Nut M14

250001166

$10.56

260

Hex. Flange Screw Din.6921 M14X2X70

250001175

$6.08

265

Hex. Flange Elastic Nut M14

250001166

$10.56

310

Upper Suspension Arm Ass'y

706005031

$156.89

320

Lower Suspension Arm Ass'y

706005032

$156.89

350

LH Rear Guard | Includes 350 to 350a

706004631

$49.97

350a

Spacer

706004805

Unavailable

400

RH Rear Guard | Includes 400 to 400a

706004632

$49.97

400a

Spacer

706004805

Unavailable

410

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$3.61

450

LH Deflector

706004703

$15.22

455

RH Deflector

706004704

$15.22

460

Flange Screw M6 X 10, Scotch Grip

207561044

$5.89

1060a

Retaining Plate

706006096

$2.31

1060b

Hex. Flange Screw M6 X 25

207662554

$1.48

1060c

Hex. Flange Elastic Nut M6

233261466

$1.66
