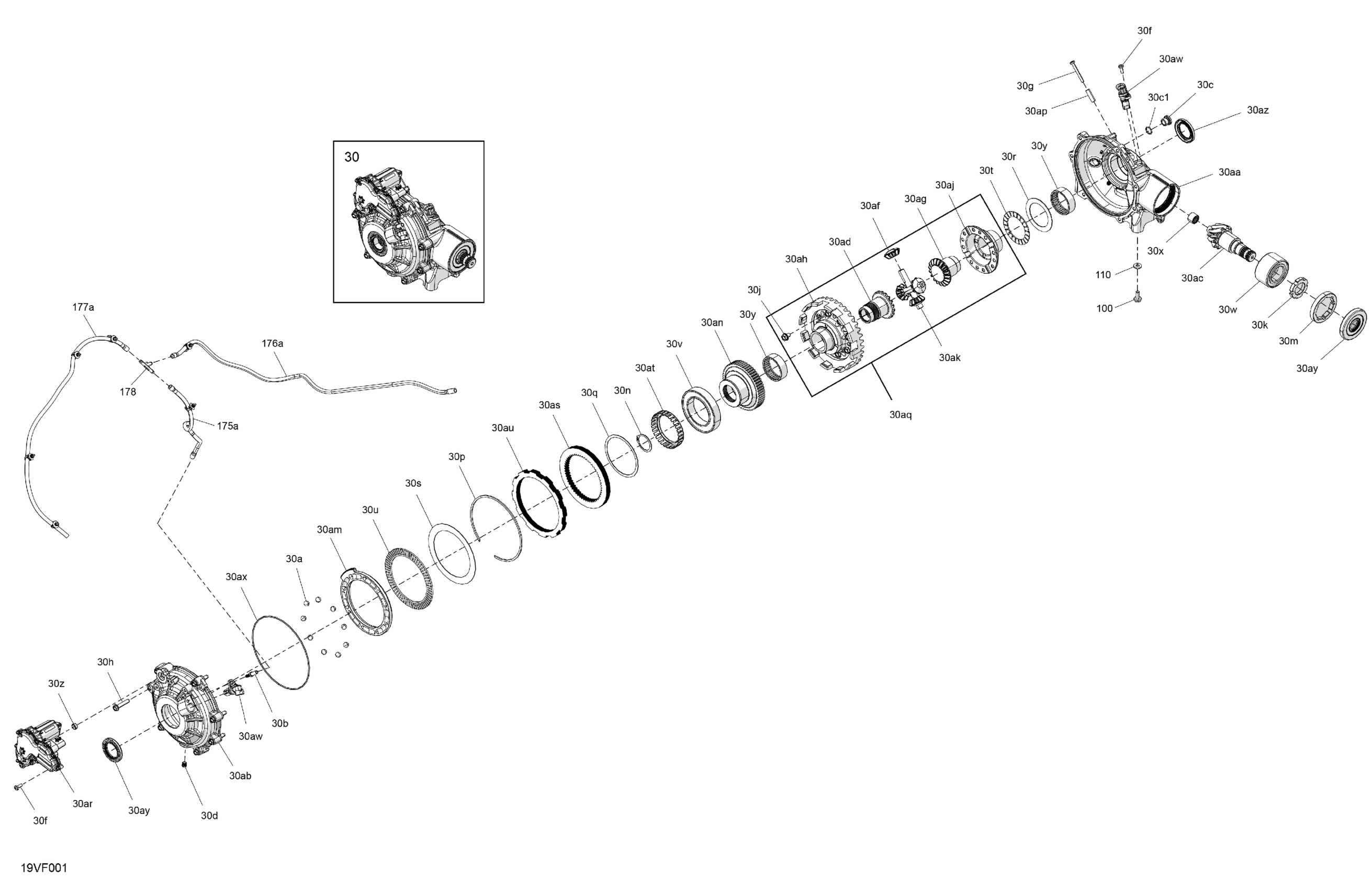

Can-Am CE - Maverick R Max - 996NT2 - XRS SAS - 7DTA - Timeless Black Metallic - 77" Width, 2026 Drive - Front - Differential Parts Diagram

Description

Price

Front Differential Ass'y | Includes 30 to 30az

705403620

$1,774.58

30a

Ball

715900564

$5.38

30b

Vent Hex. Screw M6

715900842

$23.05

30c

Magnetic Plug Drain | Includes 50b to 50b1

705502851

$18.43

30c1

O-Ring

219800486

$9.22

30d

Fill Level Plug M10

715900563

$27.66

30f

Torx Screw M6 X 16

705402845

$10.14

30g

6 Lobe Screw Pan HD M6x1x50

715900844

$11.06

30h

Serrated Screw Flange Hd M81.25x38

715900845

$10.14

30j

Flange HD Screw M10x1.25x12

715900846

$10.14

30k

Pinion Nut M32

715900847

$14.75

30m

Pinion Nut M78

715900848

$23.05

30n

Retaining Ring, SH162

715900849

$13.52

30p

Retaining Ring, CFH-165

715900850

$15.22

30q

Shim 108.6 OD x 96 ID

715900851

$516.89

30r

Bearing Spacer

715900852

$276.89

30s

Thrust Plate

715900853

$193.82

30t

Needel Thrust Bearing 60x85x3

715900854

$28.43

30u

Needel Thrust Bearing 120x155x4

715900855

$58.43

30v

Ball Bearing 6014 70x110x20

715900856

$48.43

30w

Dac Bearing 407440W

715900857

$48.43

30x

Needle Bearing B-1110

715900858

$18.43

30y

Needle Bearing HK-5520

715900859

$18.43

30z

Plain Bearing 12.4x14.4x6

715900860

$41.51

30aa

Machined Case

715900861

$184.58

30ab

Machined Cover

715900862

$198.43

30ac

LH Pinion 10T, Spiral Bevel

715900863

$373.82

30ad

LH Side Gear 18T

715900865

$110.74

30af

Spider Gear 9T

715900866

$46.12

30ag

RH Side Gear 18T

715900867

$101.51

30ah

Gear 36T, Spiral Bevel

715900868

$313.82

30aj

Machined Carrier

715900958

$110.74

30ak

Differential Pin

715900959

$27.66

30am

Ball Ramp

715900870

$83.82

30an

Coupler

715900871

$110.74

30ap

Stand-Off Tube

715900872

$12.91

30aq

Differential Subassembly

715900957

$646.12

30ar

Actuator

715900874

$479.97

30as

Friction Plate Female

715900875

$15.35

30at

Tone Ring 30T

715900876

$17.66

30au

Friction Plate Male

715900877

$18.43

30av

Vent Cap 5/16

715900533

$6.75

30aw

Speed Sensor

715900878

$106.12

30ax

O-Ring

715900749

$10.98

30ay

Seal Triple Lip 27.5x80.0x11.0

715900880

$46.12

30az

Seal Triple Lip 40x60x7

715900881

$46.12

100

Hex. Flange Screw M10 X 25

207502546

$1.74

110

Conical Spring Washer 10 mm

234201474

$1.39

175a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

176a

Not Available As Spare Parts

XXX

Unavailable

177a

Not Available As Spare Parts

XXX

Unavailable

178

Y-Fitting

293710059

$8.19
