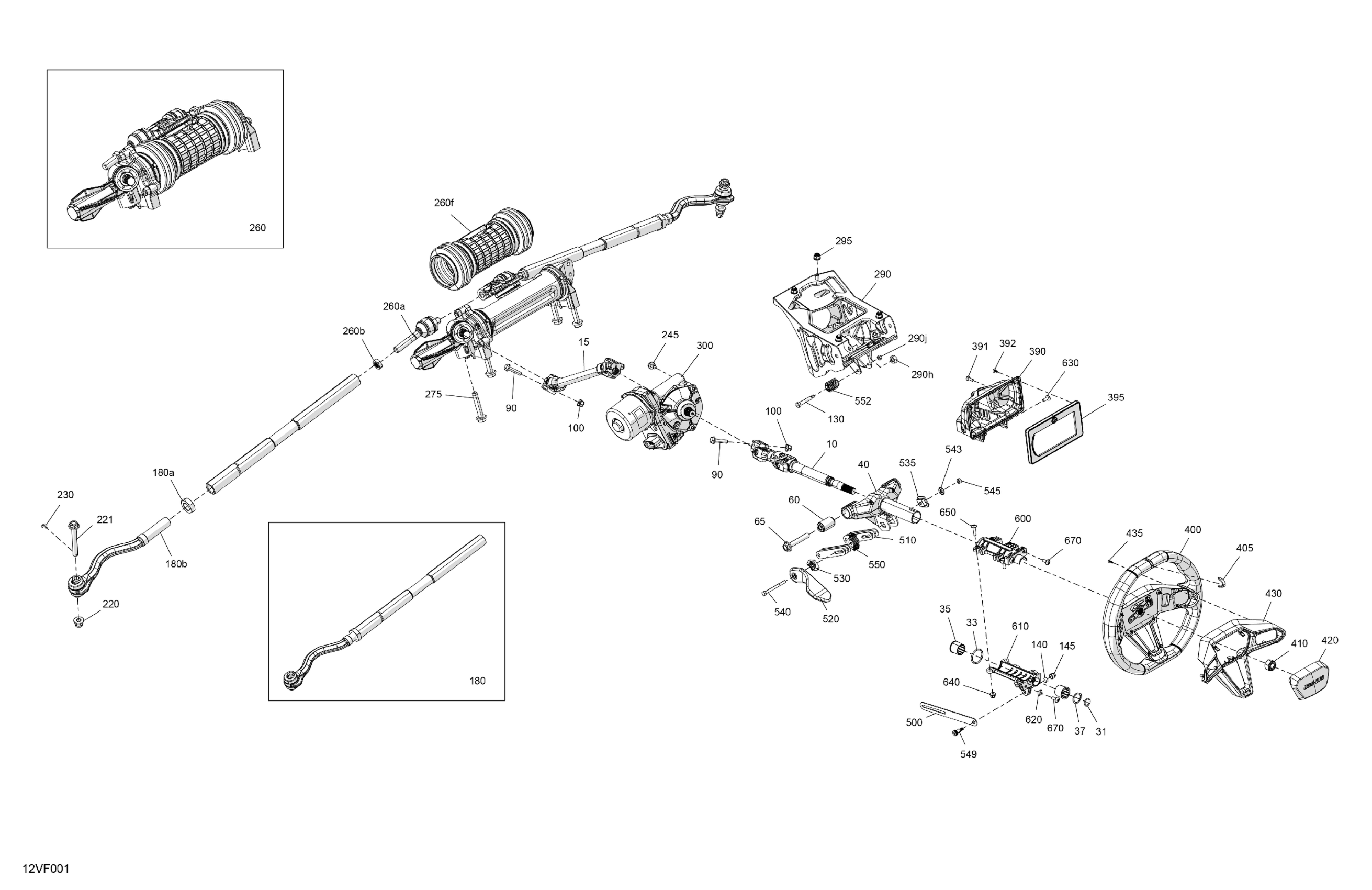

Can-Am CE - Maverick R Max - 996NT2 - XRS SAS - 7DTA - Timeless Black Metallic - 77" Width, 2026 Mechanic - Steering Diagram

#

Description
Price

10

Upper Steering Axle

709402949

$189.99

15

Lower Steering Axle

709402950

$189.99

31

O-Ring

293300144

$3.82

33

O-Ring Seal

709402670

$1.99

35

Steering Bushing

709402642

$3.28

37

External Retaining Ring

709402668

$8.49

40

Steering Wheel Support

709402989

$114.99

60

Suspension Arm Bushing

706005404

$13.76

65

HEX. FLANGED SCREW M10 X 60, SCOTCH GRIP - Call your local BRP dealership | 7413/7414. 7415/7416. 7417/7418.

207506044

Unavailable

90

Hex. Flange Screw M8 X 35

250001021

$4.44

100

Hex. Elastic Flange Nut M8

233281416

$1.48

130

Socket Head Shoulder Screw S.Grip

709403007

$10.54

140

Hex. Nut M6 X 1.0 Din 980V

250100237

$1.48

145

Cap

269500806

$2.89

180

Tie Rod Ass'y | Includes 180 to 180b

709403204

$179.99

180a

Hex Jam Nut M24

715900828

$1.48

180b

Ball Joint

709403205

$56.99

220

Elastic Flange Nut M12

250001195

$2.64

221

Hex Cap Screw M12 X 95

250000864

$4.76

230

Cotter Pin

211400017

$0.33

245

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

260

Rack And Pinion Steering | Includes 260 to 260b

709403262

Unavailable

260a

Inner Ball Joint

715901032

Unavailable

260b

Hex Jam Nut

715900784

$12.12

260f

Boot Rack

709402442

$54.99

275

Hex Flange Screw Din.6921 M12X1.75X6

250001203

$7.41

290

Power Steering Support | Includes 290 to 290j

709402622

$54.99

290h

Hexagonal Nut

233701400

$0.58

290j

Hexagonal Nut M6

232061404

$0.34

295

Hex. Flange Elastic Nut M8

233281434

$2.11

300

Power Steering Ass'y

709403006

$2,119.99

390

Gauge Support

709402651

$19.49

391

Torx Screw K50 X 16

250000720

$1.69

392

Torx-Truss Screw K40 X 10

250001034

$0.98

395

Gauge Trim

709402688

$13.99

400

Steering Wheel

709402549

$529.99

405

Upper Steering Wheel Trim

709402803

$2.89

410

Elastic Lock Nut M16

232511414

$2.00

420

Central Steering Wheel Trim

709402614

$18.49

430

Steering Wheel Trim

709402711

$14.49

435

Screw Plastite Torx K30 X 12

250001234

$0.56

500

Lock Plate

709402984

$4.79

510

Lock Plate

709402983

$4.79

520

Latch Lever

709403259

$21.99

530

Locking Cam

709402639

$6.59

535

Latch Stopper

709402658

$4.79

540

Hex. Screw S.Grip M6 X 70

207267044

$2.54

543

Thrust Washer

709403015

$13.99

545

Hex. Flange Nut M6

233061414

$1.68

549

Socket Head Shoulder Screw

709402676

$10.49

550

Washer

709402660

$4.39

552

Lower Spacer

709402709

$10.99

600

Upper Module Housing

709402643

$22.49

610

Under Module Housing

709402644

$22.49

620

Square Nut M6

232862412

$1.49

630

Tork Screw M6 X 16

250000534

$2.11

640

Hex. Flange Elastic Nut M6

233261494

$1.58

650

Torx Screw M6 X 25

250000758

$2.11

670

Hex. Torx Screw M6 X 20

250000984

$1.69
