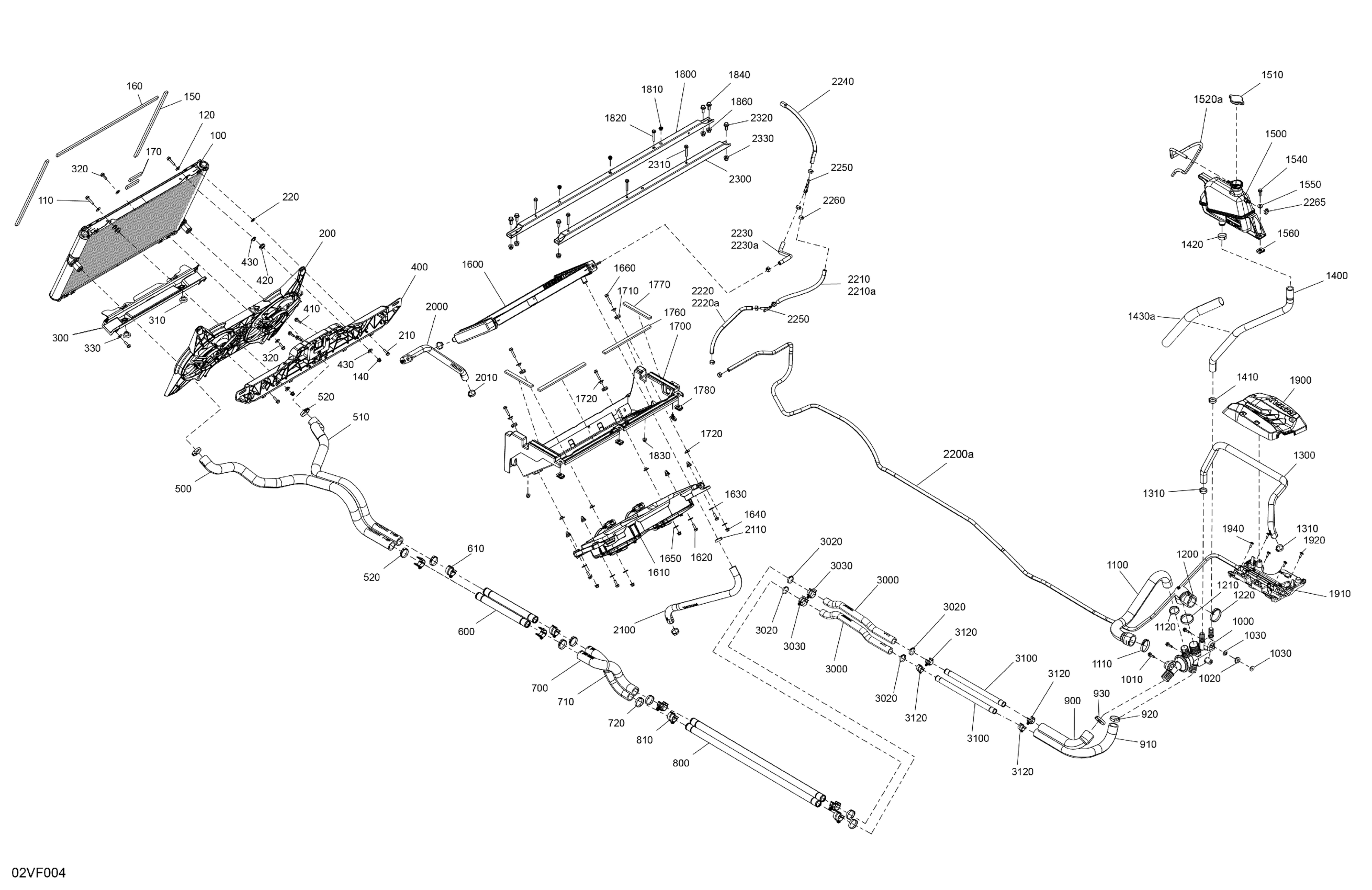

Can-Am CE - Maverick R Max - 996NT2 - XRS SAS - 7DTA - Timeless Black Metallic - 77" Width, 2026 Engine - Cooling Diagram

#

Description
Price

100

Front Radiator

709201058

$433.55

110

Hex. Flange Screw M6 X 30

207663054

$4.15

120

Stainless Steel Flat Washer

234062670

$2.00

140

Hex. Flange Elastic Nut M6

233261466

$1.91

150

Seal 3000MM Long

219704386

$26.09

160

Seal 3000MM Long

219704386

$26.09

170

Seal 3000MM Long

219704386

$26.09

200

Cooling Fan Ass'y

709201497

$232.06

210

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.00

220

Stainless Steel Flat Washer

234062670

$2.00

300

Front Lower Radiator Support

709201117

Unavailable

310

Grommet

709200948

$8.13

320

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.00

330

Stainless Steel Flat Washer

234062670

$2.00

400

Upper Front Radiator Support

709201109

$17.88

410

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.00

420

Overmolded Grommet

293720130

$4.25

430

Shoulder Bushing

710004749

$2.69

500

Radiator Hose In

709201643

Unavailable

510

Radiator Hose Out

709201644

$60.42

520

Crimp Clamp

293650332

$4.90

600

Tube

709201138

$17.88

610

Retainer

275500963

$4.09

700

Radiator Hose

709201503

$18.63

710

Radiator Hose

709201504

$14.33

720

Crimp Clamp

293650332

$4.90

800

Heater Tubing

709200657

$13.58

810

Retainer

275500963

$4.09

900

Thermostat Hose OUT

709201505

$39.52

910

Thermostat Hose IN

709201611

$38.03

920

Crimp Clamp

293650332

$4.90

930

Oetiker Gear Clamp

293650254

$8.89

1000

Thermostat Housing

709201612

$98.48

1010

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.00

1020

Overmolded Grommet

293720130

$4.25

1030

Shoulder Bushing

710004749

$2.69

1100

Engine Hose OUT

709201508

$32.81

1110

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.22

1120

Crimp Clamp

293650332

$4.90

1200

Engine Hose IN

709201090

$17.13

1210

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.22

1220

Crimp Clamp

293650322

$8.22

1300

Hose

709201083

$35.04

1310

Oeticker Gear Clamp, 25.6-706R

509000442

$4.73

1400

Coolant Tank Hose

709201463

$30.57

1410

Oeticker Gear Clamp, 25.6-706R

509000442

$4.73

1420

Oetiker Gear Clamp

293650165

$4.96

1430a

Tubing 25 MM 1000MM Long

219704402

$14.57

1500

Coolant Tank

709201003

$34.30

1510

Radiator Pressure Cap

709200207

$21.61

1520a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

1540

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.00

1550

Flat washer M6

250200164

$0.96

1560

Panel Nut M6 X 1.0

250100208

$1.22

1600

Rear Radiator

709201075

$335.79

1610

Cooling Fan Ass'y

709201074

$232.06

1620

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.00

1630

Flat Washer

250200082

$0.40

1640

Hex. Flange Elastic Nut M6

233261466

$1.91

1650

Flat Washer

250200082

$0.40

1660

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.15

1700

RH Rear Radiator Support

709201110

$109.67

1710

Overmolded Grommet

293720130

$4.25

1720

Shoulder Bushing

710004749

$2.69

1760

Seal 3000MM Long

219704386

$26.09

1770

Seal 3000MM Long

219704386

$26.09

1780

Panel Nut M6 X 1.0

250100208

$1.22

1800

Square Tube

709201218

$47.73

1810

Insert Half Hex Body M6 x 1.0

250100199

$2.91

1820

Hex. Flange Screw M6 X 40

207664044

$2.12

1830

Hex. Flange Elastic Nut M6

233261466

$1.91

1840

Hex. Flange Screw M8 X 20

207682044

$1.06

1860

Hex. Flange Elastic Nut M8

233281414

$1.31

1900

Cover

705016102

$20.12

1910

Hose Support

705016032

$19.37

1920

Screw PT Type K-50 X 16

250000959

$2.00

1940

Screw PT Type K-50 X 16

250000959

$2.00

2000

Hose

709201084

$15.64

2010

Oeticker Gear Clamp, 25.6-706R

509000442

$4.73

2100

Hose

709201086

$35.04

2110

Oeticker Gear Clamp, 25.6-706R

509000442

$4.73

2200a

Hose 6,35 Mm Id 4000Mm Long

219704547

$11.48

2210

Hose 6,35 Mm Id 4000Mm Long

219704547

$11.48

2210a

Not Available As Spare Parts

XXX

Unavailable

2220

Hose 6,35 Mm Id 4000Mm Long

219704547

$11.48

2220a

Not Available As Spare Parts

XXX

Unavailable

2230

Hose 6,35 Mm Id 4000Mm Long

219704547

$11.48

2230a

Not Available As Spare Parts

XXX

Unavailable

2240

Coolant Tank Hose

709201234

$30.57

2250

Y-Fitting

293710059

$9.40

2260

Oetiker Gear Clamp

293650025

$2.82

2265

Oetiker Clamp

293650140

$2.46

2300

Square Tube

709201220

$47.73

2310

Hex. Flange Screw M6 X 40

207664044

$2.12

2320

Hex. Flange Screw M8 X 20

207682044

$1.06

2330

Hex. Flange Elastic Nut M8

233281414

$1.31

3000

Radiator Hose

709201507

$31.31

3020

Crimp Clamp

293650332

$4.90

3030

Clip

275500951

$7.90

3100

Heater Tubing

709200664

$13.58

3120

Retainer

275500963

$4.09
