Partiron

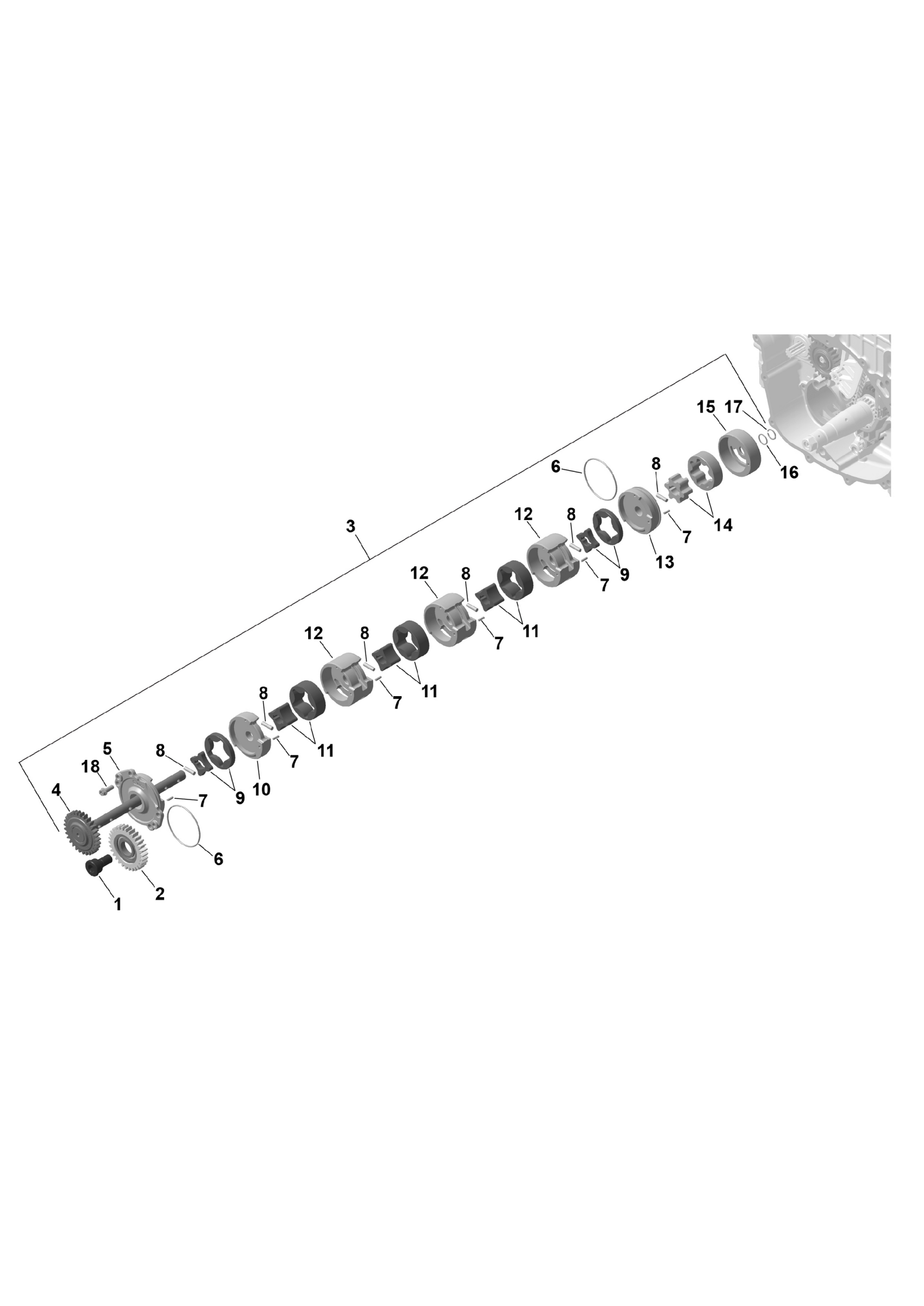

Can-Am CE - Maverick R Max - 996NT2 - XRS SAS - 7DTA - Timeless Black Metallic - 77" Width, 2026 ROTAX - Oil Pump Diagram

#

Description
Price

1

Bearing Bolt

420240926

$13.13

2

Intermediate Pinion 30 Teeth Ass'y

420235273

$39.52

3

Oil Pump Ass'y | Includes 4-17

420296506

$594.00

4

Oil Pump Shaft Ass'y

420220366

$68.63

5

Oil Pump Cover

420210053

$39.52

6

O-Ring

420631032

$4.03

7

Needle

420232992

$4.00

8

Needle Pin

420632223

$4.12

9

Oil Pump Rotor Set

420256832

$12.85

10

Oil Pump Cover

420210052

$39.52

11

Oil Pump Rotor Set

420256833

$12.85

12

Oil Pump Cover

420210055

$39.52

13

Oil Pump Cover

420210051

$39.52

14

Inner And Outer Pressure Rotor

420888824

$12.85

15

Oil Pump Cover

420210056

$39.52

16

Thrust Washer

420227063

$3.94

17

Retaining Ring

420245123

$4.19

18

Torx Flange Screw M6 X 16

420440164

$1.67
