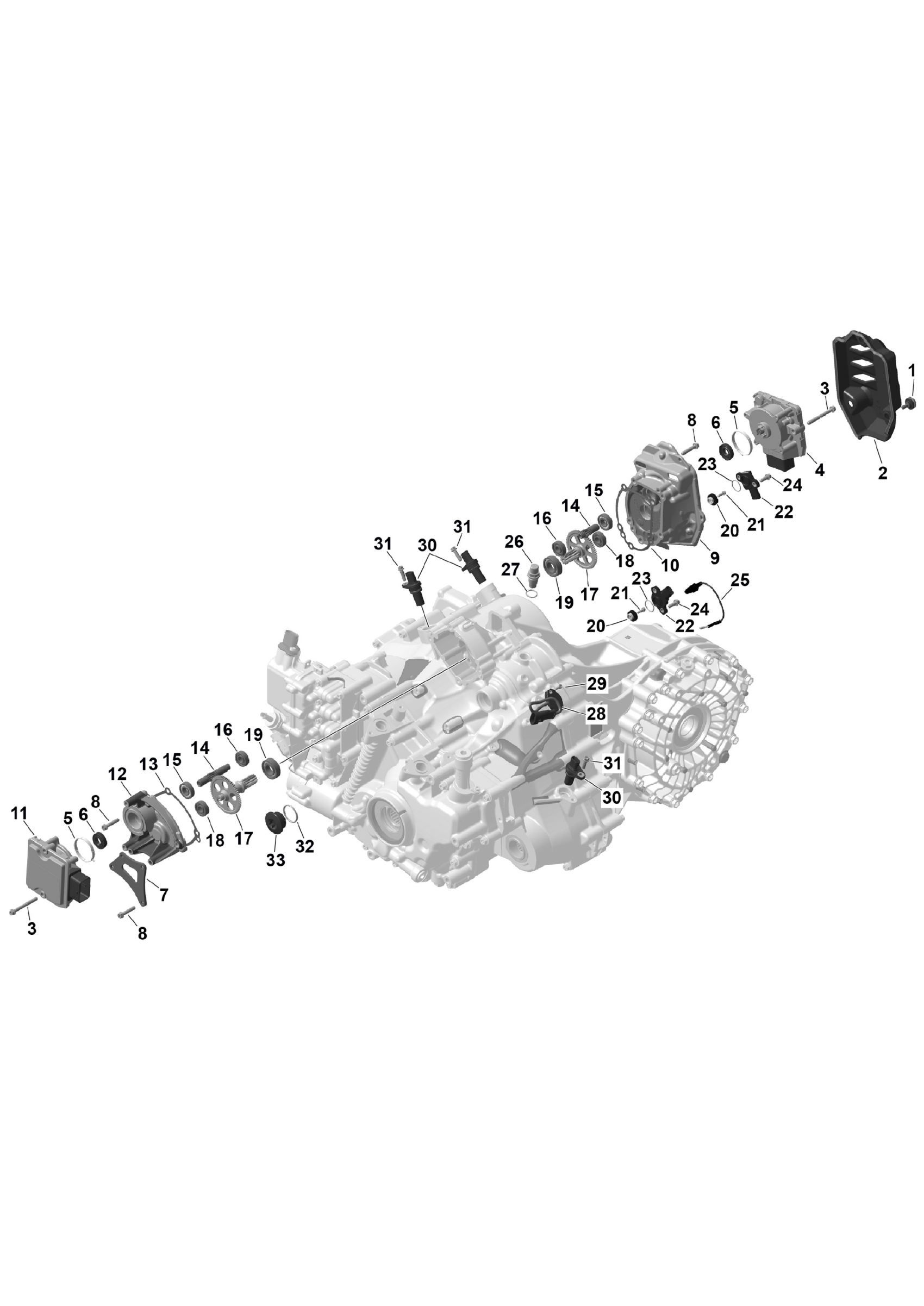

Can-Am CE - Maverick R Max - 996NT2 - XRS SAS - 7DTA - Timeless Black Metallic - 77" Width, 2026 ROTAX - GearBox Servo Motors Diagram

#

Description
Price

1

Torx Flange Screw M6 X 20

420440207

$2.54

2

Lateral Guard

420201354

$46.12

3

Torx Flange Screw M6 X 55

420440701

$0.83

4

Servo Motor Ass'y

420685685

$424.58

5

Gasket

420431660

$10.52

6

Oil Seal

420250452

$17.66

7

Support Bracket

420251101

$16.89

8

Torx Flange Screw M6 X 30

420440647

$1.97

9

Servo Motor Cover

420201601

$78.43

10

Gasket

420230064

$18.43

11

Servo Motor Ass'y

420685686

$424.58

12

Actuator Cover

420201605

$36.89

13

Gasket

420230061

$18.43

14

Driven Shaft Ass'y | Includes 13-15

420220255

$99.97

15

Balll Bearing

420232400

$22.79

16

Ball Bearing

420232100

$15.57

17

Double Gear Ass'y 11/66 Teeth | Includes 16-18

420234755

$189.20

18

Ball Bearing 6000

420232101

$18.43

19

Ball Bearing 6003

420232626

$41.51

20

Ball Bearing 6000

420232101

$18.43

21

Ball Bearing 6003

420232626

$41.51

22

Magnet

420256003

$17.66

23

Allen Screw M4X12 8.8 MK

420440297

$0.91

24

Angle Of Rotation Sensor

420265122

$78.43

25

O-Ring

420230405

$4.60

26

Torx Flange Screw M6 X 16

420440162

$3.11

27

3 Position Switch

420640192

$41.51

28

Index Screw M16X1.5 Ass'y

420441397

$15.35

29

Gasket Ring

420430624

$1.51

30

Position Sensor

420665977

$110.74

31

Allen Screw M4X12 8.8 MK

420440297

$0.91

32

Not Available As Spare Parts

XXX

Unavailable

33

Not Available As Spare Parts

XXX

Unavailable
