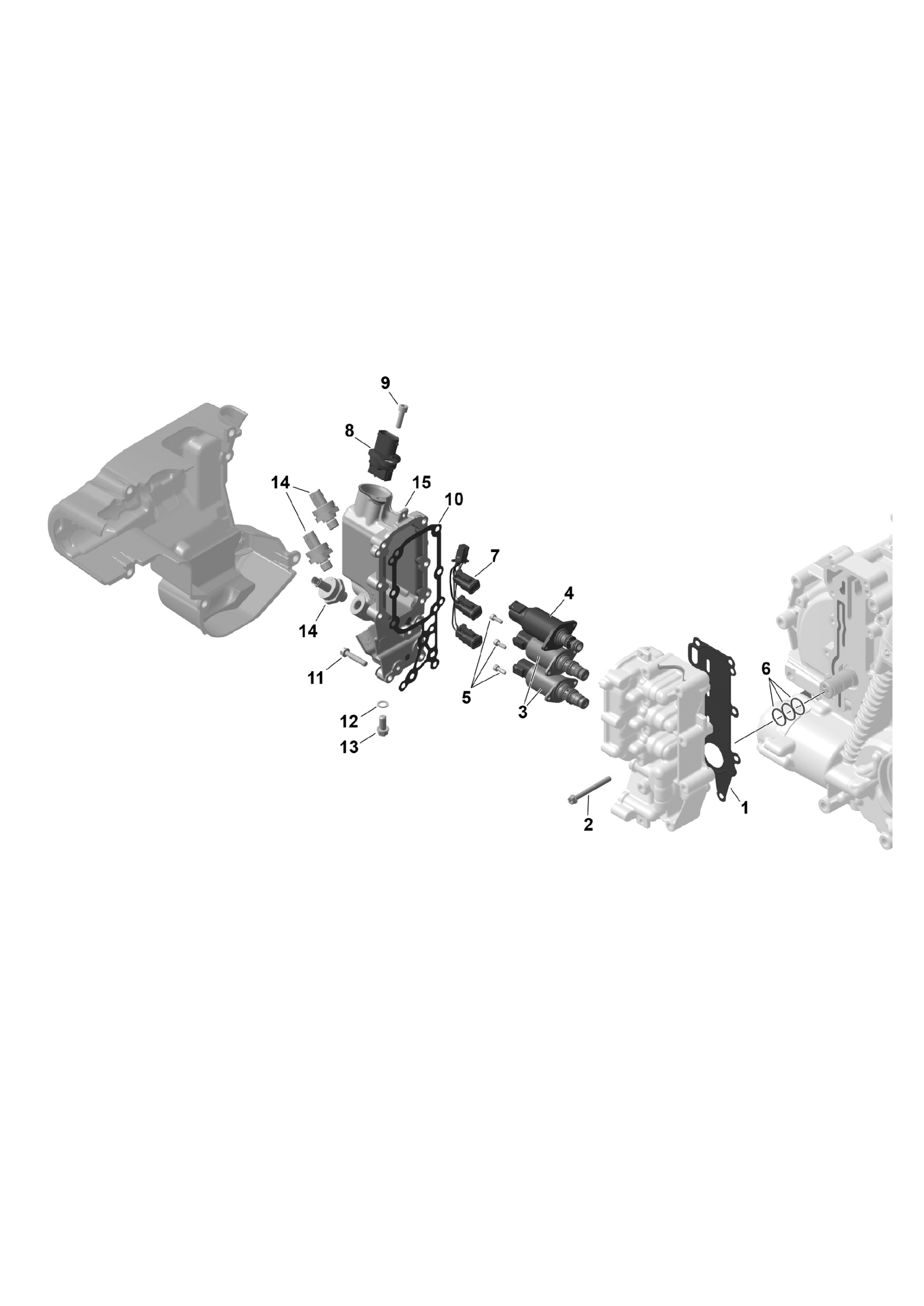

Can-Am CE - Maverick R Max - 996NT2 - XRS SAS - 7DTA - Timeless Black Metallic - 77" Width, 2026 ROTAX - GearBox Hydraulic Housing Diagram

#

Description
Price

1

Sealing

420230012

$3.43

2

Torx Flange Screw M6 X 55

420440701

$0.96

3

Solenoid Valve

420664634

$216.39

4

Solenoid Valve

420664632

$101.46

5

Allen Screw M4X12

420440294

$0.94

6

SEALING RING - Call your local BRP dealership

420201155

$22.36

7

Intern Gearbox Wiring Harness

420264106

$60.42

8

Multiple Connector

420264552

$30.57

9

Allen Screw M6x20

420241935

$0.96

10

Gasket

420431053

$17.13

11

Torx Flange Screw M6 X 30

420440647

$1.91

12

Sealing Ring

420950141

$1.88

13

Torx Flange Screw M8 X 16

420440852

$3.88

14

Pressure Sensor

420666081

$126.09

15

Hydraulic Valve Cover

420210196

$73.10
