Partiron

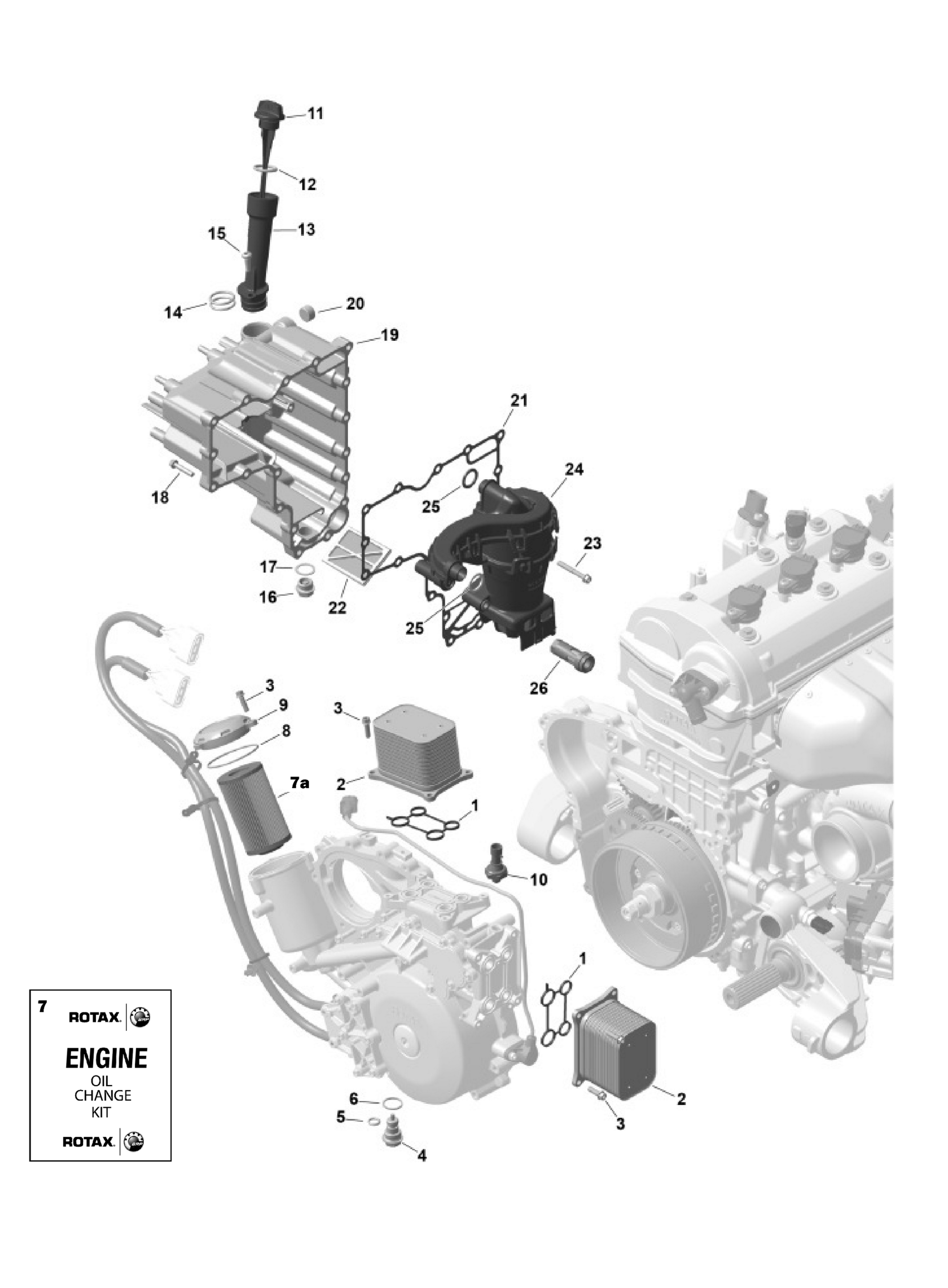

Can-Am CE - Maverick R Max - 996NT2 - XRS SAS - 7DTA - Timeless Black Metallic - 77" Width, 2026 ROTAX - Engine Lubrication Diagram

#

Description
Price

1

Gasket

420431871

$10.13

2

Oil Water Heat Exchanger

420656687

$138.78

3

Torx Flange Screw M6 X 20

420440207

$2.91

4

Magnet Screw M20 X 1.5

420441682

$8.10

5

O-Ring

420430115

$2.19

6

Gasket Ring A

420630651

$1.85

7

CAN-AM Oil Change Kit 5W40 ROTAX 99

9779500

$82.06

7

Can-Am Oil Change Kit 10W50 Rotax 9

9779501

$86.54

7a

Oil Filter

420956747

$19.37

8

O-Ring | Included in gasket kit

420230922

$0.85

9

Oil Filter cover

420612135

$10.78

10

Oil Pressure Switch

420256915

$37.28

11

Oil Dipstick

420656033

$6.66

12

O-Ring

420631640

$2.00

13

Oil Filler Tube

420656905

$6.66

14

O-Ring

420430440

$3.49

15

Torx Flange Screw M6 X 20

420441386

$2.00

16

Drain Plug M18 X 1.5

420840278

$22.36

17

Crush Washer

420552280

$3.43

18

Torx Flange Screw M6 X 30

420440647

$1.91

19

Oil Sump Cover

420612421

$103.70

20

Plug Screw M18 X 1.5 - Call your local BRP dealership

420240170

$7.01

21

Gasket

420230039

$17.13

22

Oil Sieve

420956950

$14.33

23

Torx Flange Screw M6 X 45

420440324

$0.93

24

Blow By Seperator Ass'y | Includes 24-25

420856775

$101.46

25

Gasket

420230551

$18.63

26

Pressure Valve Regulator Ass'y

420456143

$44.00
