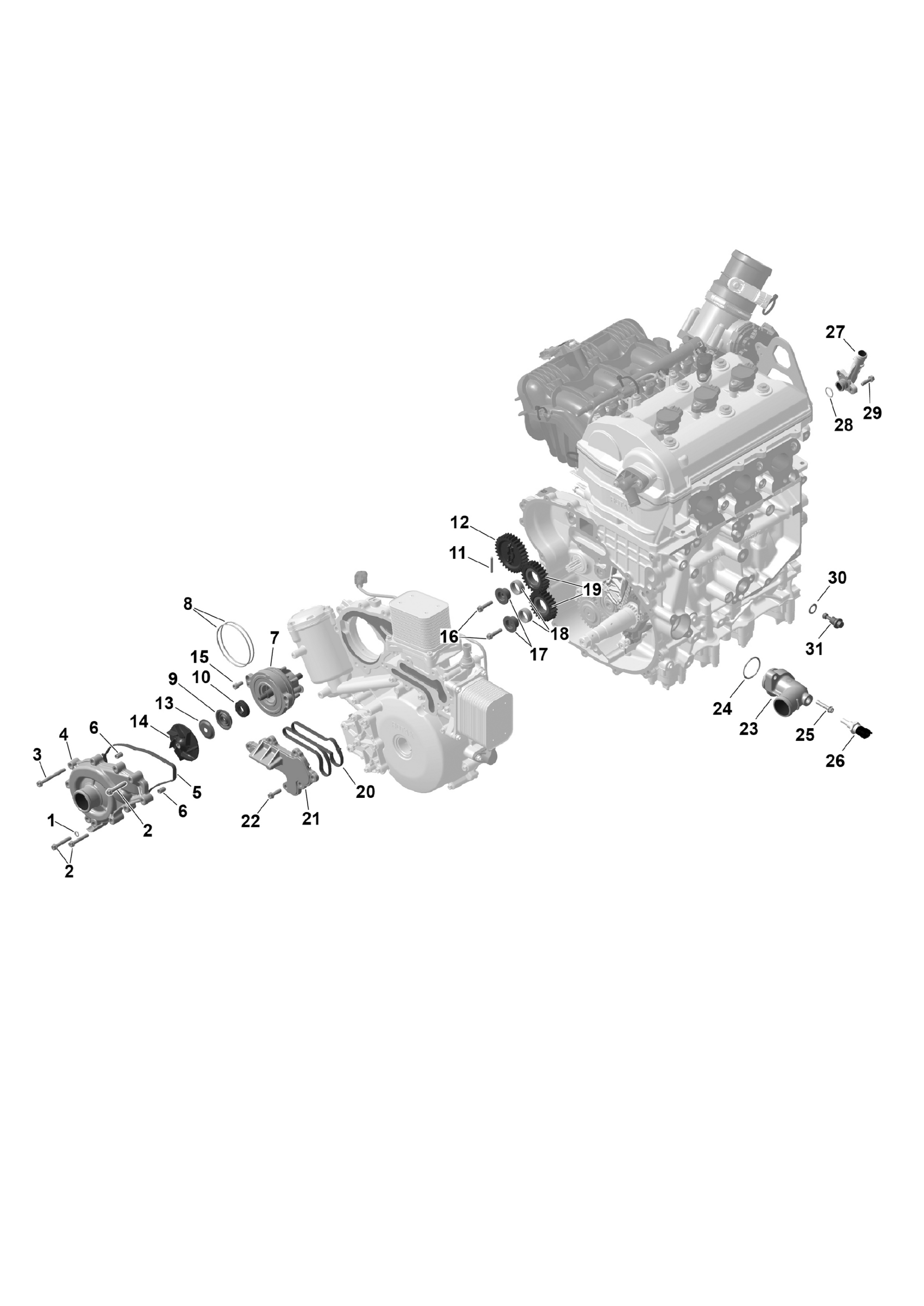

Can-Am CE - Maverick R Max - 996NT2 - XRS SAS - 7DTA - Timeless Black Metallic - 77" Width, 2026 ROTAX - Engine Cooling Diagram

Description

Price

Seal Washer

420230415

$1.72

Torx Flange Screw M6 X 35

420440274

$0.96

Torx Flange Screw M6 X 55

420440702

$2.91

Water Pump Cover

420222072

$80.57

Gasket

420230015

$17.13

Dowel Iso 13337 - 8X12 - St

420949901

$4.28

Water Pump Ass'y | Includes no. 7-14 This part replaces 420281504.

420281504

$326.84

O-Ring

420931380

$11.82

Not Available As Spare Parts

XXX

Unavailable

Not Available As Spare Parts

XXX

Unavailable

Needle Pin

420232432

$4.21

Waterpump Gear 31 Teeth

420234283

$30.57

Cover Washer

420944035

$5.06

Impeller

420922804

$16.39

Allen Screw M6 X 12

420840032

$4.15

Torx Flange Screw M6 X 25

420440234

$2.91

Graduated Spacer

420947398

$25.34

Needle Bearing

420232664

$18.63

Intermediate Gear 25 Teeth

420234058

$92.51

Gasket

420430675

$17.13

Water Duct Cover

420810475

$19.37

Torx Flange Screw M6 X 20

420440207

$2.91

Bent Outlet Socket

420822085

$26.84

O-Ring

420230911

$4.07

Torx Flange Screw M6 X 30

420440647

$1.91

Temperature Sensor

278002895

$36.54

Bent Outlet Socket

420822082

$26.84

O-Ring

420631296

$0.72

Torx Flange Screw M6 X 20

420440207

$2.91

Copper Washer

420250640

$0.93

Plug Screw M12X1.5

420641320

$12.64
