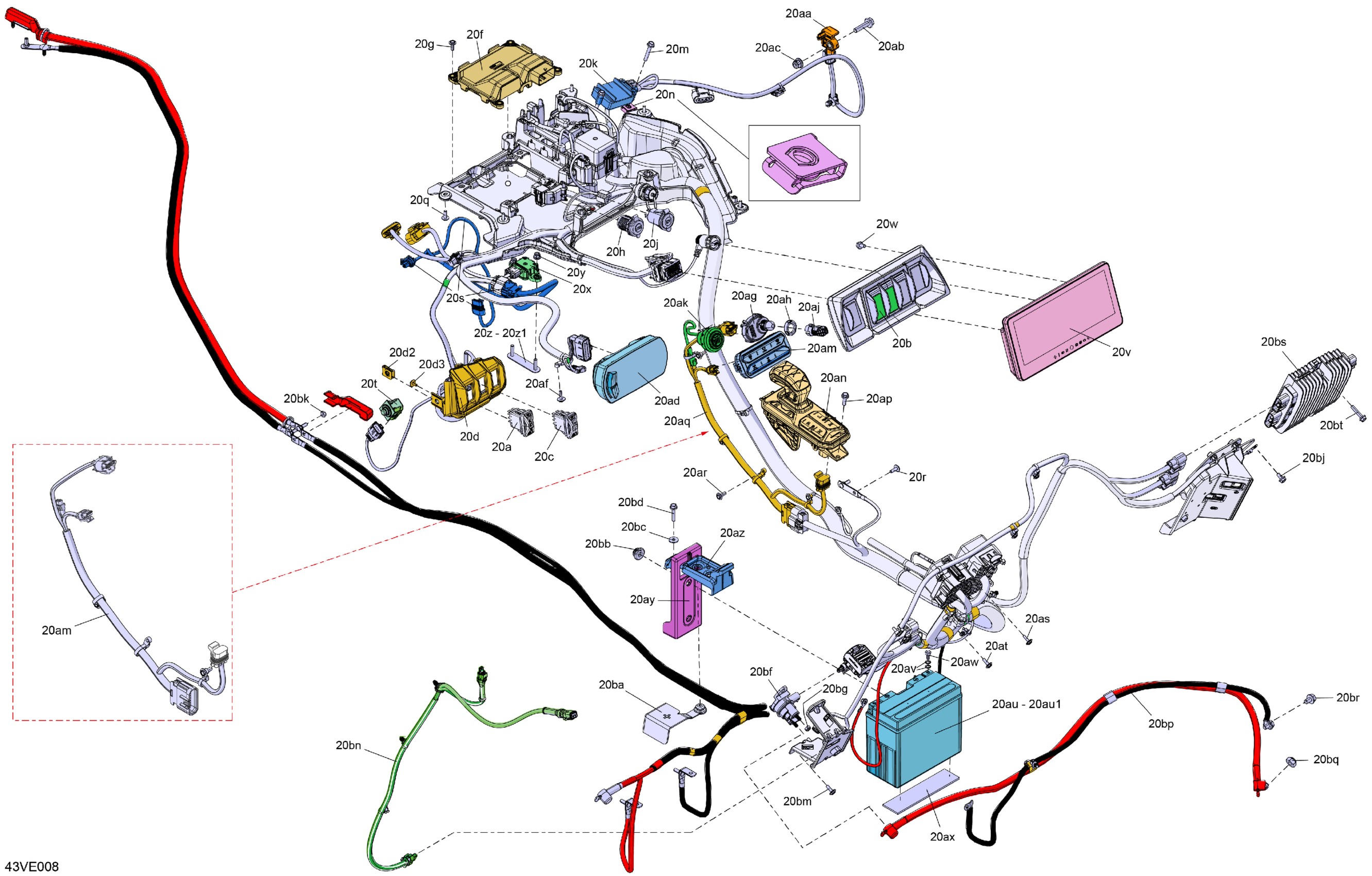

Can-Am CE - Maverick R MAX - 996NT2 - XRS SAS - 7DSP - Dusty Navy - 77" Width, 2025 Electric - Central Electric Diagram

#

Description
Price

20a

Light Switch

710007663

$44.00

20b

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$7.60

20c

Horn Switch

710007664

$21.61

20d

Switch Support Ass'y | Includes 20d to 20d3

710009476

$15.64

20d2

Panel Nut M6 X 1.0

250100208

$1.22

20d3

Plastite Screw M4 X 10

250000805

$2.00

20f

BCM Moldule OPT #1

710010598

$939.99

20g

Screw PT Type K-50 X 16

250000959

$2.00

20h

USB Outlet

219400510

$43.99

20j

12V Power Outlet

710005374

$31.31

20k

GPS

278004506

$98.48

20m

Hex. Flange Screw S.Grip M6 X 35

207563544

$2.00

20n

Panel Nut M6 X 1.0

250100208

$1.22

20q

Screw PT Type K-50 X 16

250000959

$2.00

20r

Screw PT Type K-50 X 16

250000959

$2.00

20s

Accelerator Pedal Wiring Harness

710008927

$205.94

20t

Door Switch

710010023

$68.63

20u

Screw PT Type K-50 X 16

250000959

$2.00

20v

Multifunction Gauge 10

710010375

$2,012.66

20w

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.79

20x

Inertial Sensor

710010113

$370.87

20y

Hex. Flange Elastic Nut M6

233261494

$1.45

20z

Sensor Support | Includes 1825 to 1825a

710009676

$14.49

20z1

Sensor Support ED

710009651

$14.49

20aa

Sensor

710009009

$62.66

20ab

Hex. Flange Screw M6 X 25

207662554

$1.43

20ac

Hex. Flange Elastic Nut M6

233261494

$1.45

20ad

Multifunction Compact Gauge

710008298

$347.73

20af

Screw M4 X 16

250000725

$3.30

20ag

Terminal DESS CAN | CARB Vehicle

710008832

$69.37

20ah

Specialized Nut

278004274

$3.12

20aj

Grey Key RFID | Except Model Europe, Except T3

710004964

$53.70

20ak

Start-Stop Button | Not Shown

710005213

$55.94

20am

Multifunction Switch

710010054

$117.88

20an

Electronic Gear Shift Lever

710007338

$290.27

20ap

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.00

20aq

Console Wiring Harness

710007667

$91.76

20ar

Screw PT Type K-50 X 16

250000959

$2.00

20as

Screw M4 X 16

250000725

$3.30

20at

Screw PT Type K-50 X 16

250000959

$2.00

20au

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$142.45

20au1

Battery Bolt Kit

250000282

$3.39

20av

Washer | Not Shown

710009082

$0.99

20aw

Screw | Not Shown

710009084

$1.48

20ax

Rubber Pad

293830126

$12.64

20ay

Fixation Plate

710004788

$9.48

20az

Battery Support

710009128

$6.72

20ba

Battery Cable Cap

710006471

$2.59

20bb

Stopper Rubber

705014429

$6.09

20bc

Flat Washer 6 mm

234062410

$0.73

20bd

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.15

20bf

Starter Relay

278003012

$40.27

20bg

Elastic Stop Nut M6, Brass

232561200

$4.03

20bj

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.79

20bk

Elastic Stop Nut M6, Brass

232561200

$4.03

20bm

Screw PT Type K-50 X 16

250000959

$2.00

20bn

Junction Wiring Harness

710008618

$391.76

20bp

Starter Wiring Harness

710010036

$64.15

20bq

Elastic Stop Nut M6, Brass

232561200

$4.03

20br

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.04

20bs

Voltage Regulator

710007558

$335.04

20bt

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00
