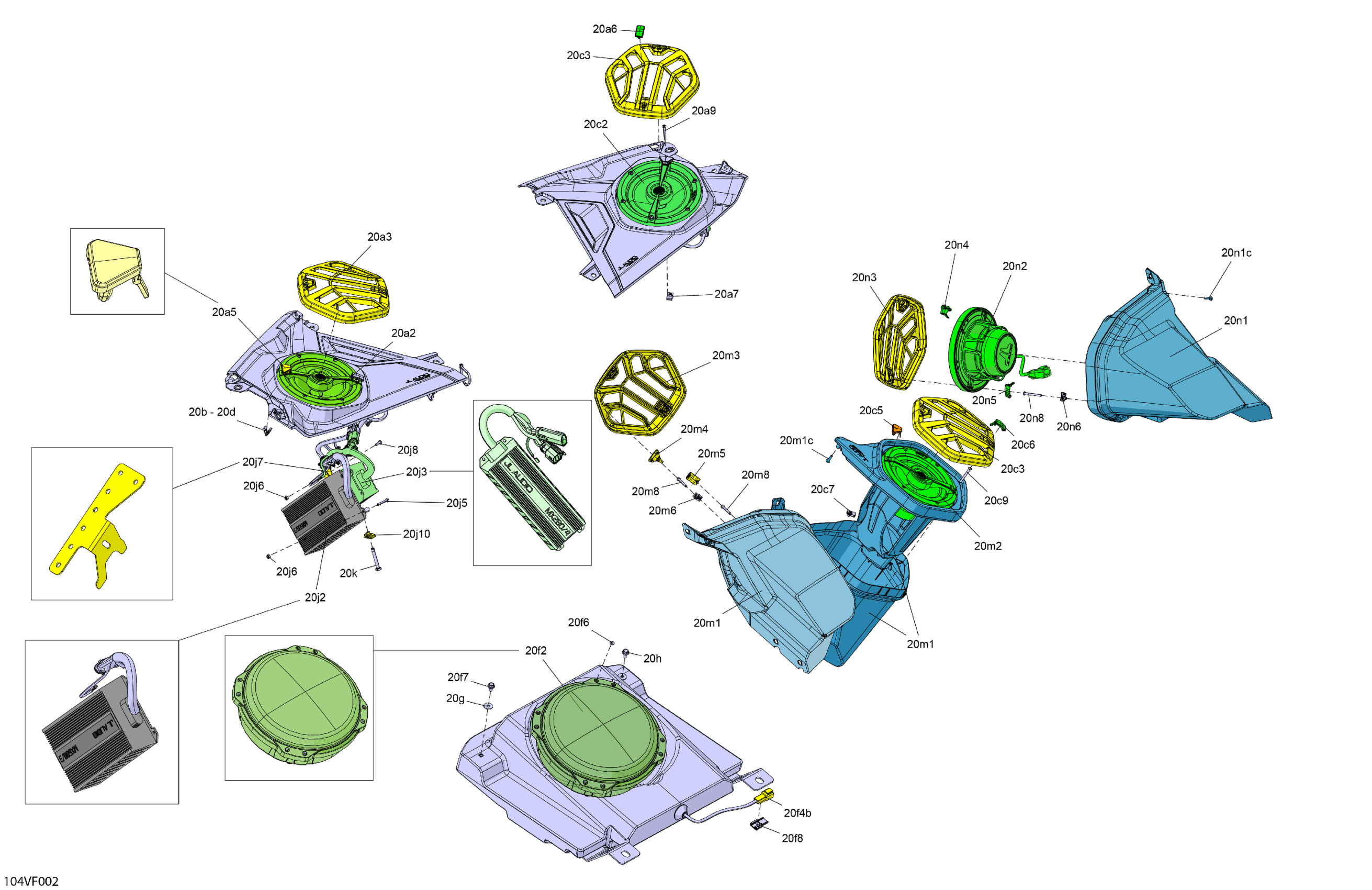

Can-Am CE - Maverick R Max - 996NT2 - XRC SAS - 7GTG - Loft Green Satin - 77" Width, 2026 Electric - Audio System Diagram

Description

Price

20a2

Mid Range Loudspeaker Ass'y Config 6

710009523

$339.99

20a3

Overmolded Speaker Grille

710008031

$56.99

20a5

Upper Semi-Rigid Cap

293830221

$4.29

20a6

Lower Semi-Rigid Cap

293830222

$4.29

20a7

Extruded Panel Nut M4 X 0.7

250100143

$8.49

20a9

Socket Head Screw M4 X 40

205444056

$2.11

20b

Clip

517306478

$1.09

20c2

Mid Range Loudspeaker Ass'y Config 6

710009523

$339.99

20c3

Overmolded Speaker Grille

710008031

$56.99

20c5

Upper Semi-Rigid Cap

293830221

$4.29

20c6

Lower Semi-Rigid Cap

293830222

$4.29

20c7

Extruded Panel Nut M4 X 0.7

250100143

$8.49

20c9

Socket Head Screw M4 X 40

205444056

$2.11

20d

Clip

517306478

$1.09

20f2

Bass Loudspeaker

710007962

Unavailable

20f4b

Male Housing, 2 Circuits

409206900

$9.59

20f6

Flat Washer 4 mm

234041480

$0.74

20f7

Hex. Flange Screw M6 X 12

207661254

$2.11

20f8

Deutsch Connector Support

710006744

$3.49

20g

Stainless Steel Flat Washer

234062670

$2.11

20h

Hex. Flange Screw M6 X 12

207661254

$2.11

20j2

AudioAmplifier Mx500/1-Plug

710007970

$868.99

20j3

Audio Amplifier

710008954

$677.99

20j5

Hex. Screw M4 X 25

207142544

$2.00

20j6

Elastic Stop Nut M4

232541484

$0.74

20j7

Support

705801300

$26.99

20j8

Torx Head Screw M4 X 12

250000915

$2.96

20j9

LED Module

278004260

$158.99

20j10

Panel Nut M6 X 1.0

250100198

$2.11

20k

Hex. Screw M6 x 45, Scotch Grip

207364560

$1.89

20m1

LH Rear Speaker Enclosure Ass'y | Includes 20m1 to 20m1d

710009030

$319.99

20m1c

Torx-Truss Pt K40 X 16

250000759

$2.11

20m2

Mid Range Loudspeaker Ass'y Config 6

710009523

$339.99

20m3

Overmolded Speaker Grille

710010766

$56.99

20m4

Upper Semi-Rigid Cap

293830221

$4.29

20m5

Lower Semi-Rigid Cap

293830222

$4.29

20m6

Extruded Panel Nut M4 X 0.7

250100143

$8.49

20m8

Socket Head Screw M4 X 40

205444056

$2.11

20n1

RH Rear Speaker Enclosure Ass'y | Includes 20n1 to 20n1d

710009031

$319.99

20n1c

Torx-Truss Pt K40 X 16

250000759

$2.11

20n2

Mid Range Loudspeaker Ass'y Config 6

710009523

$339.99

20n3

Overmolded Speaker Grille

710010766

$56.99

20n4

Upper Semi-Rigid Cap

293830221

$4.29

20n5

Lower Semi-Rigid Cap

293830222

$4.29

20n6

Extruded Panel Nut M4 X 0.7

250100143

$8.49

20n8

Socket Head Screw M4 X 40

205444056

$2.11
