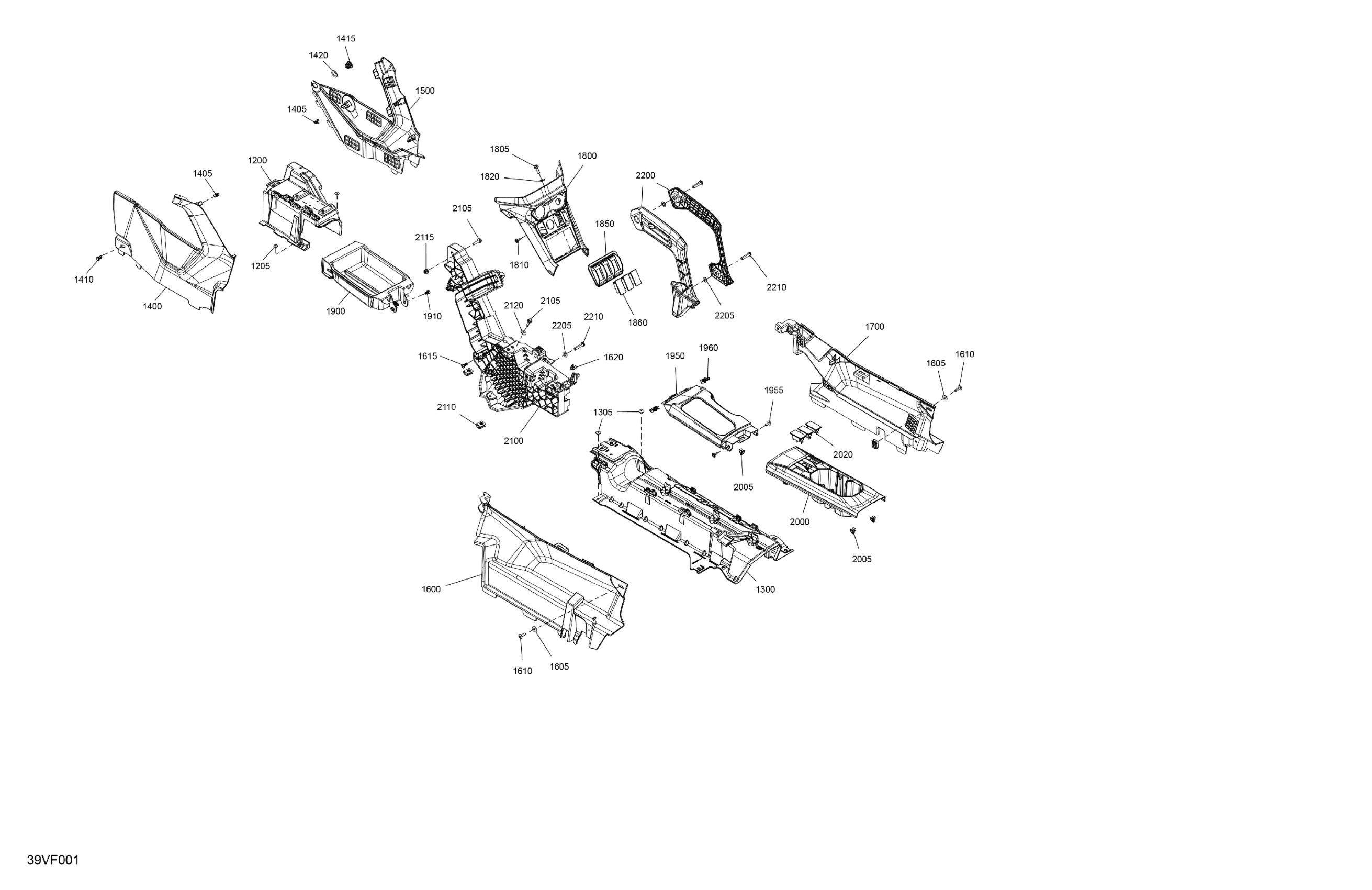

Can-Am CE - Maverick R Max - 996NT2 - XRC SAS - 7GTG - Loft Green Satin - 77" Width, 2026 Cab Interior - Center Console Diagram

Front Console Support

707901234

$58.93

Black, Pop Rivet 3/16 X ,550

293150292

$0.99

Central Console Support

707900943

$58.93

Black, Pop Rivet 3/16 X ,550

293150292

$0.99

LH Front Console Panel

707900900

$66.39

Clip

517306478

$1.03

Tuflok Plastic Rivet

293150230

$1.39

Insert

707900133

$2.89

Washer

503189273

$3.10

RH Front Console Panel

707900901

$66.39

LH Central Console Panel

707900897

$66.39

Stainless Steel Flat Washer

234062670

$2.00

Torx Screw M6 X 20

250000722

$1.54

Oval Head Torx Screw K60 X 16

250000546

$2.00

Clip

517306478

$1.03

RH Central Console Panel

707900898

$66.39

Upper Front Console

707900899

$23.85

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.00

Screw PT Type K-50 X 16

250000959

$2.00

Stainless Steel Flat Washer

234062670

$2.00

Switch Support

707901075

$15.64

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$7.60

Front Lower Console

707900984

$23.85

Oval Head Torx Screw K60 X 16

250000546

$2.00

Front Central Console Ass'y

715009653

$36.54

Screw PT Type K-50 X 16

250000959

$2.00

Panel Nut M6 X 1.0

250100208

$1.22

Central Console Ass'y

715009650

$36.54

Clip

517306478

$1.03

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$7.60

Central Support Handle

707901386

$56.69

Hex. Flange Screw M6 X 25

207562544

$1.60

Panel Nut M6 X 1.0

250100208

$1.22

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

Stainless Steel Flat Washer

234062670

$2.00

Overmolded Front Central Holding Handle

707901111

$76.84

Stainless Steel Flat Washer 8 mm

234081670

$0.64

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$1.91
