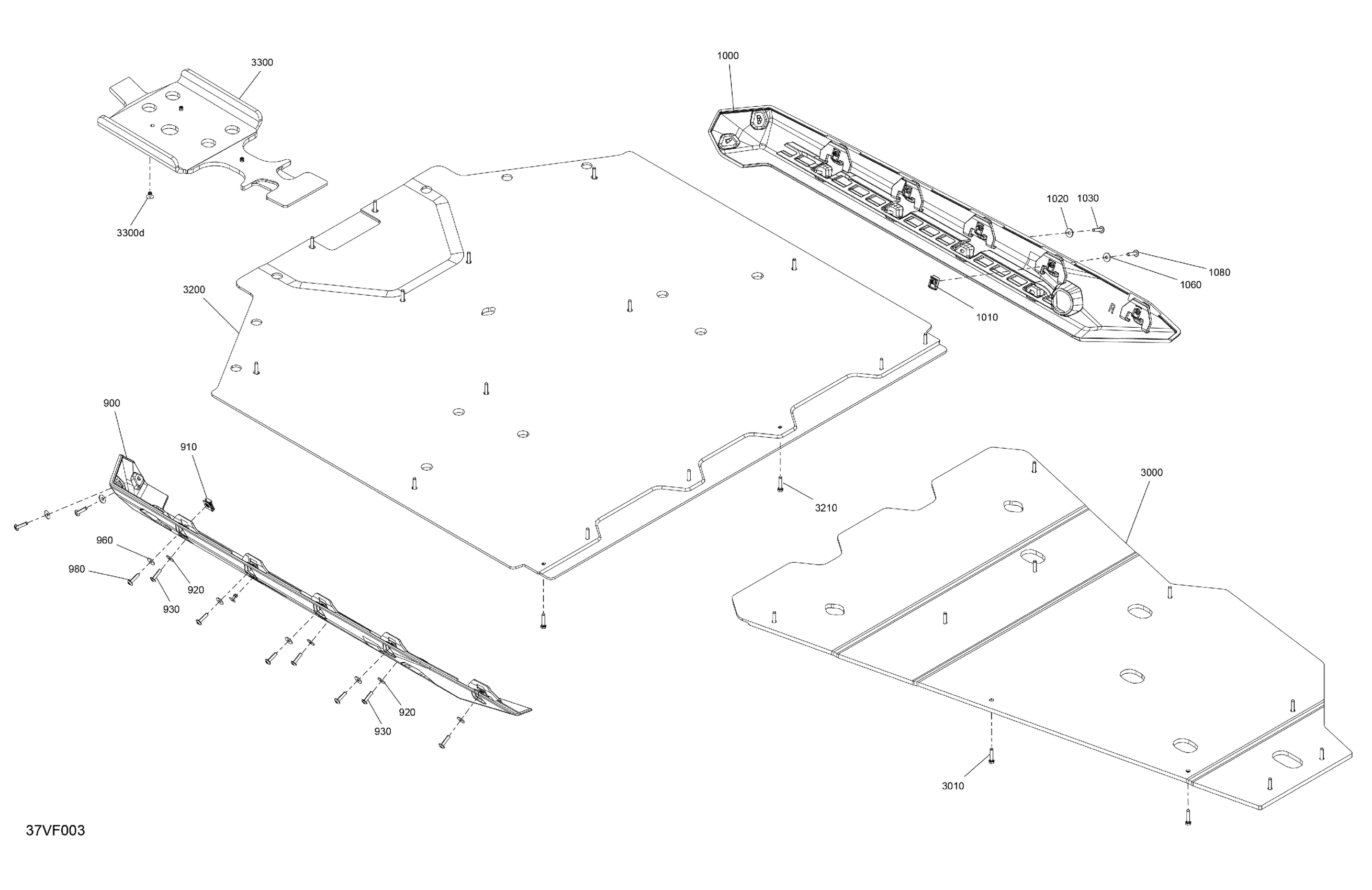

Can-Am CE - Maverick R Max - 996NT2 - XRC SAS - 7GTG - Loft Green Satin - 77" Width, 2026 Body - Skid Plate Diagram

Description

Price

900

Deep Black, LH Rocker Panel Slider

705018880

Unavailable

910

Panel Nut M6 X 1.0

250100208

$1.22

920

Stainless Steel Flat Washer

234062670

$2.00

930

Torx Truss Screw M6 X 25

250000807

$2.00

960

Stainless Steel Flat Washer

234062670

$2.00

980

Torx Truss Screw M6 X 25

250000807

$2.00

1000

Deep Black, RH Rocker Panel Slider

705018881

Unavailable

1010

Panel Nut M6 X 1.0

250100208

$1.22

1020

Stainless Steel Flat Washer

234062670

$2.00

1030

Torx Truss Screw M6 X 25

250000807

$2.00

1060

Stainless Steel Flat Washer

234062670

$2.00

1080

Torx Truss Screw M6 X 25

250000807

$2.00

3000

Rear Skid Plate

705212722

$224.49

3010

Screw Hex Sems Threadlock M6 X 30

250001348

$3.58

3200

Front Skid Plate

705019036

$354.45

3210

Screw Hex Sems Threadlock M6 X 30

250001348

$3.58

3300

Front Skid Plate Kit | Includes 3300 to 3300d

715010328

$354.45

3300d

Black, Ornit Rivet 3/16 X ,675

293150308

$1.19
