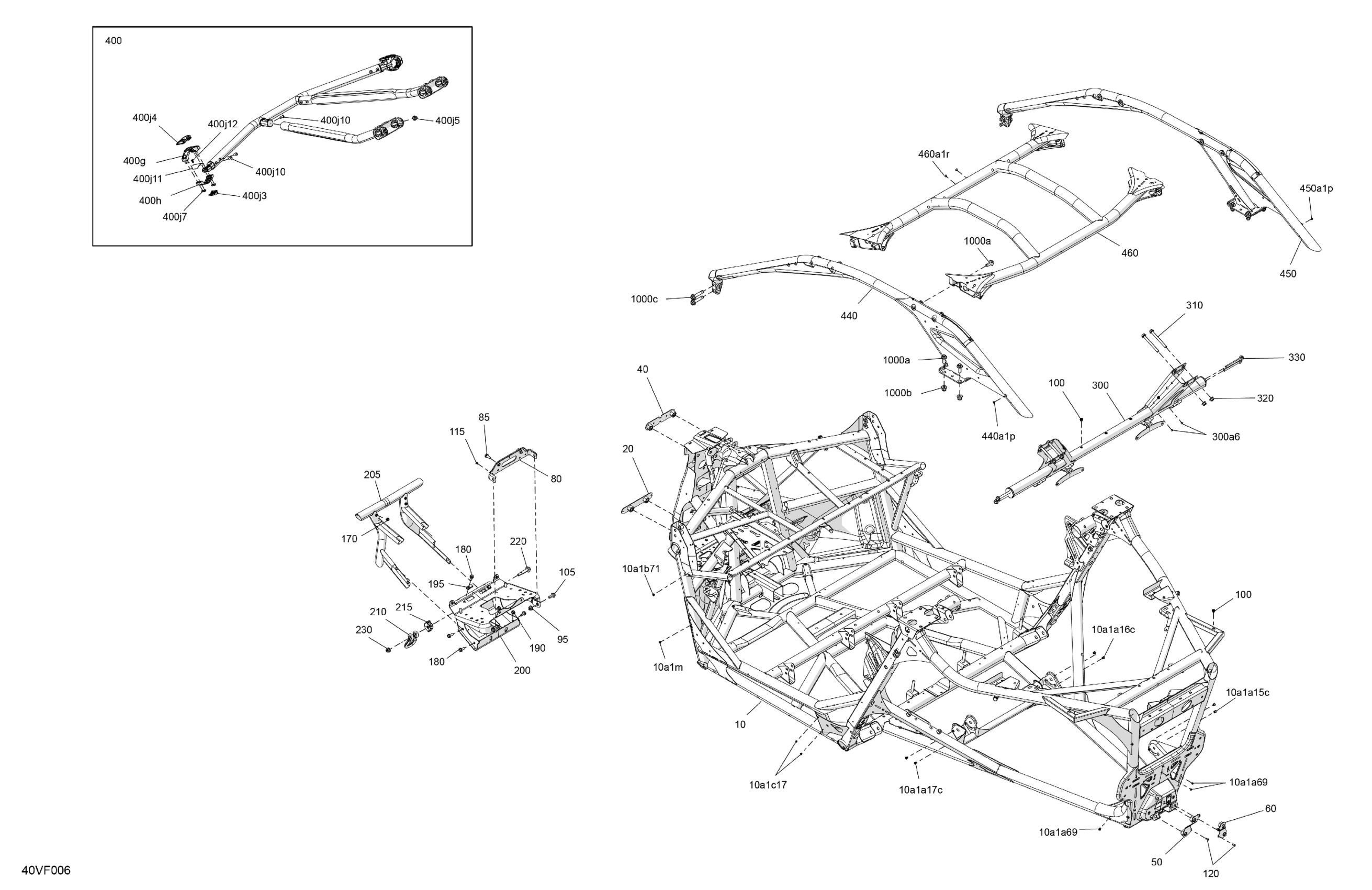

Can-Am CE - Maverick R Max - 996NT2 - XRC SAS - 7GTG - Loft Green Satin - 77" Width, 2026 Frame - System Diagram

#

Description
Price

10

Deep Black, Chassis Ass'y

715010022

$2,969.99

10a1a15c

Pop Rivet 3/16 X ,425

293150293

$0.35

10a1a16c

Pop Rivet 3/16 X ,425

293150293

$0.35

10a1a17c

Pop Rivet 3/16 X ,425

293150293

$0.35

10a1a69

Pop Rivet 3/16 X ,425

293150293

$0.35

10a1b71

Pop Rivet 3/16 X ,425

293150293

$0.35

10a1c17

Pop Rivet 3/16 X ,425

293150293

$0.35

10a1m

Pop Rivet 3/16 X ,425

293150293

$0.35

20

Retaining Plate

705212438

$22.99

40

Retaining Plate

705212518

$22.99

50

Retaining Plate

705209767

$22.99

60

Retaining Plate

705209773

$22.99

80

Interior Bumper Reinforcement

705210435

$34.99

85

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

95

Flange Elastic Nut M10

233201466

$3.17

100

Insert Half Hex Body M6 x 1.0

250100199

$3.19

105

Hex. Flange Screw M10 X 25

207502546

$2.11

115

Pop Rivet 3/16 X ,425

293150293

$0.35

120

Pop Rivet 3/16"

390402300

$0.75

170

Insert Half Hex Body M6 x 1.0

250100199

$3.19

180

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

190

Hex. Flange Nut M8

233181414

$1.15

195

Panel Nut M8 X 1.25

250100118

$2.09

200

Front Bumper

705209762

$264.99

205

Deep Black, Front Bumper Ass'y

715010917

$227.99

210

Forged Tow Hook

705210586

$33.99

215

Bumper Cap

709402854

$0.93

220

Shoulder Screw M10 X 1.5 X 60

250001240

$9.64

230

Flange Elastic Nut M10

233201466

$3.17

300

Safety Belt Anchorage | Includes 300 to 300a6

705209776

$134.99

300a6

Pop Rivet 3/16 X ,425

293150293

$0.35

310

Hex. Screw M10 X 100, Scotch Grip

230500046

$7.41

320

Hex. Flange Nut M10

233101466

$2.96

330

Hex. Screw M10 X 100, Scotch Grip

230500046

$7.41

400

Deep Black, Intrusion Bar | Includes 400 to 400j12

715007312

$478.99

400g

Black, Over Mounting Clamp

705210258

$42.49

400h

Black, Over Mounting Clamp

705210259

$42.49

400j3

Molded Plug

705210355

$26.49

400j4

Molded Cover

705210528

$37.99

400j5

Flange Elastic Nut M10

233201466

$3.17

400j7

Elastic Stop Nut M6 | Model-Australie, Brezil, Europe

232561494

$0.58

400j10

Torx Screw M8 X 16

250000751

$6.11

400j11

Formed Shim

705211104

$20.49

400j12

Dart

293730062

$2.09

440

Deep Black, LH Cage Ass'y

715010924

$619.99

440a1p

Pop Rivet 3/16 X ,425

293150293

$0.35

450

Deep Black, RH Cage Ass'y

715009621

$399.99

450a1p

Pop Rivet 3/16 X ,425

293150293

$0.35

460

Deep Black, Central Cage Ass'y

715009628

$399.99

460a1r

Pop Rivet 3/16" | DS 650 X

390402000

$0.33

1000a

Hex. Flange Screw M12 X 30, Scotch Grip

207523056

$6.14

1000b

Elastic Flange Nut M12

250001195

$2.64

1000c

Flange Screw M12 X 60

250000857

$7.41
