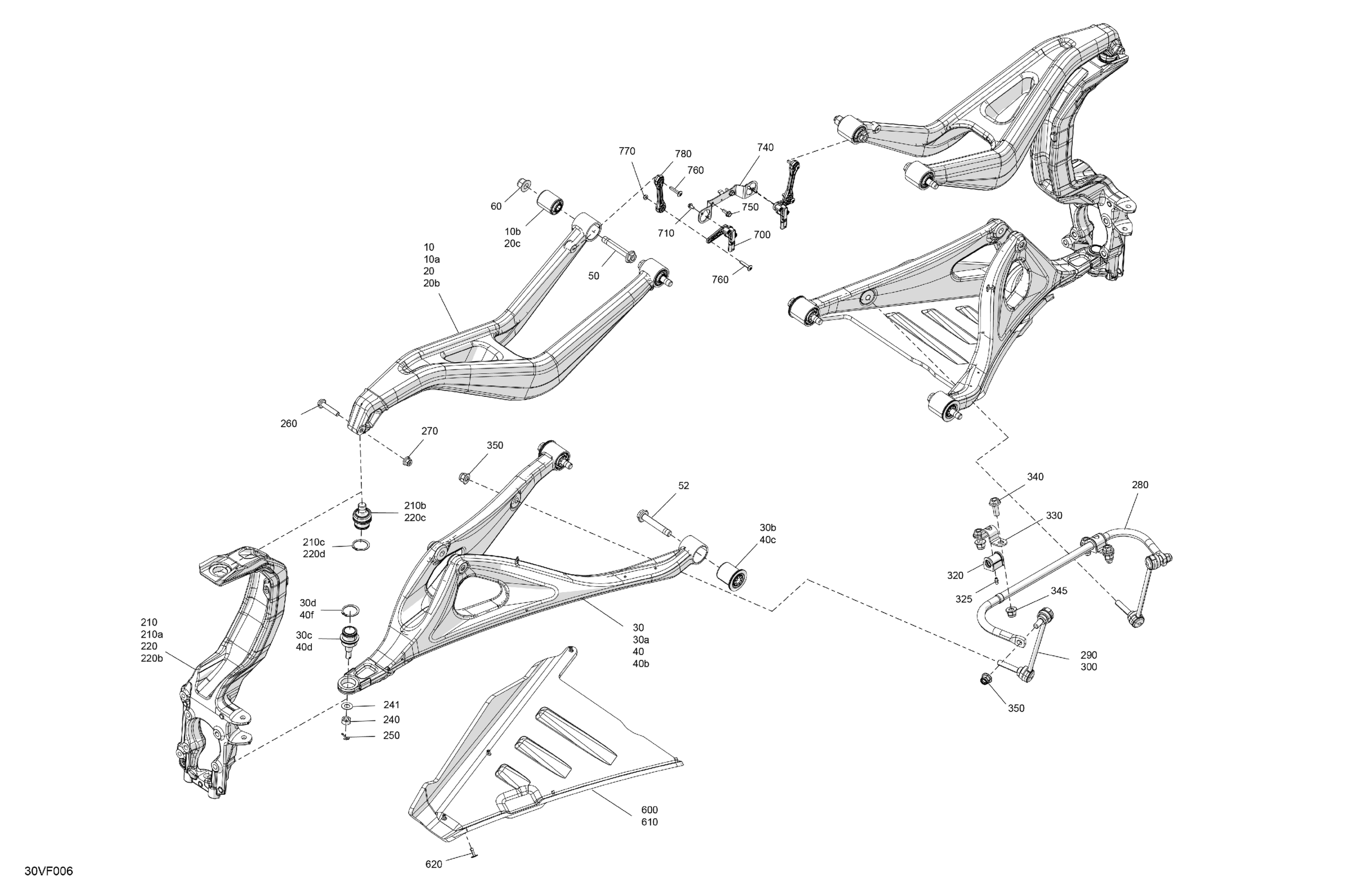

Can-Am CE - Maverick R Max - 996NT2 - XRC SAS - 7GTG - Loft Green Satin - 77" Width, 2026 Suspension - Front Components Diagram

#

Description
Price

10

Deep Black, LH Upper Suspension Arm Ass'y | Includes 10 to 10b

715010162

$394.00

10a

Not Available As Spare Parts

XXX

Unavailable

10b

Suspension Arm Bushing

706205620

$12.67

20

Deep Black, RH Upper Suspension Arm Ass'y | Includes 20 to 20b

715010163

$394.00

20b

Not Available As Spare Parts

XXX

Unavailable

20c

Suspension Arm Bushing

706205620

$12.67

30

Deep Black, LH Lower Suspension Arm Ass'y | Includes 30 to 30d

715010168

$492.51

30a

Not Available As Spare Parts

XXX

Unavailable

30b

Suspension Arm Bushing

706205895

$12.67

30c

Ball Joint

706203084

$34.30

30d

Circlip

293370035

$2.48

40

Deep Black, RH Lower Suspension Arm Ass'y | Includes 40 to 40d

715010169

$492.51

40b

Not Available As Spare Parts

XXX

Unavailable

40c

Suspension Arm Bushing

706205895

$12.67

40d

Ball Joint

706203084

$34.30

40f

Circlip

293370035

$2.48

50

Hex. Flange Screw Din.6921 M14X2X85

250001176

$6.99

52

Hex. Flange Screw Din.6921 M14X2X85

250001176

$6.99

60

Hex. Flange Elastic Nut M14

250001166

$12.06

210

Deep Black, LH Front Knuckle Ass'y | Includes 210 to 210c

715011408

$492.51

210a

Not Available As Spare Parts

XXX

Unavailable

210b

Ball Joint

706202045

$34.30

210c

Circlip

293370035

$2.48

220

Deep Black, RH Front Knuckle Ass'y | Includes 220 to 220d

715011409

$492.51

220b

Not Available As Spare Parts

XXX

Unavailable

220c

Ball Joint

706202045

$34.30

220d

Circlip

293370035

$2.48

240

Hex Nut M12

250100239

$1.88

241

Hardened Washer

706200281

$2.69

250

Cotter Pin

211400017

$0.28

260

Hex. Flange Screw M10 X 50

207605056

$3.58

270

Flange Elastic Nut M10

233201466

$3.01

280

Stabilizer Bar Ass'y

706205633

$138.03

290

LH Front Stabilizer Link

706205574

$85.04

300

RH Front Stabilizer Link

706205575

$85.04

320

Stabilizer Bar Bushing

706205632

$13.52

325

Grease Fitting

408200700

$3.21

330

Mounting Clamp

706205649

$6.19

340

Hex. Flange Screw DIN.6921

250000951

$6.28

345

Elastic Flange Nut M12

250001195

$2.46

350

Elastic Flange Nut M12

250001195

$2.46

600

LH Front Suspension Arm Guard

706206348

$106.49

610

RH Front Suspension Arm Guard

706206349

$106.49

620

Black, Ornit Rivet 3/16 X ,800

293150306

$1.04

700

Position Sensor

710009195

$62.66

710

Hex. Flange Screw M5x10

207551056

$1.81

740

Front Sensor Support

706204861

$34.30

750

Hex. Flange Screw M6 X 16

207661654

$2.00

760

Stainless, Torx Screw M6 X 30

250000842

$2.00

770

Elastic Stop Nut M6 | Model-Australie, Brezil, Europe

232561494

$0.55

780

Link

706203429

$17.88
