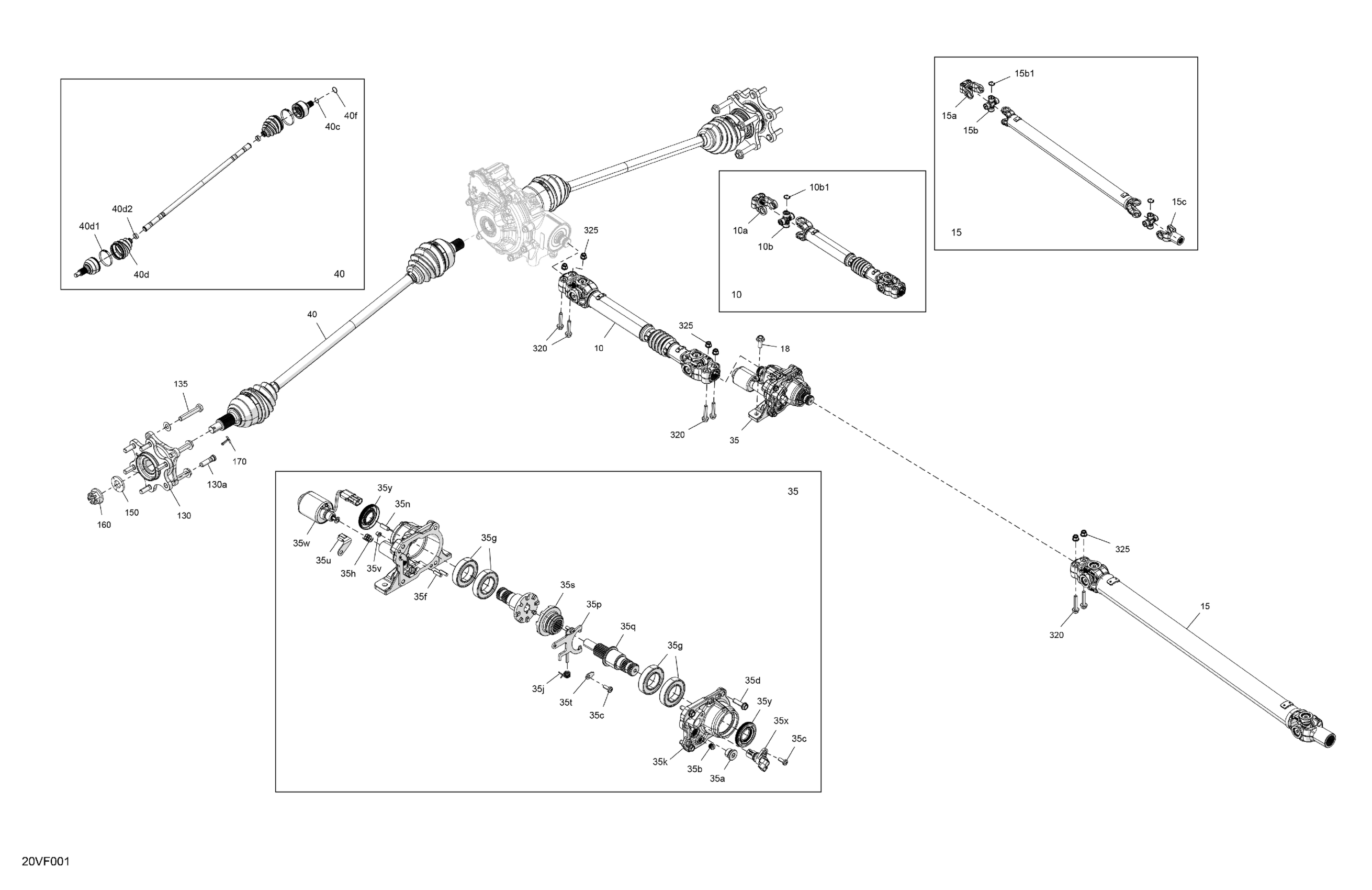

Can-Am CE - Maverick R Max - 996NT2 - XRC SAS - 7GTG - Loft Green Satin - 77" Width, 2026 Drive - Front - Common Parts Diagram

Description

Price

Drive Axle Ass'y | Includes 10 to 10b1

705403567

$236.54

10a

Yoke

715900969

$32.81

10b

Universal Joint Ass'y | Includes 10b to 10b1

715900908

$49.22

10b1

Circlip

715900909

$1.25

Drive Axle Ass'y | Includes 15 to 15c

705403801

$236.54

15a

Yoke

715900967

$32.81

15b

Universal Joint Ass'y | Includes 10b to 10b1

715900908

$49.22

15b1

Circlip

715900909

$1.25

15c

Yoke

715900968

$32.81

Hex. Flange Screw M10 X 25

207502546

$2.00

Clutch Ass'y | Includes 35 to 35y

705403619

$352.21

35a

Fill Level Plug

705501889

$18.63

35b

Fill Level Plug M10

715900563

$25.34

35c

Torx Screw M6 X 16

705402845

$9.25

35d

Bolt

705501886

$6.30

35f

Dowel Pin

715900559

$6.16

35g

Ball Bearing

705402847

$44.75

35h

Compression Spring

715900756

$12.21

35j

Return Torsion Spring

715900884

Unavailable

35k

Cover

715900885

Unavailable

35n

Vent Tube 1/4

715900887

$10.31

35p

Shift Fork Pivot

715900888

Unavailable

35q

Output Shaft

715900889

Unavailable

35s

Disconnect Dog

715900960

$72.36

35t

Retainer Fork | Not Shown

715900766

$10.78

35u

Solenoid Clip Bracket

715900893

$12.64

35v

Vent Cap 5/16

715900533

$6.30

35w

Solenoid

715900894

$217.13

35x

Position Sensor

715900895

$104.45

35y

Triple Lip Seal 27.5X55.0X7.5

715900896

$44.00

CV Joint | Includes 40 to 40f

705402490

$223.85

40c

Circlip

715900924

$5.10

40d

Boot Kit, Wheel Side | Includes 230d to 230d2

715900450

$39.52

40d1

Oetiker Clamp, Large

715900455

$9.90

40d2

Oetiker Clamp, Small

715900456

$5.54

40f

O-Ring

715900925

$2.43

130

Front Wheel Hub Ass'y | Includes 130 to 130a

705403495

$147.73

130a

Wheel Stud

715900797

$3.66

135

Hex. Flange Screw Din.6921 M12X1.5X70

250001179

Unavailable

150

Conical Spring Washer M20

250200170

$12.63

160

Castle Nut M20

250100193

$7.64

170

Cotter Pin

250400108

$5.96

320

Hex. Flange Screw M8 X 42

250001050

$1.09

325

Hex. Elastic Flange Nut M8

233281416

$1.43
