Can-Am CE - Maverick R - 996NT2 - XRS SAS - 7ATF - Dusty Navy Satin - 77" Width, 2026 Electric - Main Harness - 710010711 Diagram

#

Description
Price

300

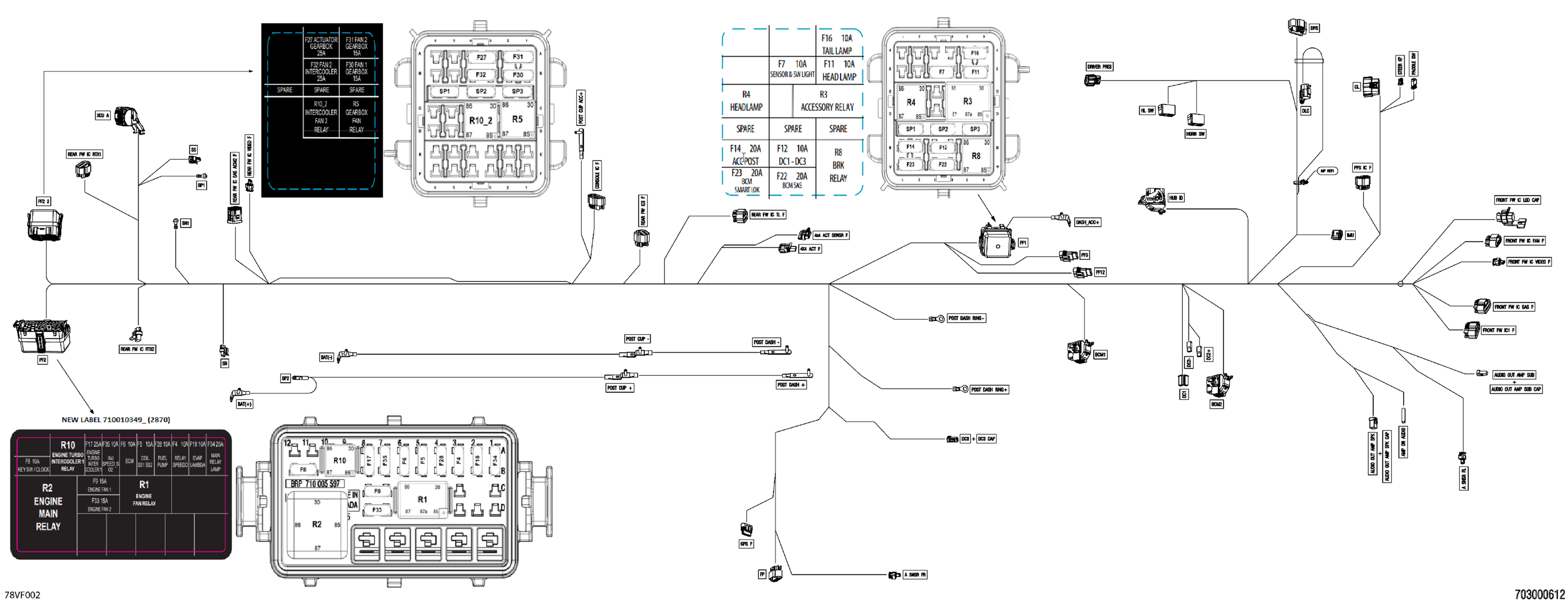

Main Wiring Harness

710010711

$1,250.72

20a1

Fuse Holder Support | Not Shown

710010659

$46.99

20a5

Push Lock Washer

710008059

$11.88

20a7

Battery Cable Cap

710008942

$5.72

20a11

USB Wiring Harness

710007479

$68.63

4X4 ACT SENSR F

Female Terminal Housing, 3 Circuits

278003442

$7.88

4X4 ACT SENSR F

Lock

710005868

$3.12

4X4 ACT SENSR F

Wire Seal

710001163

$5.85

4X4 ACT SENSR F

Female Terminal

710001164

$6.79

4X4 ACT F

Male Connector, 2 Circuits

278000220

$12.66

4X4 ACT F

Wire Seal

278001065

$5.85

4X4 ACT F

Female Terminal

278000223

$2.93

A SNSR FL

Female Housing, 2 Circuits

710005880

$5.04

A SNSR FL

Wire Seal

710001118

$1.19

A SNSR FL

Female Terminal

710005876

$1.31

A SNSR FR

Female Housing, 2 Circuits

710005880

$5.04

A SNSR FR

Wire Seal

710001118

$1.19

A SNSR FR

Female Terminal

710005876

$1.31

AMP ON AUDIO

Insulated Sheath

278001007

$3.12

AMP ON AUDIO

Cap

710006310

$0.97

AMP ON AUDIO

Female Terminal

710000421

$5.30

AUDIO OUT AMP SPK

Connector_JST Female 8 Cavities

710007945

$16.39

AUDIO OUT AMP SPK

Female Terminal

515177185

$8.10

AUDIO OUT AMP SUB

Housing

515177179

$11.96

AUDIO OUT AMP SUB

Female Terminal

515177185

$8.10

AUDIO OUT AMP SUB CAP

Housing

515177178

$13.27

BCM1 LT

Seal Joint

710007620

$6.33

BCM1 LT

Seal Joint

710007619

$6.33

BCM1 LT

Femal Terminal

710007658

$5.61

BCM1 LT

Femal Terminal

710007623

$2.16

BCM1 MT

Plug

710001593

$2.06

BCM1 MT

Female Terminal

710001727

$2.93

BCM1 ST

Cover, 48 positions

710001591

$11.54

BCM1 ST

Front PT Housing

710007627

$22.36

BCM1 ST

Plug

710001592

$2.06

BCM1 ST

Terminal

710001728

$5.52

BCM1 ST

Terminal_Molex Female

710009464

$1.90

BCM2 LT

Seal Joint

710007620

$6.33

BCM2 LT

Seal Joint

710007619

$6.33

BCM2 LT

Femal Terminal

710007658

$5.61

BCM2 LT

Femal Terminal

710007623

$2.16

BCM2 MT

Plug

710001593

$2.06

BCM2 MT

Female Terminal

710001727

$2.93

BCM2 ST

Cover, 48 positions

710001591

$11.54

BCM2 ST

Front PT Housing

710007626

$71.61

BCM2 ST

Plug

710001592

$2.06

BCM2 ST

Terminal

710001728

$5.52

BN1

Open Barrel Terminal

278001392

$4.00

BP1

Open Barrel Terminal

278001392

$4.00

BP2

Cap Battery Cable

710007033

$5.75

CL

Female Molex Connector 20 Cavities

515179227

$14.78

CL

Sealing Cap

278002860

$1.63

CL

Female Terminal 22 AWG

515178349

$1.76

CONSOLE IC F

Housing

710001226

$11.06

CONSOLE IC F

Lock Connector

710007935

$9.27

CONSOLE IC F

Lock

710001222

$1.93

CONSOLE IC F

Cap

710001225

$8.34

CONSOLE IC F

Seal

710001233

$2.93

CONSOLE IC F

Terminal

710001229

$2.93

D2

Diode

409012700

$10.51

DASH ACC+

Folded Terminal Eyelet

710006749

$9.25

DC1

Housing

710005373

$3.93

DC1

Terminal

710005518

$1.49

DC2-

Female Terminal Housing, 1 Circuit

409010400

$7.25

DC2-

Female Terminal

409010100

$5.30

DC2+

Female Terminal Housing, 1 Circuit

409010400

$7.25

DC2+

Female Terminal

409010100

$5.30

DC3

Female Housing, 2 Circuits

515175658

$14.90

DC3

Female Terminal

515175231

$4.00

DC3 CAP

Male Housing, 2 Circuits

710000667

$7.25

DLC

Connector Cap

710010709

$5.73

DLC

Female Housing 6 Circuits

710002706

$18.63

DLC

Lock

710002705

$4.15

DLC

Female Terminal

710005439

$4.15

DLC

Female Terminal

710005438

$3.88

DPS

Female Housing

710004989

$7.00

DPS

Lock | PACKARD 15430900

710005098

$1.57

DPS

Lock

710001222

$1.93

DPS

Plug

710002075

$2.84

DPS

Wire Seal

278002186

$5.18

DPS

Seal

710003153

$0.91

DPS

Female Terminal

278002187

$5.79

DPS

Terminal

710001873

$2.19

DRIVER PRES

Female Housing

515178474

$32.06

DRIVER PRES

Female Terminal 22 AWG

515178349

$1.76

FL-1

Fuse Link 41-50AMP

715002538

$20.12

FL-2

Fuse Link

710004228

Unavailable

FP

Male Housing, 4 Circuits

278002185

$6.73

FP

Lock

710001222

$1.93

FP

Lock

710006214

$0.73

FP

Seal

710003153

$0.91

FP

Terminal

710001869

$2.60

FP

Terminal

710001873

$2.19

FRONT FW IC FAN F

Male Housing, 4 Circuits

278002185

$6.73

FRONT FW IC FAN F

Lock

710001222

$1.93

FRONT FW IC FAN F

Lock

710006214

$0.73

FRONT FW IC FAN F

Wire Seal

278002186

$5.18

FRONT FW IC FAN F

Female Terminal

278002187

$5.79

FRONT FW IC LED F CAP

Connector Guard

710007680

$8.43

FRONT FW IC LED F CAP

Housing

710001132

$9.31

FRONT FW IC LED F CAP

Lock

710001133

$4.00

FRONT FW IC LED F CAP

Seal

278001482

$2.93

FRONT FW IC LED F CAP

Female Terminal

710001134

$5.85

FRONT FW IC SAS F

Female Housing, 12 Circuits

710001930

$13.52

FRONT FW IC SAS F

Lock

710001222

$1.93

FRONT FW IC SAS F

Lock

710006333

$5.52

FRONT FW IC SAS F

Cap

710001225

$8.34

FRONT FW IC SAS F

Seal

710001233

$2.93

FRONT FW IC SAS F

Terminal

710001229

$2.93

FRONT FW IC VIDEO F

Connector_TYCO Female 3 Cavities

710008501

$14.49

FRONT FW IC VIDEO F

Wire Seal

710001118

$1.19

FRONT FW IC VIDEO F

Female Terminal

710005876

$1.31

FRONT FW IC VIDEO F

Terminal Tyco Female

710008740

$8.85

FRONT FW IC1 F

Housing

710001226

$11.06

FRONT FW IC1 F

Lock Connector

710007935

$9.27

FRONT FW IC1 F

Lock

710001222

$1.93

FRONT FW IC1 F

Cap

710001225

$8.34

FRONT FW IC1 F

Seal

710001233

$2.93

FRONT FW IC1 F

Seal Wire

710001332

$3.12

FRONT FW IC1 F

Terminal

710001229

$2.93

FRONT FW IC1 F

Terminal

710001228

$3.12

GPS F

Female Housing

710005295

$30.57

GPS F

Plug

515175812

$1.96

GPS F

Female Terminal

710001119

$4.96

HL SW

Housing

710002000

$6.73

HL SW

Terminal

710003047

$3.12

HL SW

Female Terminal

710005491

$1.57

HORN SW

Housing

710002000

$6.73

HORN SW

Female Terminal

710005491

$1.57

HORN SW

Terminal

710003047

$3.12

HUB ID LT

Plug

710007617

$14.40

HUB ID LT

Seal Joint

710007620

$6.33

HUB ID LT

Seal Joint

710007619

$6.33

HUB ID LT

Femal Terminal

710007658

$5.61

HUB ID LT

Femal Terminal

710007623

$2.16

HUB ID MT

Plug

710001593

$2.06

HUB ID MT

Female Terminal

710001727

$2.93

HUB ID ST

Cover

710007650

$34.30

HUB ID ST

Female Terminal Housing 53 Circuit

710007651

$44.75

HUB ID ST

Plug

710001592

$2.06

HUB ID ST

Terminal_Molex Female

710009464

$1.90

HUB ID ST

Terminal

710001728

$5.52

IMU

Housing

710003730

$13.75

IMU

Wire Seal

710001118

$1.19

IMU

Female Terminal

710010230

$8.10

IMU

Femal Terminal

710008356

$9.46

PADDLE SW

Male Housing, 4 Circuits

515177442

$11.54

PF1

Fuse Cover

278003553

$3.79

PF1

Fuses Decal

710008308

Unavailable

PF1

Fuse Base Ass'y

278003448

$30.57

PF1

Wire Seal

278000216

$2.93

PF1

Seal

293300198

$1.78

PF1

Wire Seal

278000218

$4.00

PF1

Wire Seal

710000048

$5.85

PF1

Wire Seal

278001065

$5.85

PF1

Female Terminal

515177177

$4.96

PF1

Female Terminal

710000918

$5.85

PF1

Female Terminal

278002578

$0.99

PF1 F22

Little Fuse, 20 Amperes

710000746

$7.78

PF1 SP1

Little Fuse, 10 Amperes

710000744

$8.31

PF1 SP2

Little Fuse, 20 Amperes

710000746

$7.78

PF1 SP3

Little Fuse, 20 Amperes

710000746

$7.78

PF12

Fuse Holder

278001325

$8.31

PF12

Female Terminal

710000113

$5.85

PF12-F29

Fuse, 20 Amperes

409003900

$3.12

PF1-F11

Little Fuse, 10 Amperes

710000744

$8.31

PF1-F12

Little Fuse, 10 Amperes

710000744

$8.31

PF1-F14

Little Fuse, 20 Amperes

710000746

$7.78

PF1-F16

Little Fuse, 10 Amperes

710000744

$8.31

PF1-F23

Little Fuse, 20 Amperes

710000746

$7.78

PF1-F7

Little Fuse, 10 Amperes

710000744

$8.31

PF1-R3

Relay, 30 AMP

515176774

$18.63

PF1-R4

Relay

715900824

$18.63

PF1-R8

Relay

715900824

$18.63

PF2

Cover

710007491

$16.39

PF2

Fuses Decal

710010349

Unavailable

PF2

Fusebox Ass'y

710005623

$41.76

PF2

Wire Seal

278000216

$2.93

PF2

Cap

710001631

$0.97

PF2

Seal

293300198

$1.78

PF2

Wire Seal

278000218

$4.00

PF2

Wire Seal

278001065

$5.85

PF2

Wire Seal

278000218

$4.00

PF2

Wire Seal

278001065

$5.85

PF2

Wire Seal

710000048

$5.85

PF2

Female Terminal

710000918

$5.85

PF2

Female Terminal

278002578

$0.99

PF2

Female Terminal

710000890

$4.28

PF2 2

Fuse Cover

278003553

$3.79

PF2 2

Fuses Decal

710008310

Unavailable

PF2 2

Fuse Base Ass'y

278003448

$30.57

PF2 2

Wire Seal

278000216

$2.93

PF2 2

Seal

293300198

$1.78

PF2 2

Wire Seal

278000218

$4.00

PF2 2

Wire Seal

278001065

$5.85

PF2 2

Female Terminal

710000918

$5.85

PF2 2

Female Terminal

278002578

$0.99

PF2 2

Female Terminal

710000890

$4.28

PF2 2 SP1

Little Fuse, 15 Ampere

710000745

$7.78

PF2 2 SP2

Little Fuse, 15 Ampere

710000745

$7.78

PF2 2 SP3

Little Fuse, 25 Ampere

278002389

$4.28

PF2 2-F27

Little Fuse, 25 Ampere

278002389

$4.28

PF2 2-F30

Little Fuse, 15 Ampere

710000745

$7.78

PF2 2-F31

Little Fuse, 15 Ampere

710000745

$7.78

PF2 2-F32

Little Fuse, 25 Ampere

278002389

$4.28

PF2 2-R10 2

Relay

715900824

$18.63

PF2 2-R5

Relay

715900824

$18.63

PF2 LT

Seal Joint

710003132

$0.81

PF2 LT

Terminal Joint

710001905

$2.09

PF2 LT

Terminal

710001636

$3.12

PF2 LT

F Terminal

710003125

$3.01

PF2 SP1

Little Fuse, 10 Amperes

710000744

$8.31

PF2 SP2

Little Fuse, 10 Amperes

710000744

$8.31

PF2 SP3

Little Fuse, 10 Amperes

710000744

$8.31

PF2 SP4

Little Fuse, 15 Ampere

710000745

$7.78

PF2 SP5

Little Fuse, 25 Ampere

278002389

$4.28

PF2-F17

Little Fuse, 25 Ampere

278002389

$4.28

PF2-F18

Little Fuse, 10 Amperes

710000744

$8.31

PF2-F28

Little Fuse, 10 Amperes

710000744

$8.31

PF2-F33

Little Fuse, 15 Ampere

710000745

$7.78

PF2-F34

Little Fuse, 25 Ampere

278002389

$4.28

PF2-F35

Little Fuse, 10 Amperes

710000744

$8.31

PF2-F4

Little Fuse, 10 Amperes

710000744

$8.31

PF2-F5

Little Fuse, 10 Amperes

710000744

$8.31

PF2-F6

Little Fuse, 10 Amperes

710000744

$8.31

PF2-F8

Little Fuse, 10 Amperes

710000744

$8.31

PF2-F9

Little Fuse, 15 Ampere

710000745

$7.78

PF2-R1

Relay, 30 AMP

515176774

$18.63

PF2-R10

Relay

715900824

$18.63

PF2-R2

50 Amps Relay

710003143

$12.64

PF3

Fuse Holder

278001325

$8.31

PF3

Female Terminal

710000113

$5.85

PF3-F2

Fuse

710001613

$8.31

POST CUP -

Terminal

710007939

$14.81

POST CUP +

Terminal

710007939

$14.81

POST CUP ACC+

Terminal Eyelet

710008805

$67.88

POST DASH -

Terminal

710008716

$20.12

POST DASH +

Terminal

710008716

$20.12

POST DASH RING-

Open Barrel Terminal

278001392

$4.00

POST DASH RING+

Open Barrel Terminal

278001392

$4.00

PPS IC F

Housing

710001951

$11.81

PPS IC F

Lock

710001222

$1.93

PPS IC F

Lock

710006361

$0.73

PPS IC F

Cap

710001225

$8.34

PPS IC F

Seal

710001233

$2.93

PPS IC F

Terminal

710001229

$2.93

REAR FW IC RTX1

Housing

710001226

$11.06

REAR FW IC RTX1

Lock Connector

710007935

$9.27

REAR FW IC RTX1

Lock

710001222

$1.93

REAR FW IC RTX1

Cap

710001225

$8.34

REAR FW IC RTX1

Seal

710001233

$2.93

REAR FW IC RTX1

Seal Wire

710001332

$3.12

REAR FW IC RTX1

Terminal

710001229

$2.93

REAR FW IC RTX1

Terminal

710001228

$3.12

REAR FW IC RTX2

Connector_DELPHI Female 2 Cavities

710007586

$15.64

REAR FW IC RTX2

Lock Connector

710007583

$9.90

REAR FW IC RTX2

Seal Joint

710007584

$9.49

REAR FW IC RTX2

Terminal

710007585

$3.42

REAR FW IC SAS ACM2 F

Ctc Housing

278004304

$25.34

REAR FW IC SAS ACM2 F

Plug

710009532

$6.12

REAR FW IC SAS ACM2 F

Terminal

710009529

$5.90

REAR FW IC TL F

Housing

710001928

$14.52

REAR FW IC TL F

Lock

710001222

$1.93

REAR FW IC TL F

Lock

710006181

$3.12

REAR FW IC TL F

Cap

710001225

$8.34

REAR FW IC TL F

Seal

710001233

$2.93

REAR FW IC TL F

Terminal

710001229

$2.93

REAR FW IC VIDEO F

Connector_TYCO Female 3 Cavities

710008501

$14.49

REAR FW IC VIDEO F

Wire Seal

710001118

$1.19

REAR FW IC VIDEO F

Female Terminal

710005876

$1.31

REAR FW IC VIDEO F

Terminal Tyco Female

710008740

$8.85

REAR FW IC3 F

Connector_DELPHI Female 8 Cavities

710007831

$15.64

REAR FW IC3 F

Lock

710007836

$12.99

REAR FW IC3 F

Lock

710001222

$1.93

REAR FW IC3 F

Wire Seal

278002186

$5.18

REAR FW IC3 F

Female Terminal

278002187

$5.79

SB

Housing

710002177

$3.12

SB

Lock

710002043

$0.81

SB

Seal

278001482

$2.93

SB

Female Terminal

710001134

$5.85

SS

Female Housing, 2 Circuits

515177192

$7.25

SS

Lock

710001152

$4.00

SS

Wire Seal

710001163

$5.85

SS

Female Terminal

710001164

$6.79

STEER KP

Female Housing

515177441

$16.39

STEER KP

Female Terminal

278002857

$0.85

XCU A

Cover

515178602

$4.66

XCU A

Housing 56 Circuits

515178618

Unavailable

XCU A

Plate

515178604

$4.16

XCU A

Plug

515178599

$2.99

XCU A

Plug

515178600

$2.99

XCU A

Plate

515178603

$4.16

XCU A

Terminal

515178596

$3.79

XCU A LT

Terminal

515178666

$4.19

XCU A LT

Terminal

515178598

$3.69
