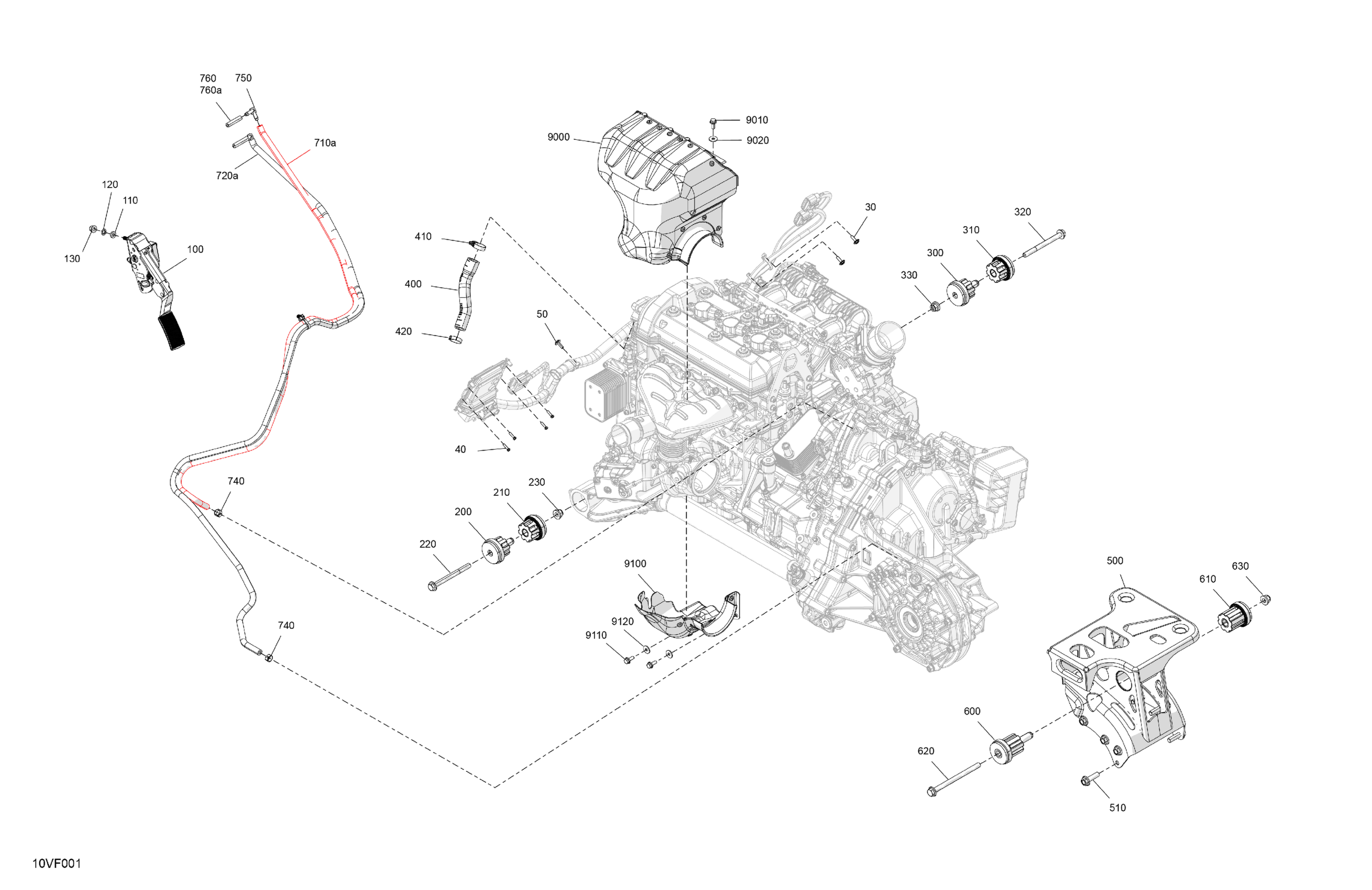

Can-Am CE - Maverick R - 996NT2 - XRS - 7ATE - Timeless Black Metallic - 77" Width, 2026 Engine - System Diagram

Description

Price

Screw PT Type K-50 X 16

250000959

$2.11

Hex. Flange Screw K40 X 16

241141660

$1.48

Screw PT Type K-50 X 16

250000959

$2.11

100

Accelerator Pedal

707003505

$284.99

110

Bushing

707001990

$2.79

120

Push Nut

250100031

$7.29

130

Hex. Flange Nut M8

233081416

$1.15

200

Vibration Damper

707002950

$61.99

210

Vibration Damper

707003042

$61.99

220

Hex Flange Screw DIN.6921

230601046

$2.64

230

Hex. Flange Elastic Nut M10

233201436

$2.11

300

Vibration Damper

707002950

$61.99

310

Vibration Damper

707003042

$61.99

320

Hex Flange Screw DIN.6921

230601046

$2.64

330

Hex. Flange Elastic Nut M10

233201436

$2.11

400

Crankcase Hose

707002834

$48.99

410

Gear Clamp

293650284

$4.44

420

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

500

Rear Engine Support

707002713

$109.99

510

Hex. Flange Screw M10 X 35

207503544

$7.31

600

Vibration Damper

707003043

$61.99

610

Vibration Damper

707002955

$61.99

620

Hex. Flange Screw M10 X 140

230604056

$12.65

630

Hex. Flange Elastic Nut M10

233201436

$2.11

710a

Hose 6,35 Mm Id 4000Mm Long

219704547

$98.99

720a

Hose 6,35 Mm Id 4000Mm Long

219704547

$98.99

740

Oetiker Clamp

293650042

$3.09

750

Pipe Elbow Fitting

293710223

$9.09

760

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

760a

Not Available As Spare Parts

XXX

Unavailable

9000

Upper Heat Shield

420975104

$229.99

9010

Hex. Flange Screw M6 X 16

207661644

$0.74

9020

Flat Washer 6 mm

234062410

$0.77

9100

Lower Heat Shield

420975106

$229.99

9110

Hex. Flange Screw M6 X 16

207661644

$0.74

9120

Flat Washer 6 mm

234062410

$0.77
