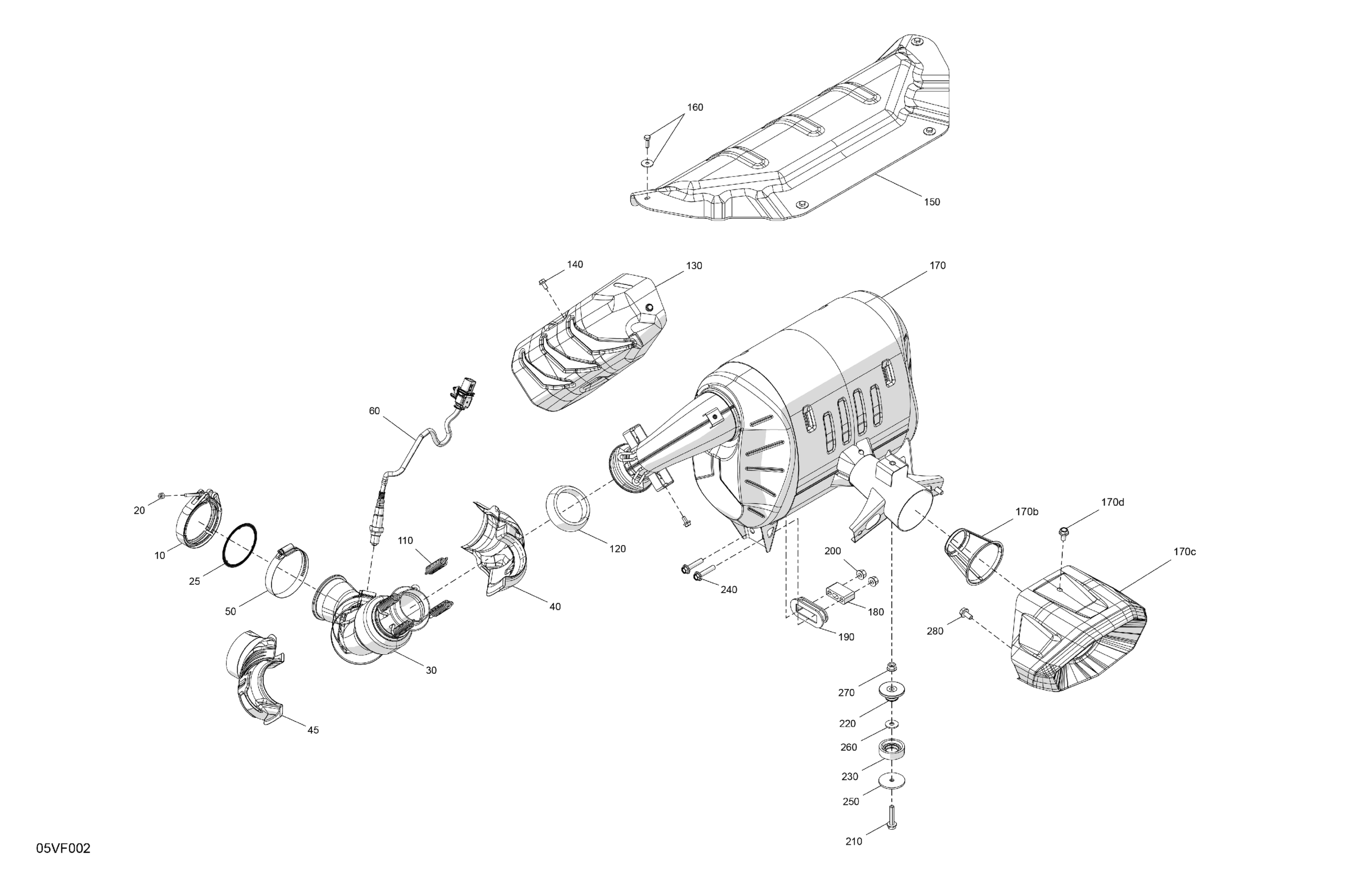

Can-Am CE - Maverick R - 996NT2 - XRS - 7ATE - Timeless Black Metallic - 77" Width, 2026 Engine - Exhaust Diagram

Description

Price

Exhaust Clamp

707603708

$59.97

Nut

707602143

$6.45

Seal

707601835

$36.89

Exhaust Pipe

707602877

$876.89

Lower Heat Shield

707603578

$272.28

Upper Heat Shield

707603579

$272.28

Clamp

293650259

$13.83

Oxygen Sensor

707602926

$129.32

110

Spring

707601834

$6.20

120

Joint

707603140

$17.66

130

Lateral Heat Shield

707602881

$272.28

140

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

150

Heat Shield

707603450

$96.89

160

Hex Sems Screw M6X20

250001165

$3.19

170

Exhaust Muffler Ass'y | Includes 170 to 170d

707603620

$1,638.43

170b

Spark Arrestor

707603567

$36.89

170c

Muffler End Piece

707603272

$41.51

170d

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.08

180

Muffler Stopper

707603214

$12.91

190

Vibration Damper

707603488

$16.89

200

Hex. Flange Nut M8

233081416

$1.63

210

Hex. Flange Screw M8 X 40

207684044

$1.25

220

Anti Vibration Mount

707003062

$27.66

230

Rubber Mount

707603383

$14.75

240

Hex. Flange Screw M8 X 40

207684044

$1.25

250

Flat Washer M8

250200180

$1.79

260

Flat Washer 8 mm

234082410

$1.11

270

Hex. Flange Nut M8

233081416

$1.63

280

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.08
