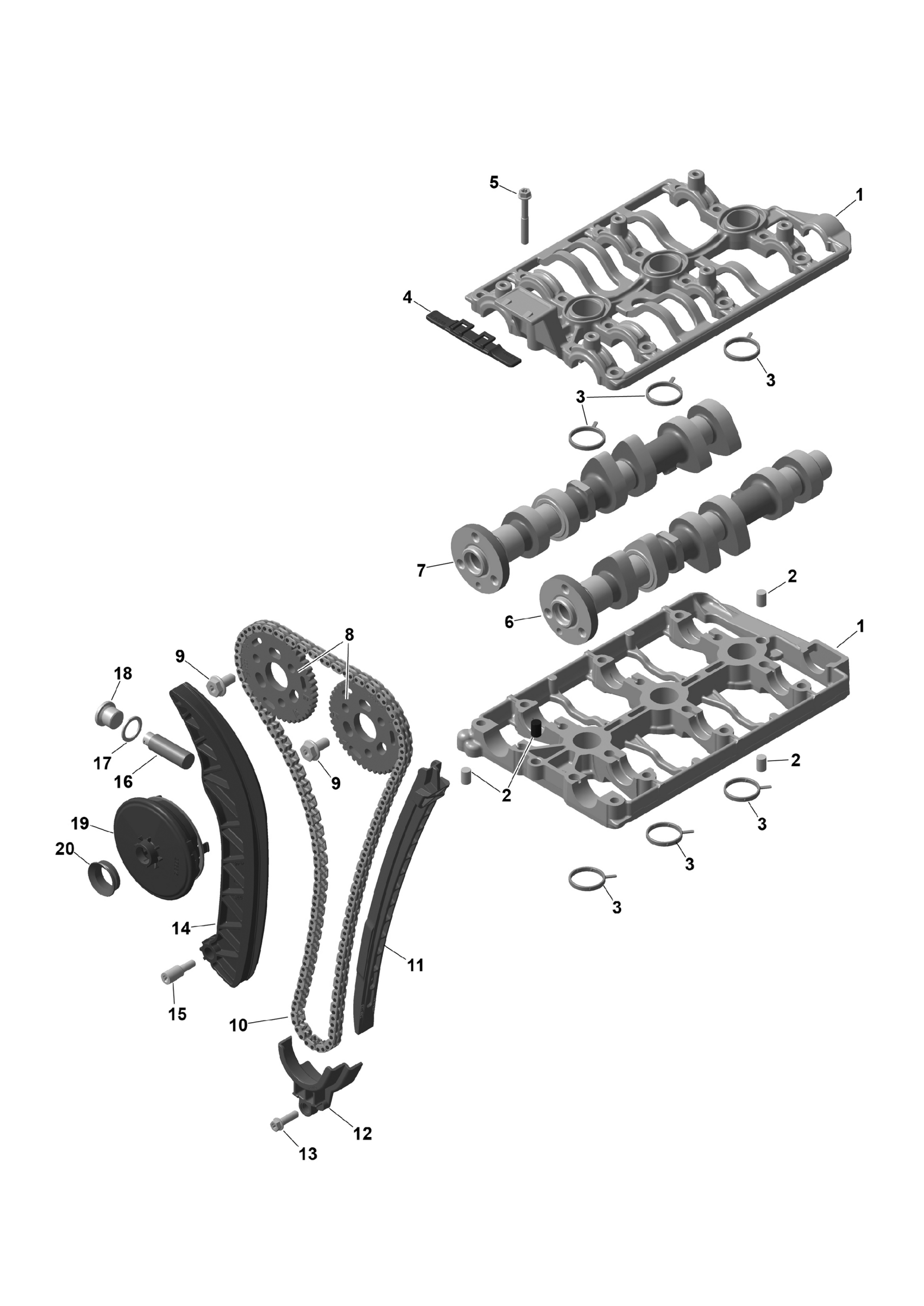

Can-Am CE - Maverick R - 996NT2 - XRS - 7ATE - Timeless Black Metallic - 77" Width, 2026 ROTAX - Valve Train Diagram

Description

Price

Camshaft Housing Ass'y | Includes 1-2

420210176

$823.85

Center Pin 8 X 12

420632014

$3.52

Camshaft Housing Gasket

420431760

$3.01

Chain Guide Upper

420936541

$5.76

Hex Torx Flange Screw M6X50

420440321

$2.85

Camshaft Exhaust

420820450

$172.36

Camshaft Intake

420820440

$167.13

Timing Gear 42 Teeth

420253020

$64.90

Hex Torx Flange Screw M8X16

420440850

$3.29

Silent Chaine

420297075

$84.30

Chain Guide

420236233

$10.01

Chain Guide

420236093

$10.01

Torx Flange Screw M6 X 20

420441835

$3.01

Chain Tension Guide

420236226

$11.91

Bearing Screw M6

420240945

$4.16

Chain Tensioner Ass'y

420236392

$44.00

Gasket Ring

420430624

$1.73

Plug Screw M16 X 1.5

420240234

$13.18

Oil Separator Ass'y

420256816

$12.85

V-Ring 20S FPM Blow By Valve

420630125

$10.76
