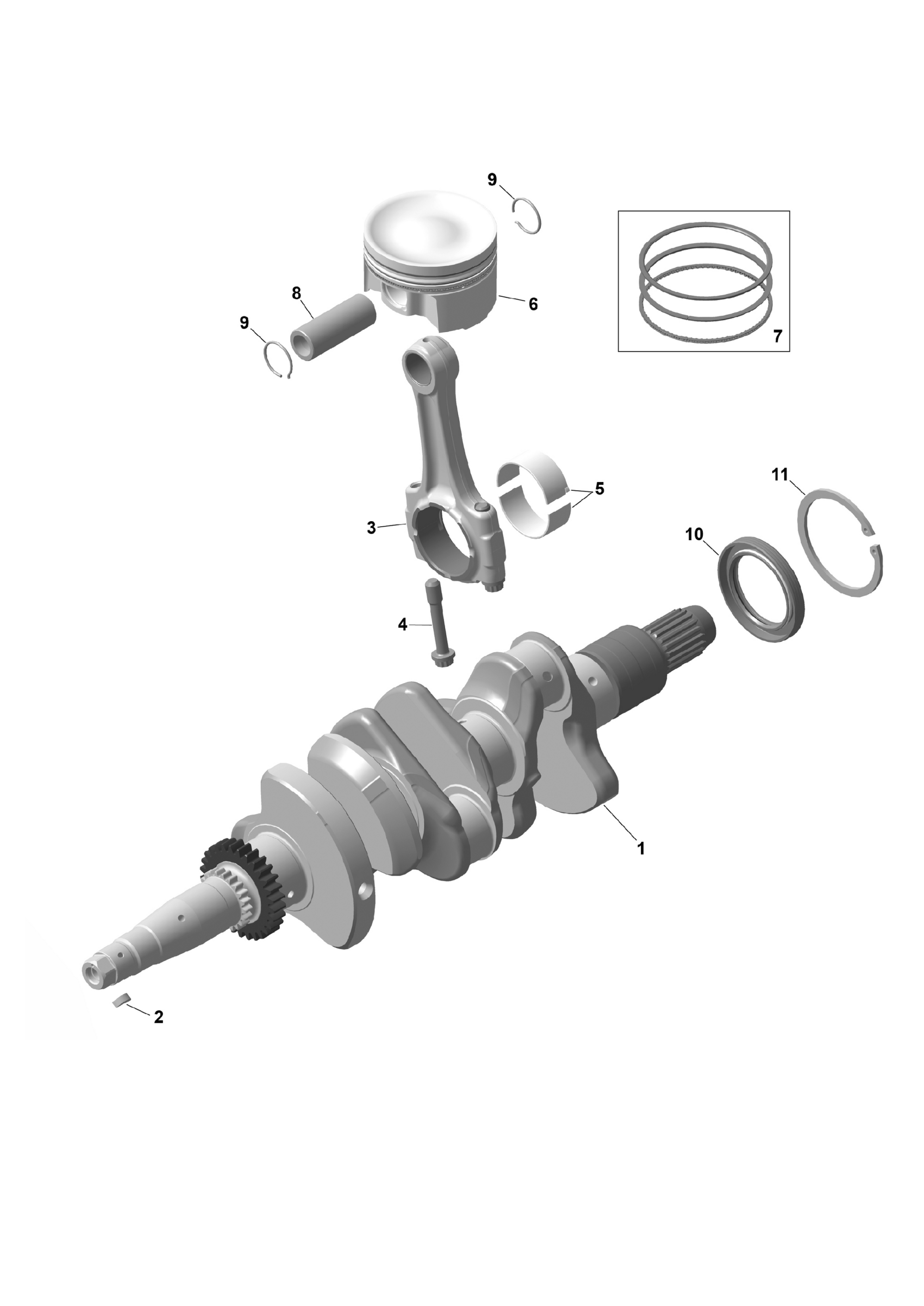

Can-Am CE - Maverick R - 996NT2 - XRS - 7ATE - Timeless Black Metallic - 77" Width, 2026 ROTAX - Crankshaft and Pistons Diagram

#

Description
Price

1

Crankshaft Ass'y | Includes no 1-2

420819926

$905.49

2

Woodruff Key

420246571

$4.44

3

Connecting Rod With Cover Ass'y | Includes no 3-4

420917791

$255.49

4

Connecting Rod Screw M9X1

420240751

$15.89

5

Plain Bearing

420233341

$43.49

6

PISTON ASS'Y 77.986 MM | Includes no. 6-7

420893981

$223.49

7

Piston Ring Set

420890382

$81.99

8

Piston Pin

420216081

$28.49

9

Piston Circlip

420845101

$4.89

10

Oil Seal

420630933

$30.49

11

Retaining Ring 65x2.5

420445075

$3.99
