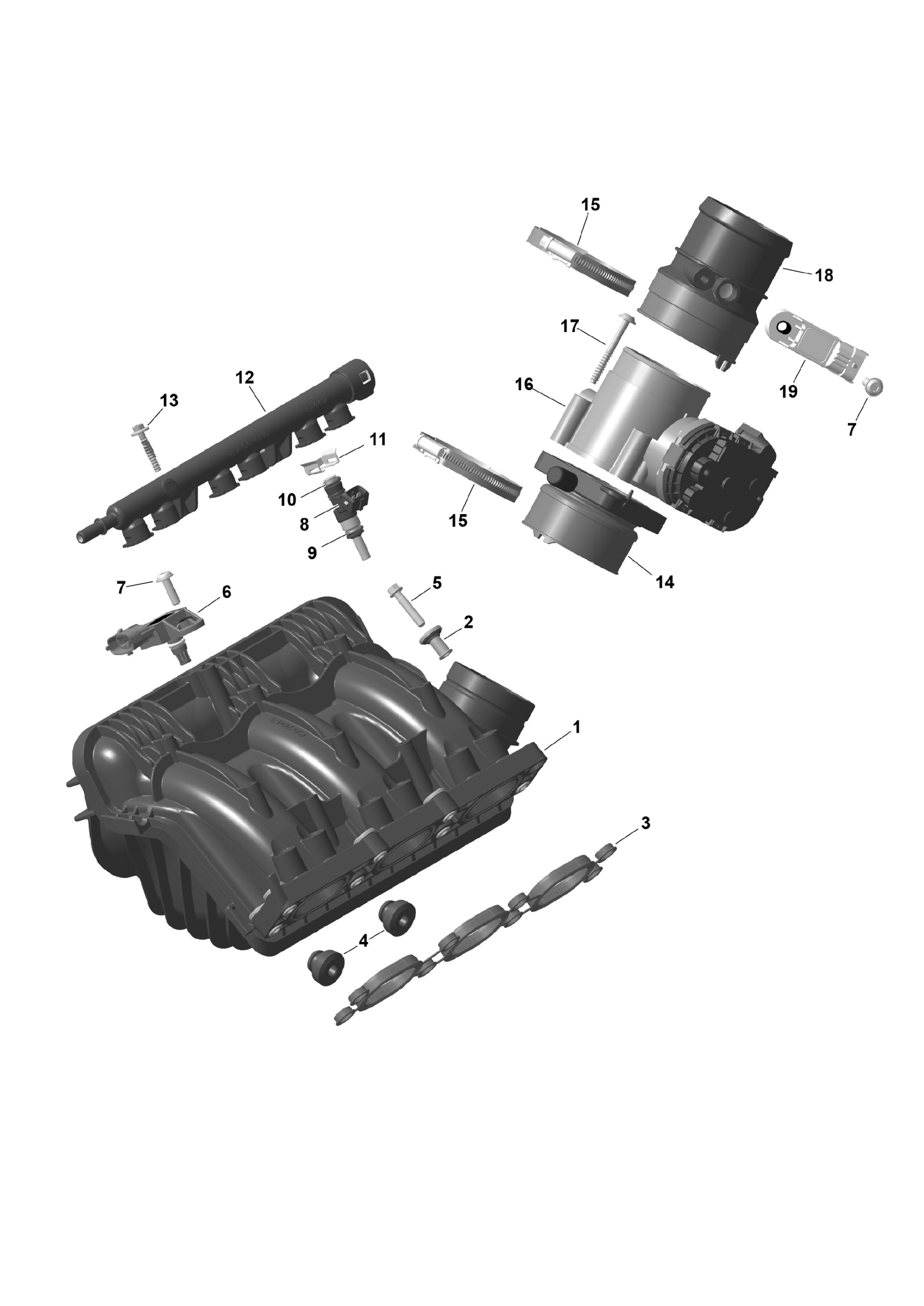

Can-Am CE - Maverick R - 996NT2 - XRS - 7ATE - Timeless Black Metallic - 77" Width, 2026 ROTAX - Air Intake Manifold And Throttle Body Diagram

Description

Price

Air Intake Manifold Ass'y

420667043

$415.35

Distance Sleeve

420629175

$16.89

Gasket

420450512

$46.12

Rubber Grommet

420860150

$4.41

Torx Flange Screw M6 X 30

420440647

$1.97

Pressure / Temperature Sensor

420874653

$161.51

Torx Flange Screw M6 X 20

420841103

$2.54

Injection Valve | Includes 8-10

420874845

$151.99

O-Ring

420831050

$4.51

O-Ring

420430775

$3.38

Injector Clip

420853030

$2.46

Fuel Rail

420874412

$32.28

Torx Screw 6X30

420441575

$2.54

Connecting Socket Ass'y

420460422

$41.51

Hose Clamp 60-80

420251833

$13.52

Throttle Body Socket Ass'y

420892596

$446.89

Torx Flange Screw M6 X 50

420441588

$3.61

Connecting Socket Ass'y

420460423

$41.51

Pressure Sensor

420274052

$132.28
