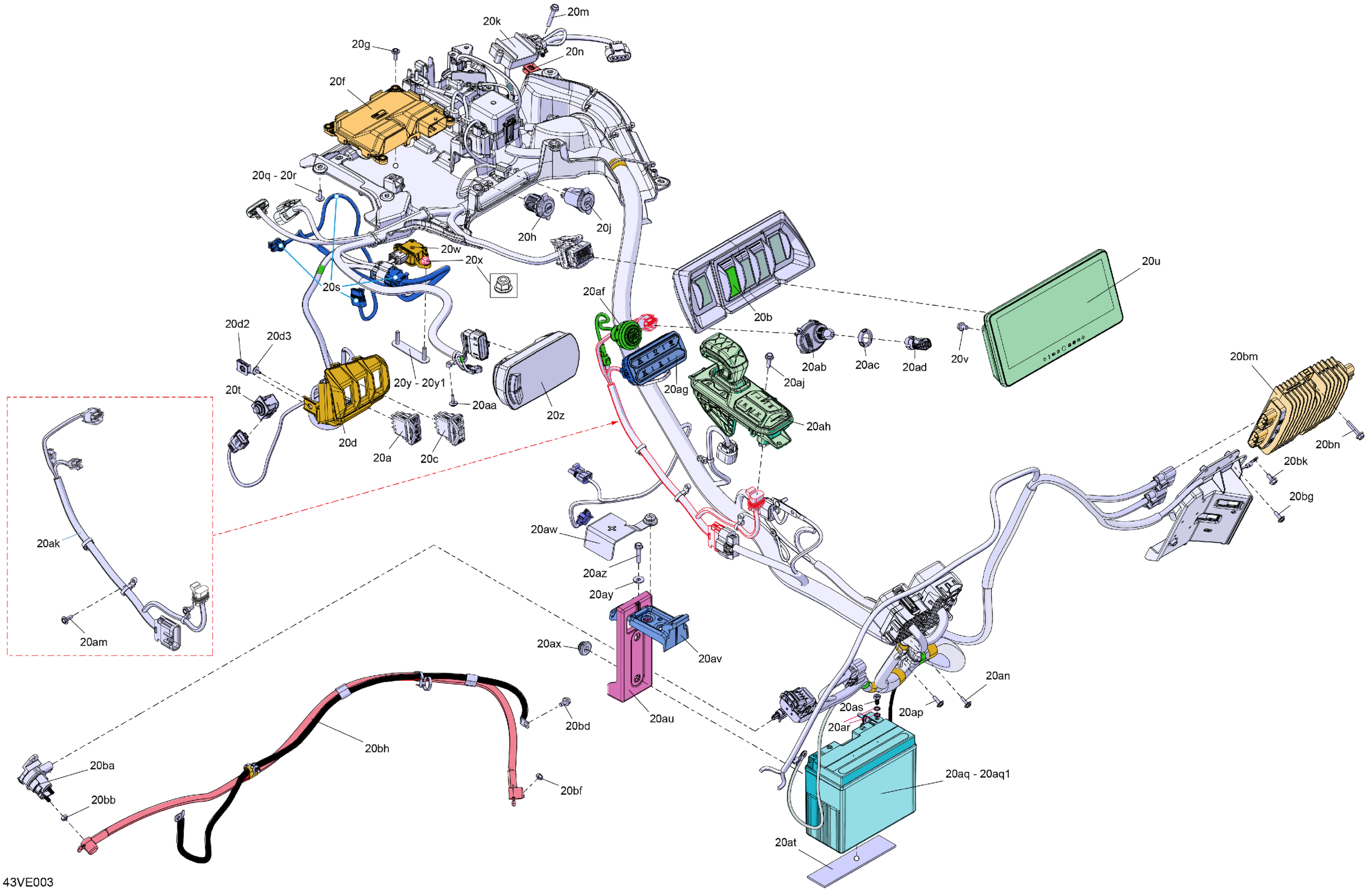

Can-Am CE - Maverick R - 996NT - XRS STD - 6JSE - Timeless Black Metallic - 77" Width, 2025 Electric - Central Electric Diagram

#

Description
Price

20a

Light Switch

710007663

$47.49

20b

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

20c

Horn Switch

710007664

$23.49

20d

Switch Support Ass'y | Includes 20d to 20d3

710009476

$18.99

20d2

Panel Nut M6 X 1.0

250100208

$1.46

20d3

Plastite Screw M4 X 10

250000805

$2.11

20f

BCM Module OPT #2

710007494

$959.99

20g

Screw PT Type K-50 X 16

250000959

$2.11

20h

USB Outlet

219400510

$42.99

20j

12V Power Outlet

710005374

$33.99

20k

GPS

278004506

$109.99

20m

Hex. Flange Screw S.Grip M6 X 35

207563544

$2.11

20n

Panel Nut M6 X 1.0

250100208

$1.46

20q

Screw PT Type K-50 X 16

250000959

$2.11

20r

Screw PT Type K-50 X 16

250000959

$2.11

20s

Accelerator Pedal Wiring Harness

710008927

$229.99

20t

Door Switch

710010023

$76.99

20u

Multifunction Gauge 10

710010375

$2,039.99

20v

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

20w

Yaw Rate Sensor

710005998

$419.99

20x

Hex. Flange Elastic Nut M6

233261494

$1.58

20y

Sensor Support | Includes 1825 to 1825a

710009676

$17.99

20y1

Sensor Support ED

710009651

$17.99

20z

Multifunction Compact Gauge

710008298

$389.99

20aa

Screw M4 X 16

250000725

$3.49

20ab

Terminal DESS CAN | CARB Vehicle

710008832

$72.99

20ac

Specialized Nut

278004274

$3.28

20ad

Grey Key RFID | Except Model Europe, Except T3

710004964

$63.49

20af

Start-Stop Button | Not Shown

710005213

$60.49

20ag

Multifunction Switch

710010056

$134.99

20ah

Electronic Gear Shift Lever

710007338

$329.99

20aj

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

20ak

Console Wiring Harness

710007667

$104.99

20am

Screw PT Type K-50 X 16

250000959

$2.11

20an

Screw M4 X 16

250000725

$3.49

20ap

Screw PT Type K-50 X 16

250000959

$2.11

20aq

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

20aq1

Battery Bolt Kit

250000282

$7.29

20ar

Washer | Not Shown

710009082

$1.29

20as

Screw | Not Shown

710009084

$1.59

20at

Rubber Pad

293830126

$13.76

20au

Fixation Plate

710004788

$11.49

20av

Battery Support

710009128

$8.99

20aw

Battery Cable Cap

710006471

$2.59

20ax

Stopper Rubber

705014429

$5.95

20ay

Flat Washer 6 mm

234062410

$0.77

20az

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44

20ba

Starter Relay

278003012

$42.49

20bb

Elastic Stop Nut M6, Brass

232561200

$4.23

20bd

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

20bf

Elastic Stop Nut M6, Brass

232561200

$4.23

20bg

Screw PT Type K-50 X 16

250000959

$2.11

20bh

Starter Wiring Harness

710007347

$104.99

20bj

Elastic Stop Nut M6, Brass

232561200

$4.23

20bk

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

20bm

Voltage Regulator

710007558

$360.49

20bn

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11
