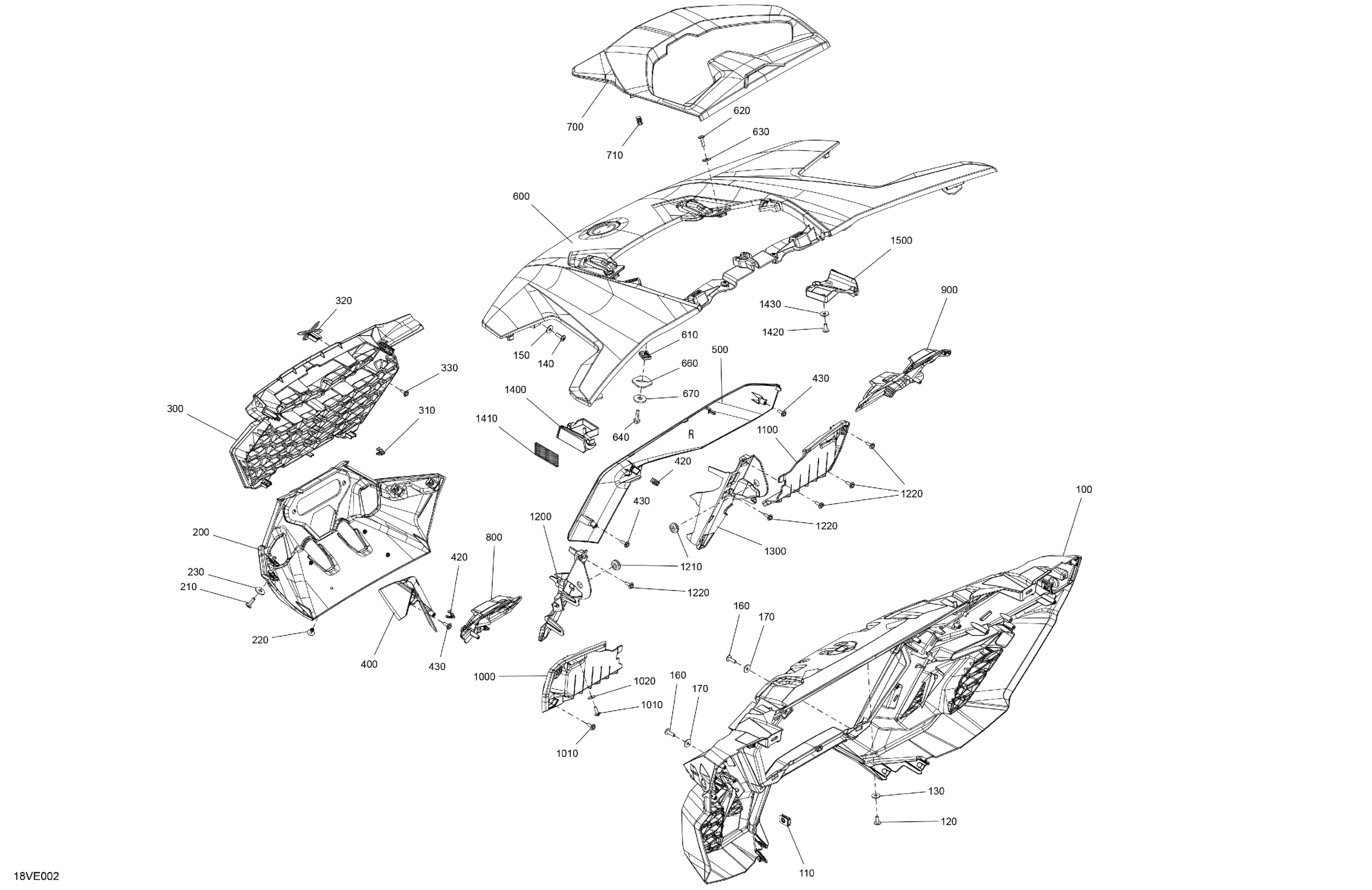

Can-Am CE - Maverick R - 996NT - XRS STD - 6JSE - Timeless Black Metallic - 77" Width, 2025 Body - Hood Diagram

Description

Price

100

Front Fascia

708500006

$67.13

110

Panel Nut M6 X 1.0

250100208

$1.22

120

Torx Truss Screw M6 X 16

250000721

$1.60

130

Stainless Steel Flat Washer

234062670

$2.00

140

Torx Screw M6 X 20

250000722

$1.54

150

Stainless Steel Flat Washer

234062670

$2.00

160

Torx Screw M6 X 20

250000722

$1.54

170

Stainless Steel Flat Washer

234062670

$2.00

200

Front Deflector

708500012

$68.63

210

Torx Screw M6 X 20

250000722

$1.54

220

Pop Rivet 3/16”

293150108

$1.19

230

Stainless Steel Flat Washer

234062670

$2.00

300

Deep Black, Grille

708500007

$49.22

310

Clip

517306478

$1.03

320

Emblem Logo BRP

705017645

$10.55

330

Screw M4 X 16

250000725

$3.30

400

Deep Black, LH Front Fairing Trim

708500016

$35.04

420

Clip

517306478

$1.03

430

Screw PT Type K-50 X 16

250000959

$2.00

500

Deep Black, RH Front Fairing Trim

708500017

$35.04

600

Timeless Black, Hood

708500032

$488.03

610

Panel Nut M6 X 1.0

250100208

$1.22

620

Torx Screw M6 X 20

250000722

$1.54

630

Stainless Steel Flat Washer

234062670

$2.00

640

Hex. Flange Screw M6 X 25

207562544

$1.60

660

Support Plate

705003841

$0.91

670

Washer M6

250200029

$1.78

700

Deep Black, Central Hood Trim

708500003

$98.48

710

Clip

517306478

$1.03

800

LH Front Headlight Trim

708500018

$33.55

900

RH Front Headlight Trim

708500019

$33.55

1000

LH Front Body Panel Cap

708500024

$18.63

1010

Screw PT Type K-50 X 16

250000959

$2.00

1020

Washer M5

250200025

$0.70

1100

RH Front Body Panel Cap

708500025

$18.63

1200

LH Radiator Deflector

708500021

$17.13

1210

Overmolded Grommet

293720130

$4.25

1220

Screw PT Type K-50 X 16

250000959

$2.00

1300

RH Radiator Deflector

708500022

$17.13

1400

LH Front Reflector Support

708500029

$4.15

1410

Amber, Reflector

520002680

$18.63

1420

Torx Truss Screw M6 X 16

250000721

$1.60

1430

Stainless Steel Flat Washer

234062670

$2.00

1500

RH Front Reflector Support

708500030

$4.15
