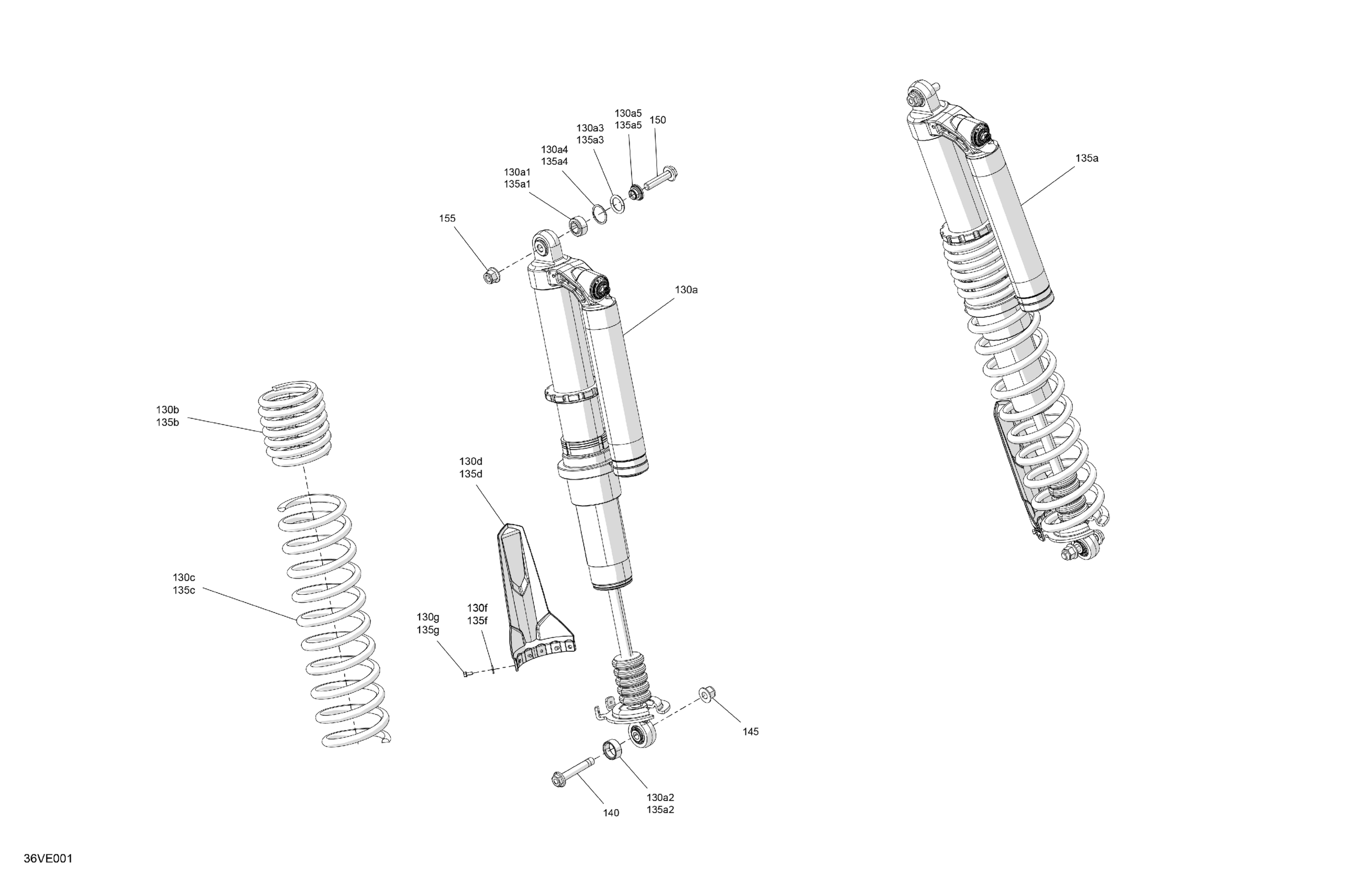

Can-Am CE - Maverick R - 996NT - XRS STD - 6JSE - Timeless Black Metallic - 77" Width, 2025 Suspension - Rear Shocks Diagram

Description

Price

130a

Rear Shock Absorber | Includes 130a to 130a5

706004201

$1,699.99

130a1

Spherial Bearing

715900916

$76.12

130a2

Spherial Bearing

715900917

$80.74

130a3

O-Ring Bushing

715900918

$7.37

130a4

Retaining Ring

715900919

$7.62

130a5

Reducer

715900920

$27.66

130b

Deep Black, Rear Compression Spring

706005012

$96.89

130c

Deep Black, Compression Spring

706005129

$143.05

130d

Protector

706202215

$9.23

130f

Washer M5

250200025

$0.61

130g

Hex Flange Screw M5 X 11

210251150

$1.74

135a

Rear Shock Absorber | Includes 130a to 130a5

706004201

$1,699.99

135a1

Spherial Bearing

715900916

$76.12

135a2

Spherial Bearing

715900917

$80.74

135a3

O-Ring Bushing

715900918

$7.37

135a4

Retaining Ring

715900919

$7.62

135a5

Reducer

715900920

$27.66

135b

Deep Black, Rear Compression Spring

706005012

$96.89

135c

Deep Black, Compression Spring

706005129

$143.05

135d

Protector

706202215

$9.23

135f

Washer M5

250200025

$0.61

135g

Hex Flange Screw M5 X 11

210251150

$1.74

140

Hex. Flange Screw Din.6921 M14X2X85

250001176

$6.08

145

Hex. Flange Elastic Nut M14

250001166

$10.56

150

Hex. Flange Screw Din.6921 M14X2X60

250001174

$6.08

155

Hex. Flange Elastic Nut M14

250001166

$10.56
