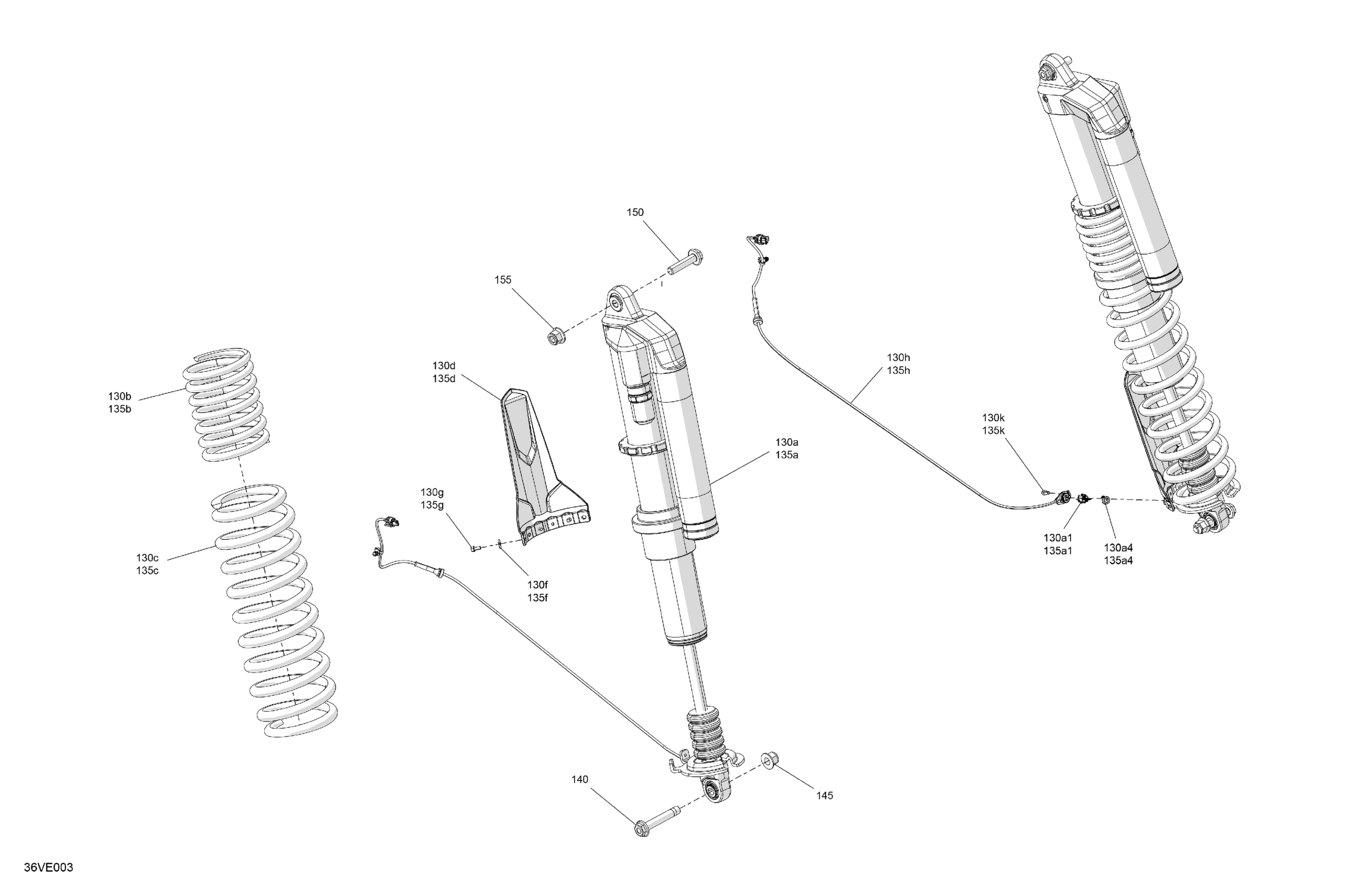

Can-Am CE - Maverick R - 996NT - XRS SAS - 6JSK - Dusty Navy - 77" Width, 2025 Suspension - Rear Shocks Diagram

Description

Price

130a

LH Rear Shock Absorber Adjustable | Includes 130a to 130a7

706003615

$2,219.99

130a1

Connector Support

706203583

$12.91

130a4

Anchorage

706204583

$14.75

130b

Legion Red, Rear Compression Spring

706006156

$143.05

130c

Legion Red, Compression Spring

706005561

$147.66

130d

Protector

706202215

$9.23

130f

Washer M5

250200025

$0.61

130g

Hex Flange Screw M5 X 11

210251150

$1.74

130h

Rear Suspension Wiring Harness Ass'y

710008262

$216.89

130k

Socket Head Screw M5 X 10

205551060

$1.30

135a

RH Rear Shock Absorber Adjustable | Includes 135a to 135a7

706004732

$2,219.99

135a1

Connector Support

706203583

$12.91

135a4

Anchorage

706204583

$14.75

135b

Legion Red, Rear Compression Spring

706006156

$143.05

135c

Legion Red, Compression Spring

706005561

$147.66

135d

Protector

706202215

$9.23

135f

Washer M5

250200025

$0.61

135g

Hex Flange Screw M5 X 11

210251150

$1.74

135h

Rear Suspension Wiring Harness Ass'y

710008262

$216.89

135k

Socket Head Screw M5 X 10

205551060

$1.30

140

Hex. Flange Screw Din.6921 M14X2X85

250001176

$6.08

145

Hex. Flange Elastic Nut M14

250001166

$10.56

150

Hex. Flange Screw Din.6921 M14X2X60

250001174

$6.08

155

Hex. Flange Elastic Nut M14

250001166

$10.56
