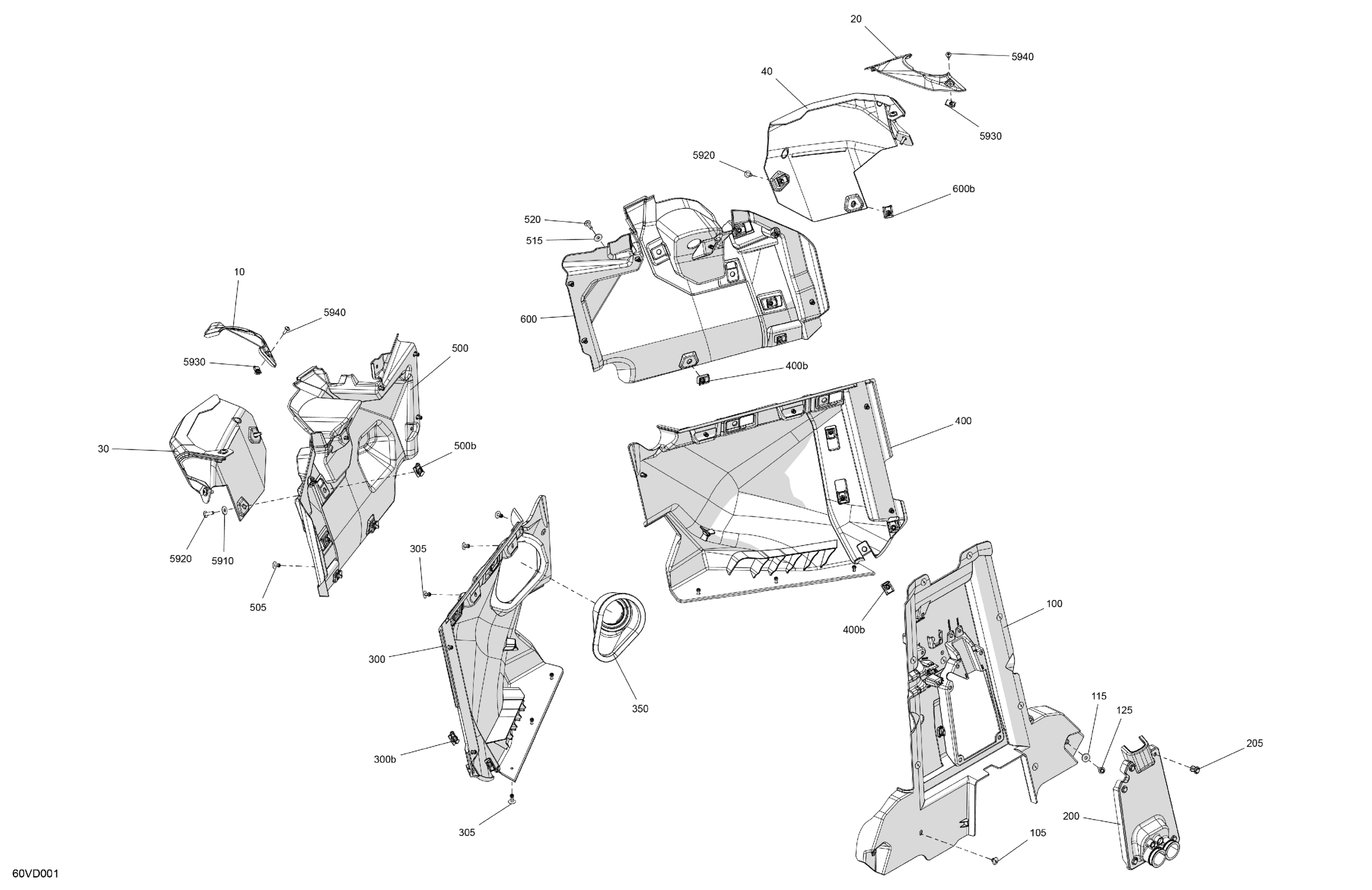

Can-Am CE - Maverick R 996NT - XRS - 7ARK - Neo Yellow - 77" Width SAS, 2024 Cab Interior - Firewall Diagram

LH Front Cage Trim

707901084

$34.30

RH Front Cage Trim

707901085

$34.30

LH Front Cover

707901062

$23.85

RH Front Cover

707901063

$23.85

Central Front Baffle

707900906

$49.22

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

Stainless Steel Flat Washer

234062670

$2.00

Screw PT Type K-50 X 16

250000959

$2.00

Grommet

707900907

$16.39

Tuflok Plastic Rivet

293150230

$1.39

LH Front Deflector Ass'y | Includes 300 to 300b

707901173

$47.73

Panel Nut M6 X 1.0

250100208

$1.22

Pop Rivet 3/16"

293150100

$1.04

Steering Column Trim

707900942

$11.63

RH Front Deflector Ass'y | Includes 400 to 400b

707901174

$47.73

Panel Nut M6 X 1.0

250100208

$1.22

LH Front Baffle Ass'y | Includes 500 to 500b

707901189

$49.22

Panel Nut M6 X 1.0

250100208

$1.22

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

Stainless Steel Flat Washer

234062670

$2.00

Torx Screw M6 X 20

250000722

$1.54

RH Front Baffle Ass'y | Includes 600 to 600b

707901190

$49.22

Panel Nut M6 X 1.0

250100208

$1.22

Stainless Steel Flat Washer

234062670

$2.00

Stainless Steel Flat Washer

234062670

$2.00

Torx Screw M6 X 20

250000722

$1.54

Panel Nut M5 X 0.8

250000958

$4.00

Torx Screw M5 X 14

250000742

$1.37
