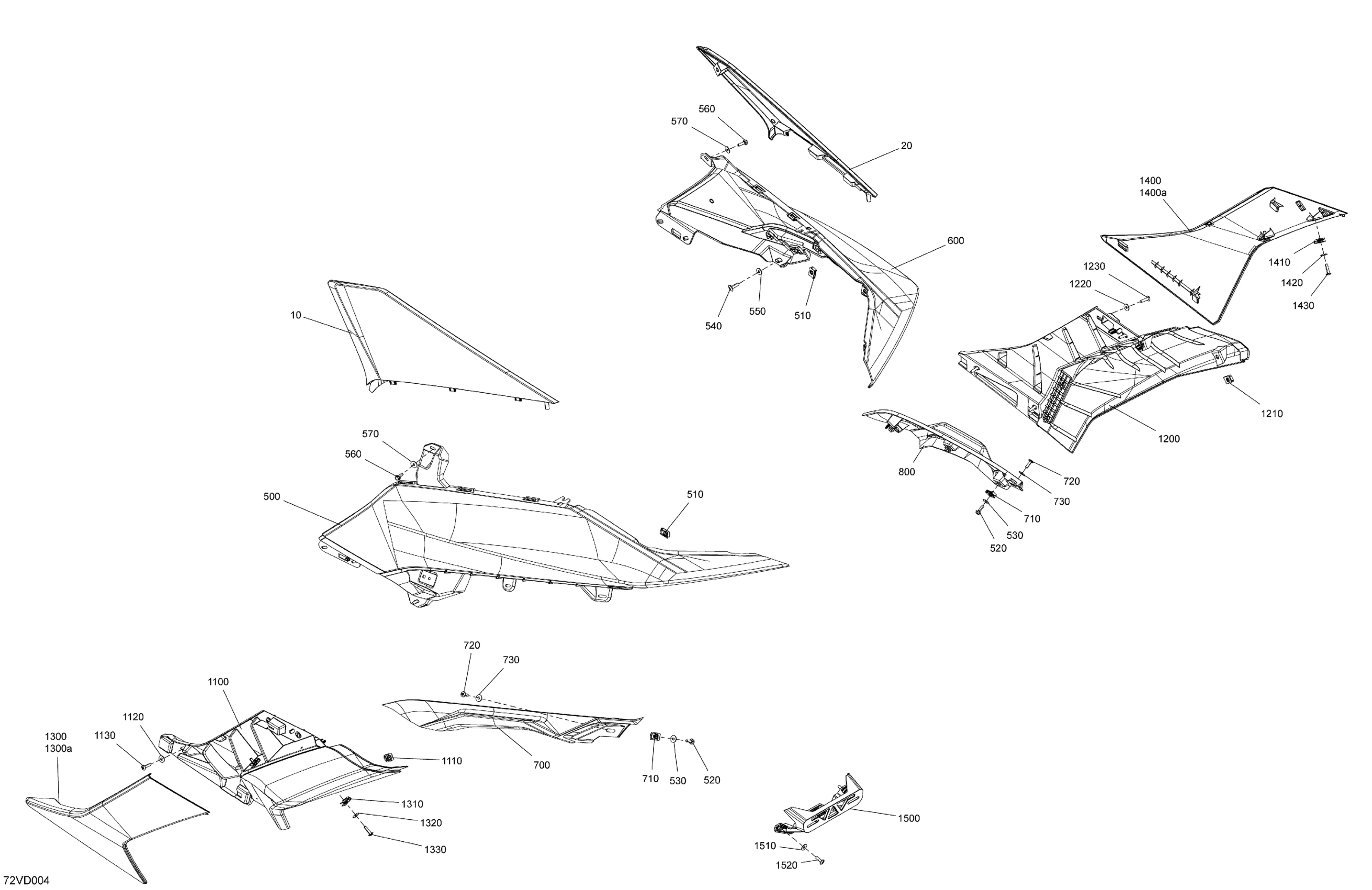

Can-Am CE - Maverick R 996NT - XRS - 7ARK - Neo Yellow - 77" Width SAS, 2024 Body - Rear Section Diagram

Description

Price

Deep Black, LH Exterior Body Panel

708303784

$95.49

Deep Black, RH Exterior Body Panel

708303785

$95.49

1100

LH Rear Mud Guard

705016469

$52.21

1110

Panel Nut M6 X 1.0

250100208

$1.22

1120

Stainless Steel Flat Washer

234062670

$2.00

1130

Torx Truss Screw M6 X 25

250000807

$2.00

1200

RH Rear Mud Guard

705016470

$52.21

1210

Panel Nut M6 X 1.0

250100208

$1.22

1220

Stainless Steel Flat Washer

234062670

$2.00

1230

Torx Truss Screw M6 X 25

250000807

$2.00

1300

Carbon Black, LH Lower Body Panel | Includes 1300 to 1300a

705015966

$355.94

1300a

LH Lower Molded Body Panel

705015540

$65.64

1310

Panel Nut M6 X 1.0

250100208

$1.22

1320

Stainless Steel Flat Washer

234062670

$2.00

1330

Torx Truss Screw M6 X 25

250000807

$2.00

1400

Carbon Black, RH Lower Body Panel | Includes 1400 to 1400a

705015967

$355.94

1400a

RH Lower Molded Body Panel

705015541

$65.64

1410

Panel Nut M6 X 1.0

250100208

$1.22

1420

Stainless Steel Flat Washer

234062670

$2.00

1430

Torx Truss Screw M6 X 25

250000807

$2.00

1500

License Plate Support

705017197

$11.87

1510

Stainless Steel Flat Washer

234062670

$2.00

1520

Torx Screw M6 X 20

250000722

$1.54

500

Carbon Black, LH Rear Fender

708304310

$368.63

510

Panel Nut M6 X 1.0

250100208

$1.22

520

Hex. Flange Screw M6 X 20

207662054

$0.96

530

Stainless Steel Flat Washer

234062670

$2.00

540

Torx Truss Screw M6 X 25

250000807

$2.00

550

Stainless Steel Flat Washer

234062670

$2.00

560

Hex. Flange Screw M6 X 20

207662054

$0.96

570

Stainless Steel Flat Washer

234062670

$2.00

600

Carbon Black, RH Rear Fender

708304311

$368.63

700

LH Rear Mud Guard

705015534

$52.21

710

Panel Nut M6 X 1.0

250100208

$1.22

720

Torx Screw M6 X 20

250000722

$1.54

730

Stainless Steel Flat Washer

234062670

$2.00

800

RH Rear Mud Guard

705015535

$52.21
