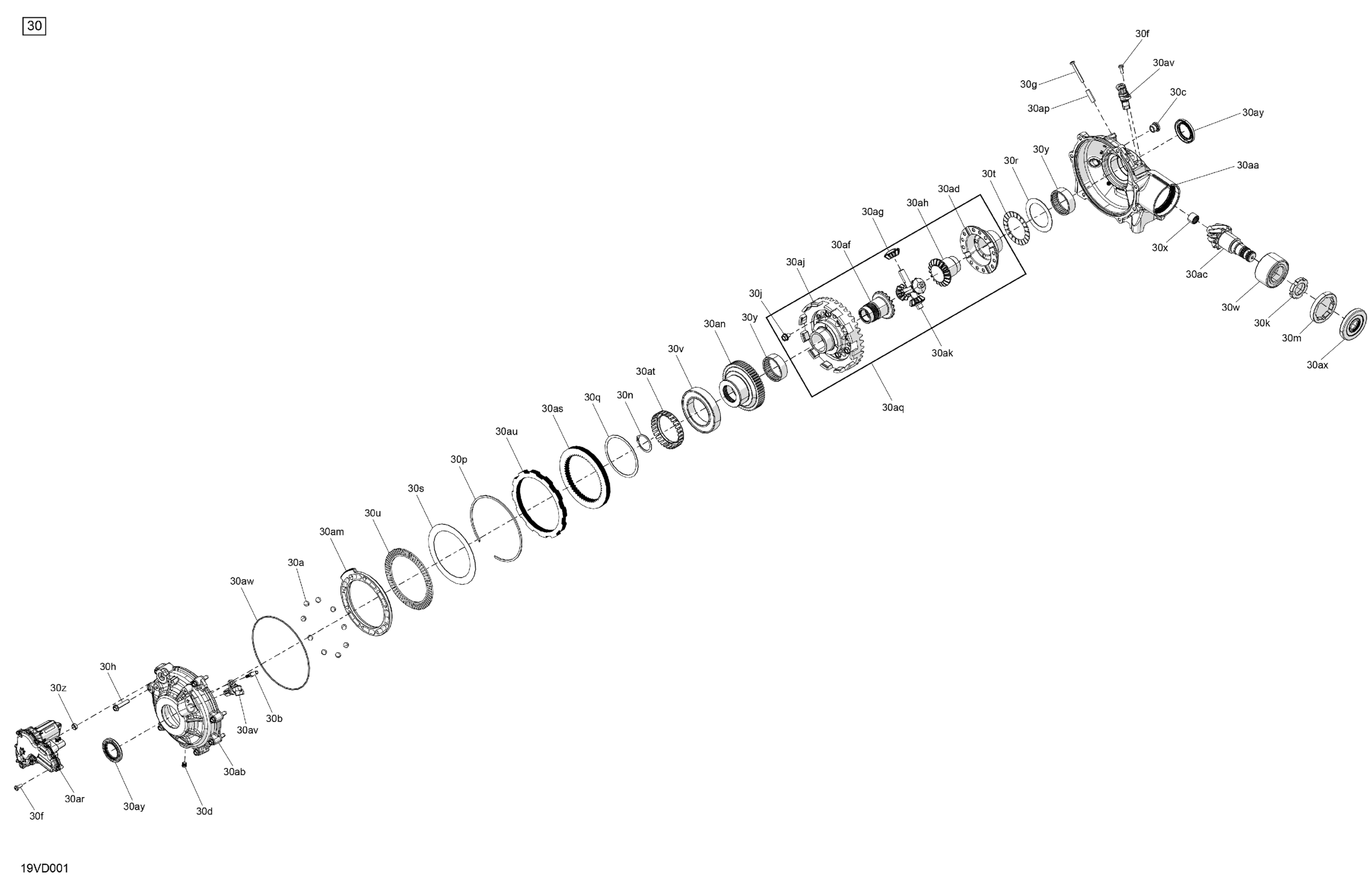

Can-Am CE - Maverick R 996NT - XRS - 7ARK - Neo Yellow - 77" Width SAS, 2024 Drive - Front - Differential Parts Diagram

Description

Price

Front Differential Ass'y | Includes 30 to 30az

705403620

$1,749.99

30a

Ball

715900564

$6.50

30b

Vent Hex. Screw M6

715900842

$20.99

30c

Fill Level Plug M18

715900843

Unavailable

30d

Fill Level Plug M10

715900563

$27.49

30f

Torx Screw M6 X 16

705402845

$11.05

30g

6 Lobe Screw Pan HD M6x1x50

715900844

$11.49

30h

Serrated Screw Flange Hd M81.25x38

715900845

$10.49

30j

Flange HD Screw M10x1.25x12

715900846

$10.49

30k

Pinion Nut M32

715900847

$15.99

30m

Pinion Nut M78

715900848

$23.99

30n

Retaining Ring, SH162

715900849

$15.49

30p

Retaining Ring, CFH-165

715900850

$18.49

30q

Shim 108.6 OD x 96 ID

715900851

$549.99

30r

Bearing Spacer

715900852

$299.99

30s

Thrust Plate

715900853

$204.99

30t

Needel Thrust Bearing 60x85x3

715900854

$30.49

30u

Needel Thrust Bearing 120x155x4

715900855

$61.49

30v

Ball Bearing 6014 70x110x20

715900856

$50.99

30w

Dac Bearing 407440W

715900857

$50.99

30x

Needle Bearing B-1110

715900858

$21.99

30y

Needle Bearing HK-5520

715900859

$21.99

30z

Plain Bearing 12.4x14.4x6

715900860

$43.49

30aa

Machined Case

715900861

$194.99

30ab

Machined Cover

715900862

$209.99

30ac

LH Pinion 10T, Spiral Bevel

715900863

$399.99

30ad

Machined Carrier

715900864

Unavailable

30af

LH Side Gear 18T

715900865

$119.99

30ag

Spider Gear 9T

715900866

$45.99

30ah

RH Side Gear 18T

715900867

$104.99

30aj

Gear 36T, Spiral Bevel

715900868

$339.99

30ak

Differential Pin

715900869

Unavailable

30am

Ball Ramp

715900870

$87.99

30an

Coupler

715900871

$116.49

30ap

Stand-Off Tube

715900872

$13.49

30aq

Differential Sub-Assembly

715900873

Unavailable

30ar

Actuator

715900874

$509.99

30as

Friction Plate Female

715900875

$16.99

30at

Tone Ring 30T

715900876

$18.49

30au

Friction Plate Male

715900877

$19.99

30av

Speed Sensor

715900878

$109.99

30aw

O-Ring

715900879

Unavailable

30ax

Seal Triple Lip 27.5x80.0x11.0

715900880

$47.49

30ay

Seal Triple Lip 40x60x7

715900881

$47.49
