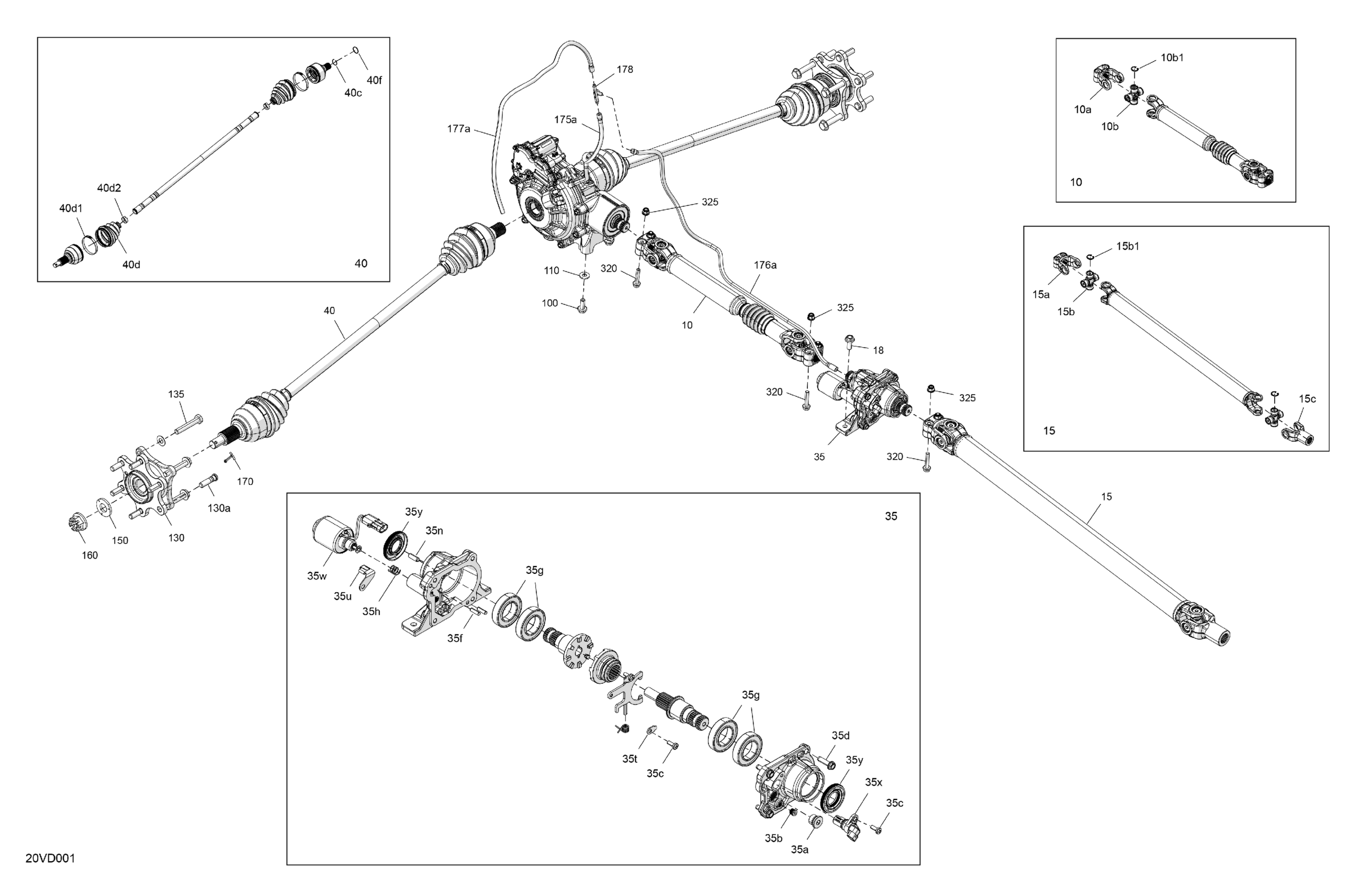

Can-Am CE - Maverick R 996NT - XRS - 7ARK - Neo Yellow - 77" Width SAS, 2024 Drive - Front - Common Parts Diagram

#

Description
Price

10

Drive Axle Ass'y | Includes 10 to 10b1

705403567

$249.20

10a

Yoke

715900969

$36.89

10b

Universal Joint Ass'y | Includes 10b to 10b1

715900908

$50.74

10b1

Circlip

715900909

$1.37

15

Drive Axle Ass'y | Includes 15 to 15c

705402448

$249.20

15a

Yoke

715900967

$36.89

15b

Universal Joint Ass'y | Includes 10b to 10b1

715900908

$50.74

15b1

Circlip

715900909

$1.37

15c

Yoke

715900968

$36.89

18

Hex. Flange Screw M10 X 25

207502546

$1.74

35

Clutch Ass'y | Includes 35 to 35y

705403619

$369.20

35a

Fill Level Plug

705501889

$18.43

35b

Fill Level Plug M10

715900563

$27.66

35c

Torx Screw M6 X 16

705402845

$10.14

35d

Bolt

705501886

$6.75

35f

Dowel Pin

715900559

$6.45

35g

Ball Bearing

705402847

$46.12

35h

Compression Spring

715900756

$12.68

35n

Vent Tube 1/4

715900887

$11.06

35t

Retainer Fork | Not Shown

715900766

$11.54

35u

Solenoid Clip Bracket

715900893

$13.83

35v

Vent Cap 5/16

715900533

$6.75

35w

Solenoid

715900894

$230.74

35x

Position Sensor

715900895

$110.74

35y

Triple Lip Seal 27.5X55.0X7.5

715900896

$46.12

40

CV Joint | Includes 40 to 40f

705402490

$230.74

40c

Circlip

715900924

$5.52

40d

Boot Kit, Wheel Side | Includes 230d to 230d2

715900450

$41.51

40d1

Oetiker Clamp, Large

715900455

$8.62

40d2

Oetiker Clamp, Small

715900456

$4.82

40f

O-Ring

715900925

$2.75

100

Hex. Flange Screw M10 X 25

207502546

$1.74

110

Conical Spring Washer 10 mm

234201474

$1.39

130

Front Wheel Hub Ass'y | Includes 130 to 130a

705403495

$156.89

130a

Wheel Stud

715900797

$3.68

135

Hex. Flange Screw Din.6921 M12X1.5X70

250001179

$3.11

150

Conical Spring Washer M20

250200170

$11.00

160

Castle Nut M20

250100193

$6.66

170

Cotter Pin

250400108

$5.19

175a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

176a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

177a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

178

Y-Fitting

293710059

$8.19

320

Hex. Flange Screw M8 X 42

250001050

$0.95

325

Hex. Elastic Flange Nut M8

233281416

$1.25
