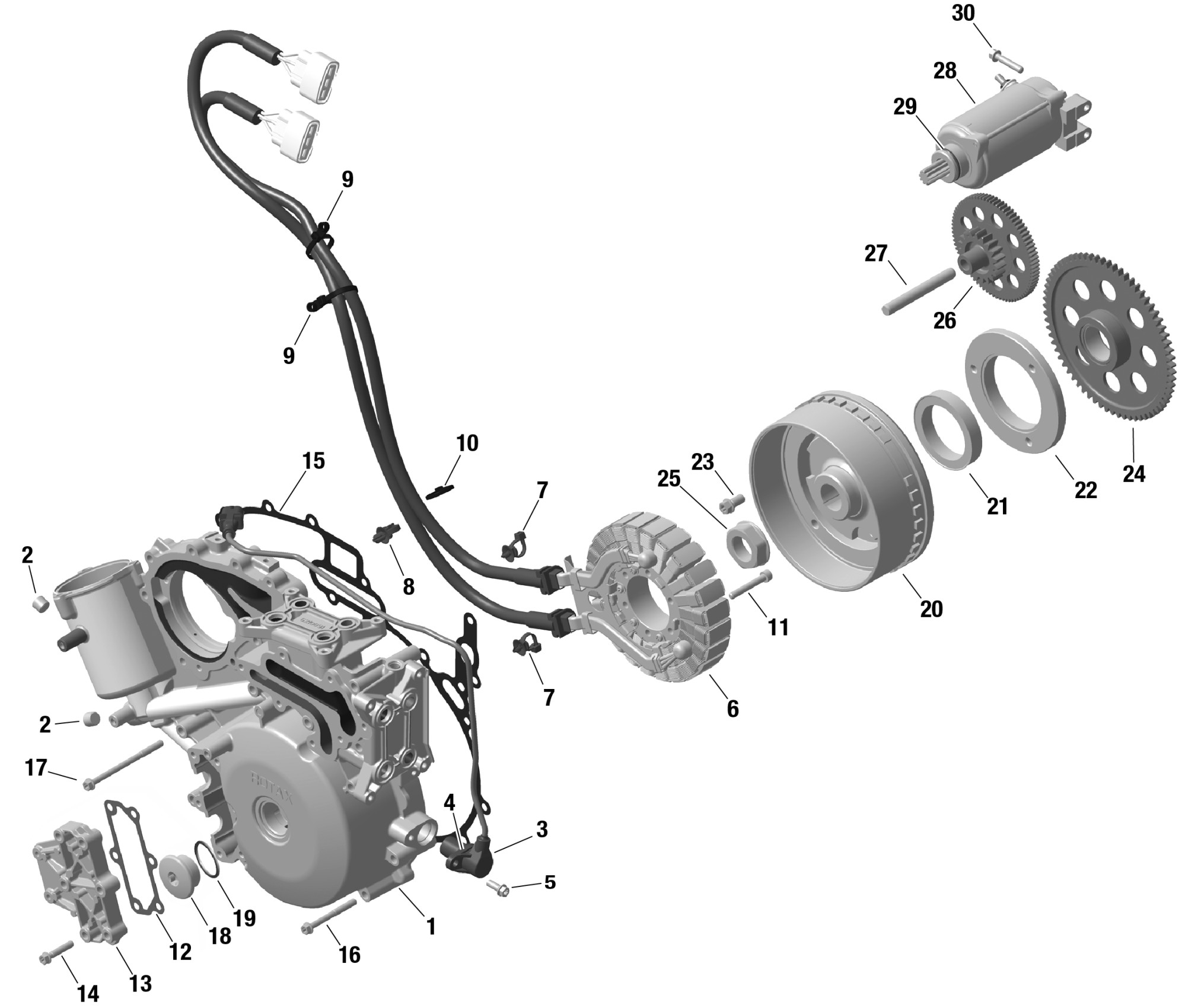

Can-Am CE - Maverick R 996NT - XRS - 7ARK - Neo Yellow - 77" Width SAS, 2024 ROTAX - Magneto and Electric Starter Diagram

Ignition Cover Ass'y | Includes 1-2

420686853

$479.99

Plug Screw M12x1,5

420840658

$7.51

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$109.99

O-Ring

420431580

$14.83

Torx Flange Screw M6 X 16

420440162

$3.17

Stator Ass'y 14V | Includes 6-9

420293982

$532.49

Tie-Rap With Mount

420951341

$7.65

Clipping Tie-Rap

710003840

$2.29

Tie Rap

515178191

$2.69

Tie Rap

420866714

$1.90

Allen Screw M6 X 40

420241956

$3.17

Gasket

420230029

$20.49

Cover

420810472

$17.27

Torx Flange Screw M6 X 30

420440647

$2.00

Gasket

420230017

$30.49

Torx Flange Screw M6 X 55

420440702

$3.06

Torx Flange Screw M6 X 85

420641228

$7.41

Plug Screw M30X1.5 | Includes 18-19

420641172

$14.22

O-Ring DIN 3771-28X2.6n NBR70 Cylinder Block Plug Screws

420631300

$10.33

MAG Flywheel W. Trigger Wheel Ass'y

420665232

$815.99

Sprag Clutch

420659113

$259.99

Sparg Clutch Housing

420659263

$154.99

Torx Flange Screw M8 X 16

420440854

$4.44

Free Wheel Gear Ass'y | Including 234060 Free Wheel Gear 67T and 632490 Needle Bearing 20x29x18

420634316

$110.99

Hex Nut

420242021

$7.73

Starter Double Gear 19/77 Teeth

420834911

$199.99

Needle Pin

420229307

$14.83

Electric Starter Ass'y

420294806

$265.99

O-Ring

420250145

$10.33

Torx Flange Screw M6 X 30

420440647

$2.00
