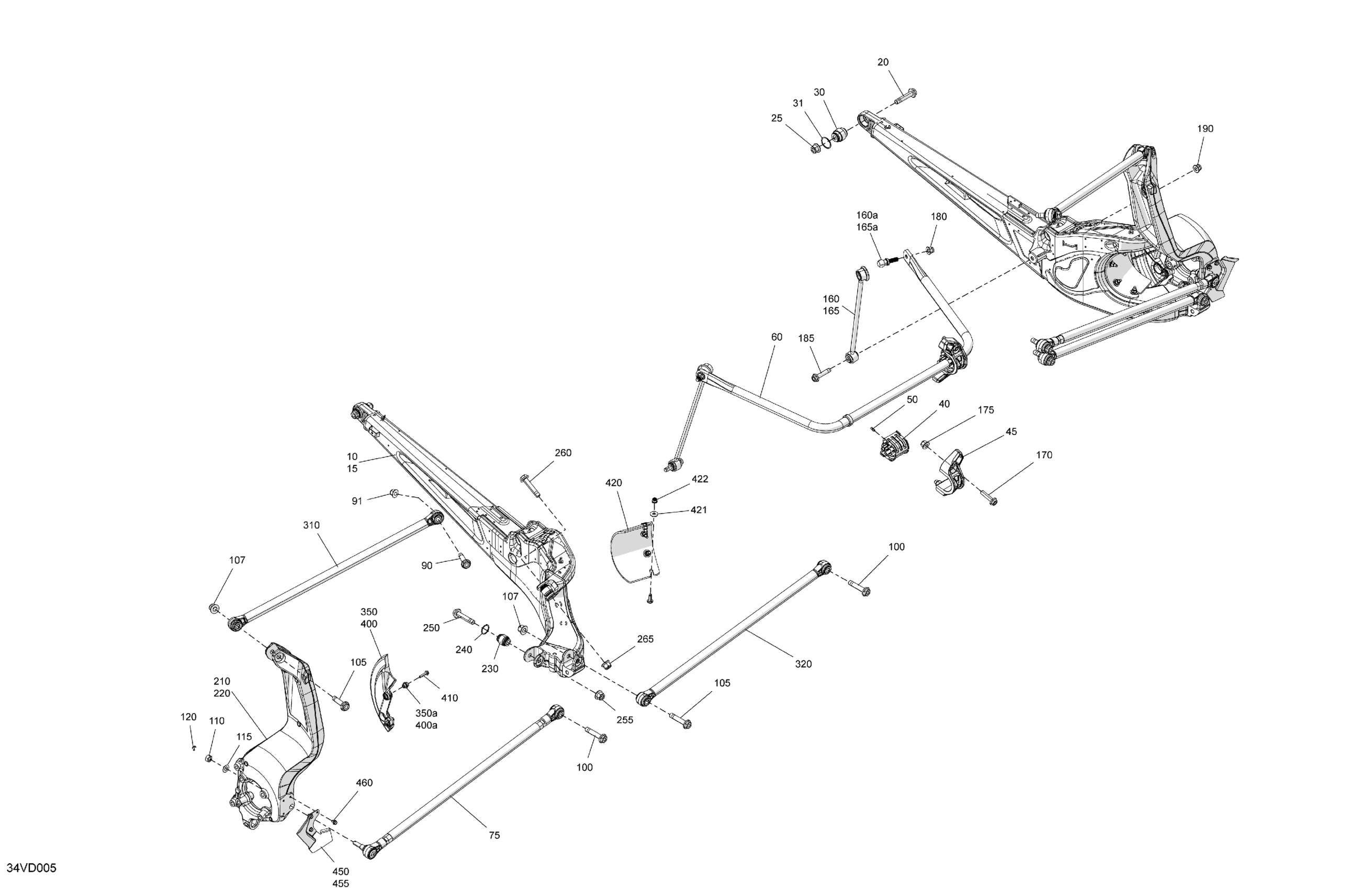

Can-Am CE - Maverick R 996NT - XRS - 7ARJ - Timeless Black Metallic - 77" Width, 2024 Suspension - Rear Components Diagram

#

Description
Price

10

Deep Black, LH Rear Suspension Arm

706006127

$423.99

15

Deep Black, RH Rear Suspension Arm

706006128

$423.99

20

Hex. Flange Screw Din.6921 M14X2X70

250001175

$7.41

25

Hex. Flange Elastic Nut M14

250001166

$12.71

30

Ball Joint

706005389

$48.49

31

Retaining Ring

293370166

$7.59

40

Stabilizer Bar Bushing

706005418

$12.65

45

Clamp

706004846

$15.49

50

Grease Fitting

408200700

$3.49

60

Stabilizer Bar Ass'y

706005757

$148.49

75

Central Suspension Arm Ass'y

706005030

$148.49

90

Hex. Flange Screw Din.6921 M14X2X70

250001175

$7.41

91

Hex. Flange Elastic Nut M14

250001166

$12.71

100

Hex. Flange Screw Din.6921 M14X2X70

250001175

$7.41

105

Hex. Flange Screw Din.6921 M14X2X70

250001175

$7.41

107

Hex. Flange Elastic Nut M14

250001166

$12.71

110

Hex Nut M12

250100239

$2.00

115

Hardened Washer

706200281

$2.85

120

Cotter Pin

211400017

$0.33

160

LH Stabilizer Link Bar | Includes 160 to 160a

706005360

$97.99

160a

Radial Joint

706002135

$43.49

165

RH Stabilizer Link Bar | Includes 165 to 165a

706005361

$97.99

165a

Radial Joint

706002135

$43.49

170

Screw Hex Flange M12 X 50

250001233

$6.56

175

Elastic Flange Nut M12

250001195

$2.64

180

Elastic Flange Nut M12

250001195

$2.64

185

Flange Screw M12 X 60

250000857

$7.41

190

Elastic Flange Nut M12

250001195

$2.64

210

LH Rear Knuckle Ass'y

715010038

$497.49

220

RH Rear Knuckle Ass'y

715010039

$497.49

230

Ball Joint | Not Shown

706004401

$44.99

240

Retaining Ring | Not Shown

293370165

$7.59

250

Hex. Flange Screw Din.6921 M14X2X70

250001175

$7.41

255

Hex. Flange Elastic Nut M14

250001166

$12.71

260

Hex. Flange Screw Din.6921 M14X2X70

250001175

$7.41

265

Hex. Flange Elastic Nut M14

250001166

$12.71

310

Upper Suspension Arm Ass'y

706005031

$121.99

320

Lower Suspension Arm Ass'y

706005032

$121.99

350

LH Rear Guard | Includes 350 to 350a

706004631

$36.99

350a

Spacer

706004805

Unavailable

400

RH Rear Guard | Includes 400 to 400a

706004632

$36.99

400a

Spacer

706004805

Unavailable

410

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44

420

CV Joint Guard

706005486

$18.49

421

Stainless Steel Flat Washer

234082670

$2.11

422

Elastic Flange Nut M8

233281464

$1.01

450

LH Deflector

706004703

$16.99

455

RH Deflector

706004704

$16.99

460

Flange Screw M6 X 10, Scotch Grip

207561044

$7.19
