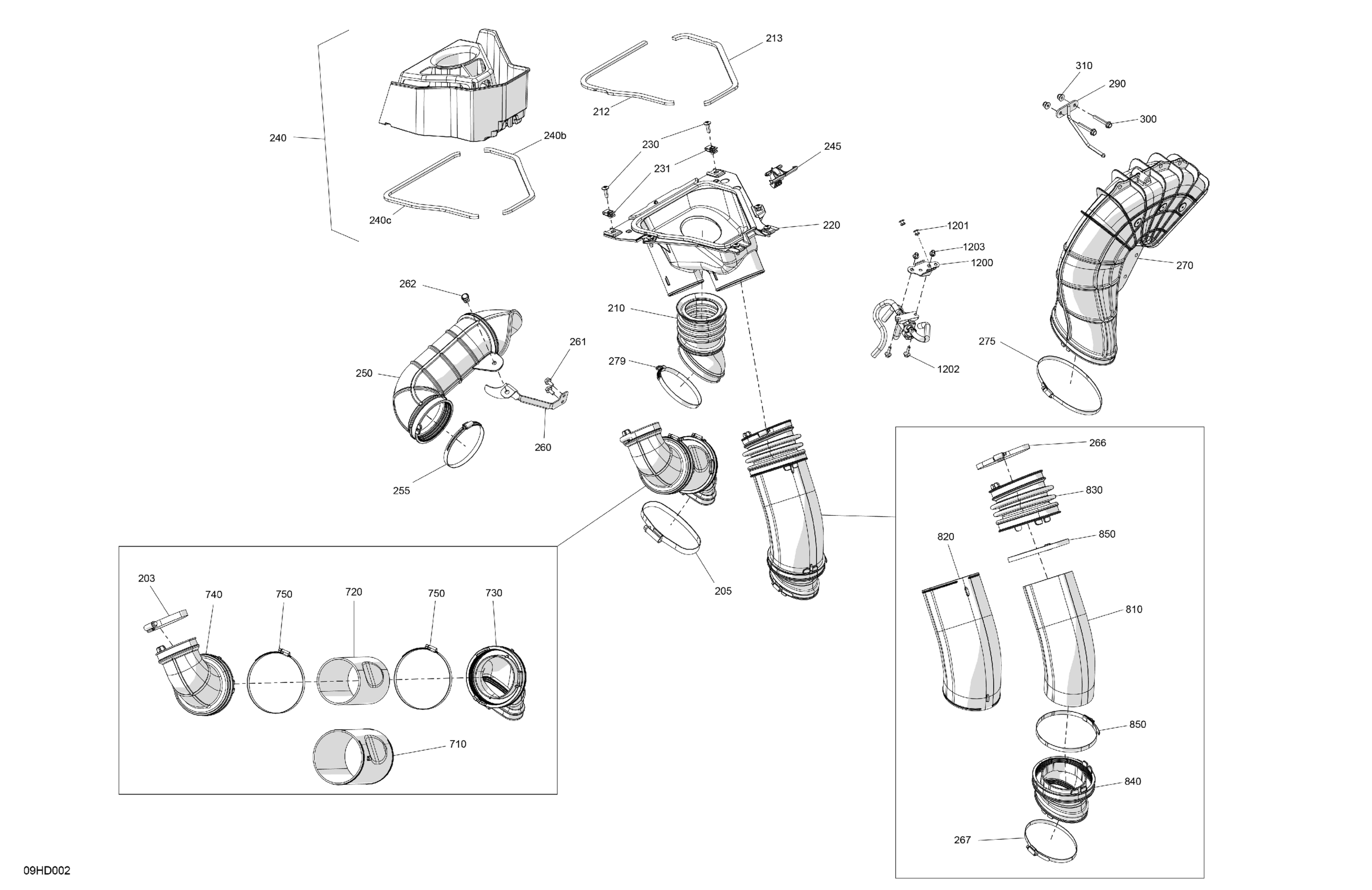

Can-Am CE - Maverick MAX Turbo RR - XRS Smart Shock - 9NRN - Fiery Red Metallic - 72" Width SAS, 2024 Engine - Air Duct Diagram

Description

Price

203

Norma Clamp

514052924

$10.58

205

Norma Clamp

514052924

$10.58

210

Hose

707800861

$16.12

212

Seal

706600137

$39.97

213

Seal

706600138

$34.58

220

Adaptor

706600129

$44.58

230

Torx Screw M6 X 20

250000722

$1.34

231

Panel Nut M6 X 1.0

250100198

$1.73

240

CVT Filter | Includes 240 to 240c

706600416

$59.97

240b

Seal

706600136

$39.97

240c

Seal

706600139

$34.58

245

Latch

708000909

$5.89

250

Front Outlet Duct

706600078

$27.66

255

Norma Gear Clamp

514052983

$11.43

260

Front Hose Support

706600444

$15.22

261

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

262

Tuflok Plastic Rivet

293150230

$1.21

266

Norma Gear Clamp

514052983

$11.43

267

Norma Gear Clamp

514052983

$11.43

270

Rear Outlet Duct

706600081

$96.89

275

Gear Clamp (Norma)

514052861

$7.80

279

Norma Clamp

514052924

$10.58

290

Rear Duct Support

707003352

$11.98

300

Hex. Flange Screw M6 X 40

207664044

$2.18

310

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

710

CVT Cooling Duct

706600337

$55.35

720

Acoustic Insulation

706600343

$41.51

730

Hose

706600389

$18.43

740

Hose

706600390

$12.91

750

Gear Clamp (Norma)

514052861

$7.80

810

CVT Cooling Duct

706600338

$55.35

820

Insulating Acoustic

706600344

$41.51

830

Hose

706600391

$12.91

840

Hose

706600392

$12.91

850

Gear Clamp (Norma)

514052861

$7.80

1200

Boost Valve Support

707002496

$2.75

1201

Pop Rivet 3/16" | DS 650 X

390402000

$0.28

1202

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$4.12

1203

Insert

250100219

$1.91
