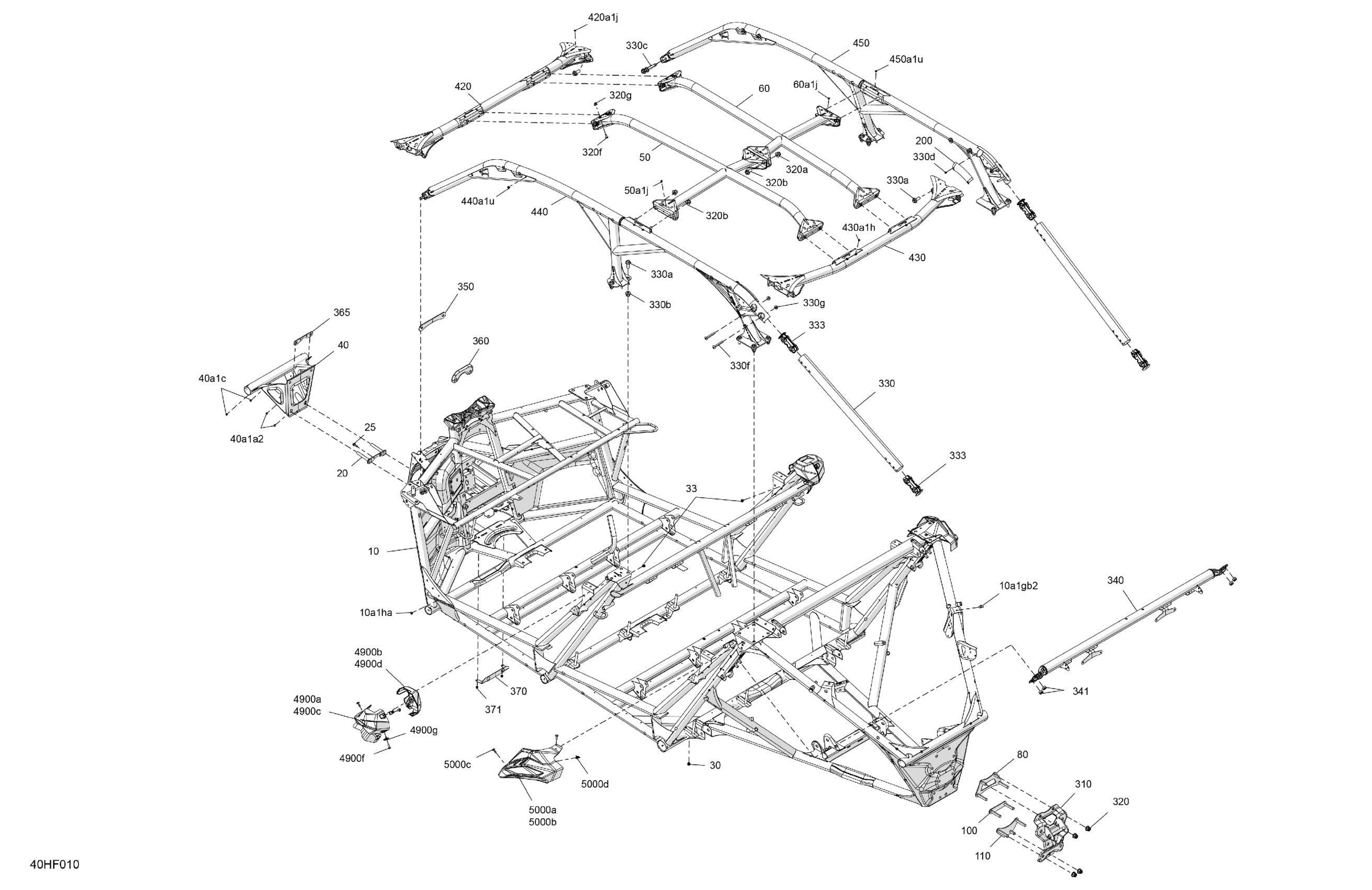

Can-Am CE - Maverick Max - TURBO RR - XRS SAS - 9NT2 - Dusty Navy Satin - 72" Width, 2026 Frame - System Diagram

#

Description
Price

10

Deep Black, Chassis

705212830

Unavailable

10a1gb2

Nut M6

250100059

$1.68

10a1ha

Pop Rivet 3/16 X ,425

293150293

$0.35

20

Front Plate

705211898

$21.99

25

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

30

Insert Half Hex Body M6 x 1.0

250100199

$3.19

33

Insert Half Hex Body M6 x 1.0

250100199

$3.19

40

Front Bumper Ass'y

715008516

$253.99

40a1a2

Pop Rivet 3/16 X ,425

293150293

$0.35

40a1c

Pop Rivet 3/16 X ,425

293150293

$0.35

50

Deep Black, LH Reinforcement Cage | Includes 50 to 50a1j

705210077

$91.99

50a1j

Pop Rivet 3/16 X ,425

293150293

$0.35

60

Deep Black, RH Reinforcement Cage | Includes 60 to 60a1j

705210079

$91.99

60a1j

Pop Rivet 3/16 X ,425

293150293

$0.35

80

Rear Upper Plate

705211557

$20.99

100

Rear Central Plate

705211558

$20.99

110

Rear Lower Plate

705211556

$18.49

200

Deep Black, Upper Plate Kit

705211599

$25.99

310

Junction Plate Ass'y

715008517

$77.99

320

Elastic Flange Nut M12

250001195

$2.64

330

Deep Black, Rear Pillar

705210066

$24.99

333

Sleeve

705210648

$9.90

340

Safety Belt Anchorage

705212141

$124.99

341

Elastic Stop Nut M12

232521416

$1.69

350

Connecting Plate

705211552

$5.39

360

Retaining Plate

705210249

$5.29

365

Front Plate

705211553

$2.69

370

Support

705211560

$14.49

371

Pop Rivet 3/16 X ,425

293150293

$0.35

420

Deep Black, Front Cross Member | Includes 420 to 420a1j

705210068

$204.99

420a1j

Pop Rivet 3/16 X ,425

293150293

$0.35

430

Deep Black, Rear Cross Member | Includes 430 to 430a1h

705210070

$204.99

430a1h

Pop Rivet 3/16 X ,425

293150293

$0.35

440

Deep Black, LH Cage

705210082

Unavailable

440a1u

Pop Rivet 3/16 X ,425

293150293

$0.35

450

Deep Black, RH Cage

705210083

Unavailable

450a1u

Pop Rivet 3/16 X ,425

293150293

$0.35

320a

Elastic Flange Nut M12

250001195

$2.64

320b

Hex. Flange Screw DIN.6921 M12X25

250000856

$6.67

320f

Torx Head Screw M6 X 16

250000717

$2.11

320g

Hex. Flange Elastic Nut M6

233261466

$2.00

330a

Hex. Flange Screw M12 X 30, Scotch Grip

207523056

$6.14

330b

Elastic Flange Nut M12

250001195

$2.64

330c

Flange Screw M12 X 60

250000857

$7.41

330d

Black, Pop Rivet 3/16 X ,425

293150300

$0.72

330f

Torx Truss M8 X 65

250000901

$1.90

330g

Elastic Flange Nut M8

250100025

$1.48

4900a

LH Central Cage Trim

705015489

$35.99

4900b

LH Central Cage Trim

705014860

$35.99

4900c

RH Central Cage Trim

705015490

$35.99

4900d

RH Central Cage Trim

705014862

$35.99

4900f

Torx Screw M6 X 20

250000722

$1.68

4900g

Panel Nut M6 X 1.0

250100198

$2.11

5000a

LH Rear Cage Trim

705010335

$35.99

5000b

RH Rear Cage Trim

705010336

$35.99

5000c

Torx Screw M6 X 20

250000722

$1.68

5000d

Clip

293650268

$0.73
