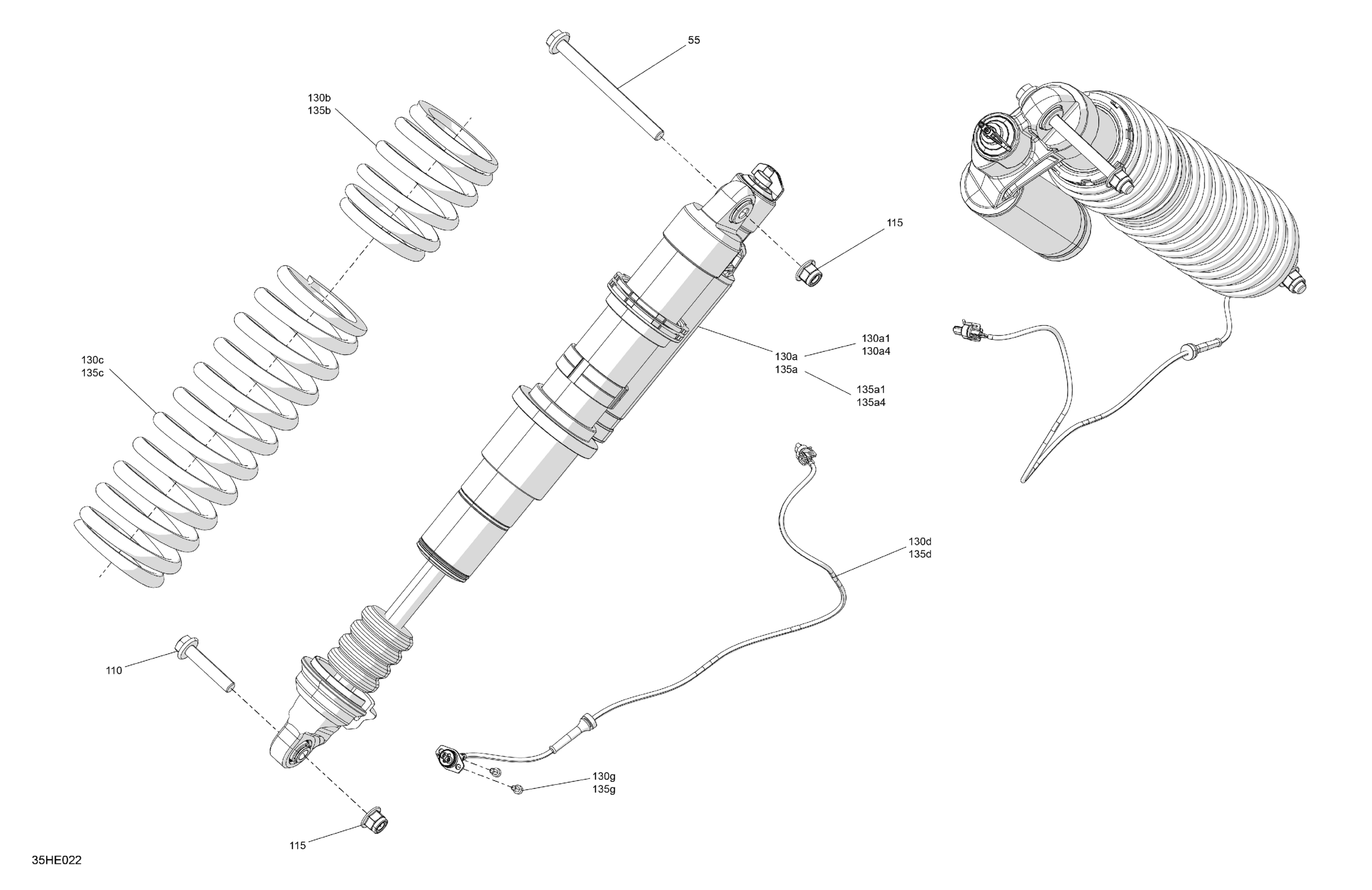

Can-Am CE - Maverick MAX - TURBO RR - XRS SAS - 9NSN - Fiery Red Metallic - 72" Width - 2025 Suspension - Front Shocks Diagram

Description

Price

Flange Screw M12 X 145

250000861

$5.47

110

Flange Screw M12 X 60

250000857

$6.08

115

Elastic Flange Nut M12

250001195

$2.15

130a

LH Front Adjustable Shock Absorber | Includes 130a to 130a4

706206346

$1,569.99

130a1

Connector Support

706203583

$12.91

130a4

Anchorage

706204583

$14.75

130b

Deep Black, Compression Spring

706205339

$96.89

130c

Deep Black, Compression Spring

706205350

$147.66

130d

Front Suspension Wiring Harness Ass'y

710006388

$216.89

130g

Socket Head Screw M5 X 10

205551060

$1.30

135a

RH Front Adjustable Shock Absorber | Includes 135a to 135a4

706206347

$1,569.99

135a1

Connector Support

706203583

$12.91

135a4

Anchorage

706204583

$14.75

135b

Deep Black, Compression Spring

706205339

$96.89

135c

Deep Black, Compression Spring

706205350

$147.66

135d

Front Suspension Wiring Harness Ass'y

710006388

$216.89

135g

Socket Head Screw M5 X 10

205551060

$1.30
