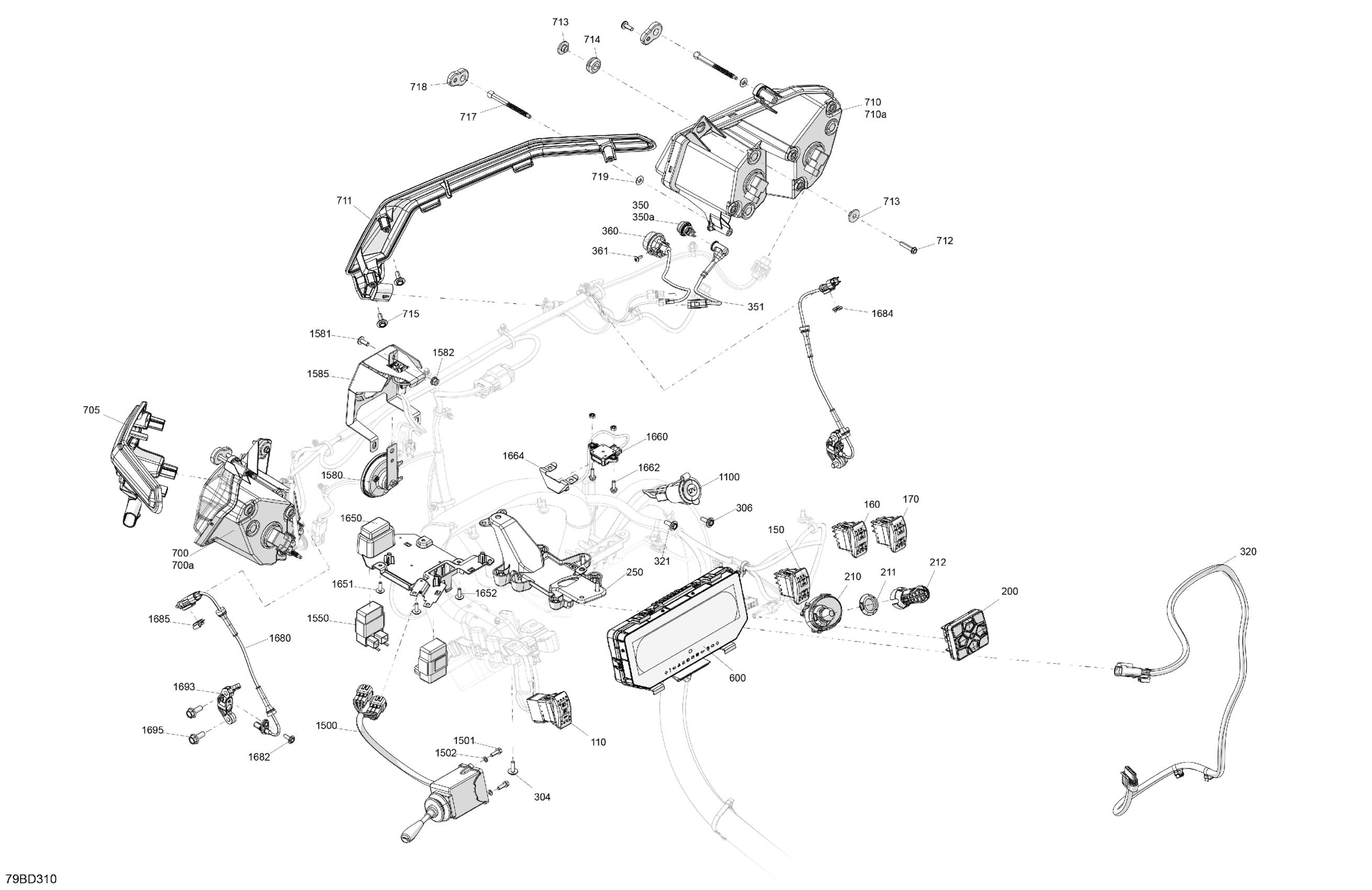

Can-Am CE - Maverick MAX Sport 1000R - DPS - 9JRC - Fiery Red Metallic - 60" Width ABS, 2024 Electric - Front Section Diagram

Description

Price

110

Hazard Lights Switch

710006107

$17.88

150

Switch 2X4

710005489

$29.82

160

Differential Lock Switch

710005470

$42.51

170

Switch HDC

710006553

$22.36

200

Multifonction Switch

710006650

$81.31

210

Terminal DESS One Wire

515179305

$69.37

211

Specialized Nut

278004274

$3.12

212

Grey Key RFID | Except Model Europe, Except T3

710004964

$53.70

214

Start-Stop Button | Not Shown

710005213

$55.94

250

Housing Support

710005672

$7.81

304

Screw PT Type K-50 X 16

250000959

$2.00

306

Screw PT Type K-50 X 16

250000959

$2.00

320

Trottle Pedal Harness

710005929

$211.91

321

Screw PT Type K-50 X 16

250000959

$2.00

350

Day Light | Europe

710001726

$32.81

350a

Not Available As Spare Parts

XXX

Unavailable

351

Position Light Harness

710005676

$12.61

360

Flasher | Europe

710002964

$34.30

361

Torx Truss Screw M6 X 16

250000721

$1.60

600

MID Multifunction Gauge

710008295

$336.54

700

LH Headlamp | Includes 700 to 700a

710008230

$177.58

700a

Bulb 12V 55W

715900141

$38.78

705

LH Fascia Trim

705011485

$39.52

710

RH Headlamp | Includes 710 to 710a

710008231

$177.58

710a

Bulb 12V 55W

715900141

$38.78

711

RH Fascia Trim

705011486

$39.52

712

Hex. Flange Screw K50 X 2.24 X 25

241152540

$4.15

713

Shoulder Bushing

710004749

$2.69

714

Overmolded Grommet

293720130

$4.25

715

Screw PT Type K-50 X 16

250000959

$2.00

717

Ajustment Screw

710005837

$5.90

718

Ball Socket

293900157

$7.88

719

O-Ring

293300192

$3.81

1100

12V Power Outlet

710005374

$31.31

1500

Turn Signal | Europe

710001721

$187.28

1501

Hex. Forming Screw M5 X 16

210251650

$1.06

1502

Lock Washer 5 mm | Europe

234151401

$0.52

1550

Flasher Unit

710003239

$73.10

1580

Horn

710004791

$36.54

1581

Torx Truss Screw M6 X 16

250000721

$1.60

1582

Hex. Flange Elastic Nut M6

233261494

$1.45

1585

Horn Bracket

710006055

$58.93

1650

Support Connector

710006056

$4.85

1651

Screw PT Type K-50 X 16

250000959

$2.00

1652

Screw PT Type K-50 X 16

250000959

$2.00

1660

Yaw Rate Sensor

710005658

$158.18

1662

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.00

1664

Yaw Sensor Support

710006501

$31.31

1680

Speed Sensor

710006981

$75.34

1682

Screw PT Type K-50 X 16

250000959

$2.00

1684

Clip Bracket Connector (edge)

409210100

$1.94

1685

Clip

710001038

$4.96

1693

ABS Sensor Support

710008185

$8.57

1695

Hex Screw Washer Head M8 X 20

207582054

$3.00
